Linking Device Display Status
The display of the linking device provides status and diagnostic data in one of
three page formats: main page, PA master page, or field device page. Use the Page
button behind the front cover to scroll through the pages (see
for location of the Page button).

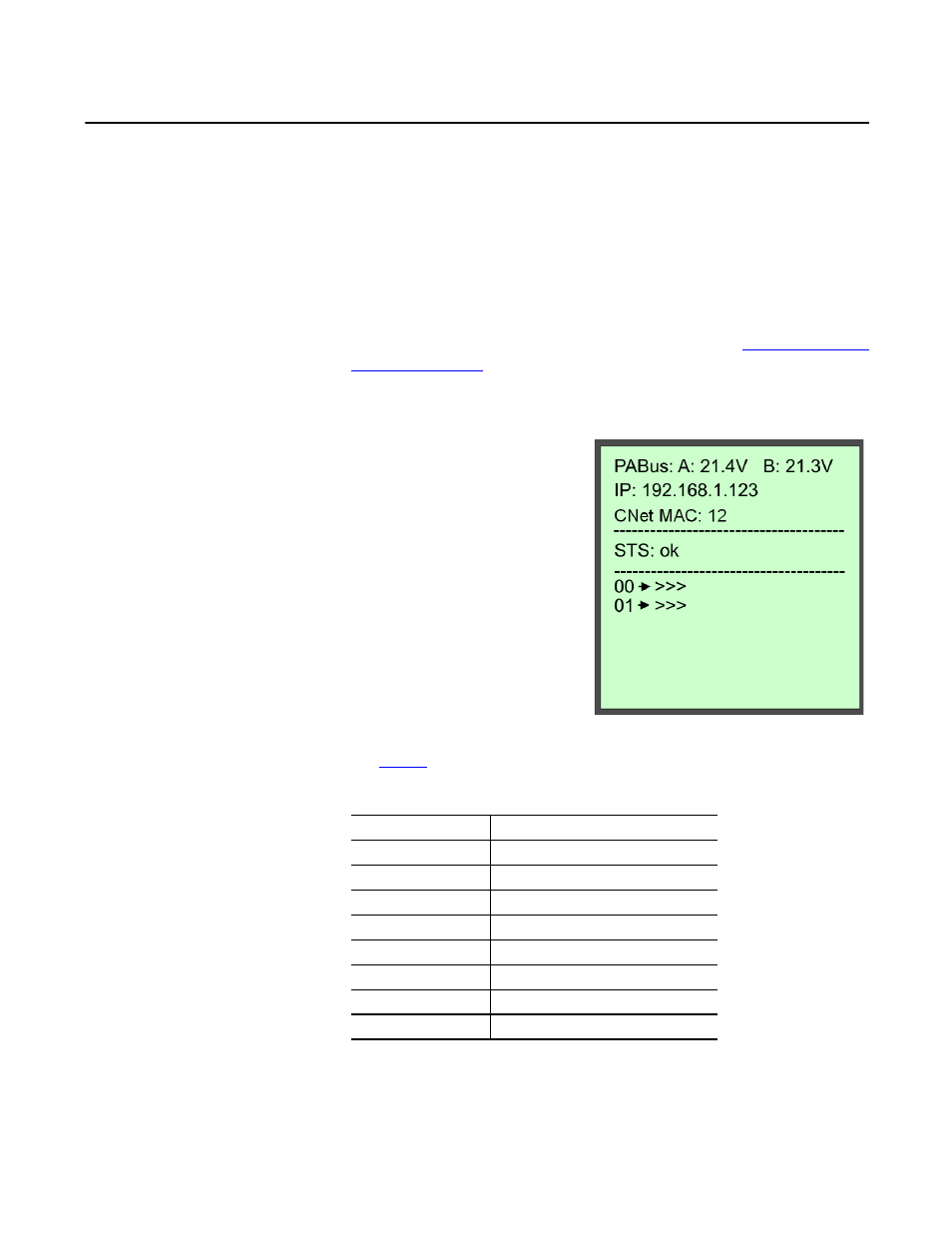

Main Page
The main page is the default
display. The linking device returns
to this page after 10 seconds.
PA Bus A/B:
Displays the bus
voltages on each port.
IP:
Displays the current IP address
or BOOTP if enabled.
CNet MAC:
Displays the current
ControlNet node address
(1788-CN2PAR linking device
only).
STS:
Displays the status
(see
Table 7
).
Table 7 - STS Status Descriptions
Status Message
Description
ok
No events.
new device found
A new field device is on the bus.
redundancy ok
Masters are synchronized.
redundancy err
The master linking devices are out of sync.
bus A tripped
PA bus A has tripped because of over current.
bus B tripped
PA bus B has tripped because of over current.
SAFE MODE
The linking device has been set into safe mode.
not owned
No connection to a Logix controller.
