Chapter 2
Set Up in the Studio 5000 Logix Designer Application
Valve Positioner
Configuration
A valve positioner typically has only one slot that has multiple predefined inputs
and outputs. Consult the user manual for the device to verify the definition for
each option. One basic option is to configure the valve positioner to receive a
setpoint from the ControlLogix controller via the linking device and to return
the defined position.
Follow these steps for setting the valve positioner.
1.

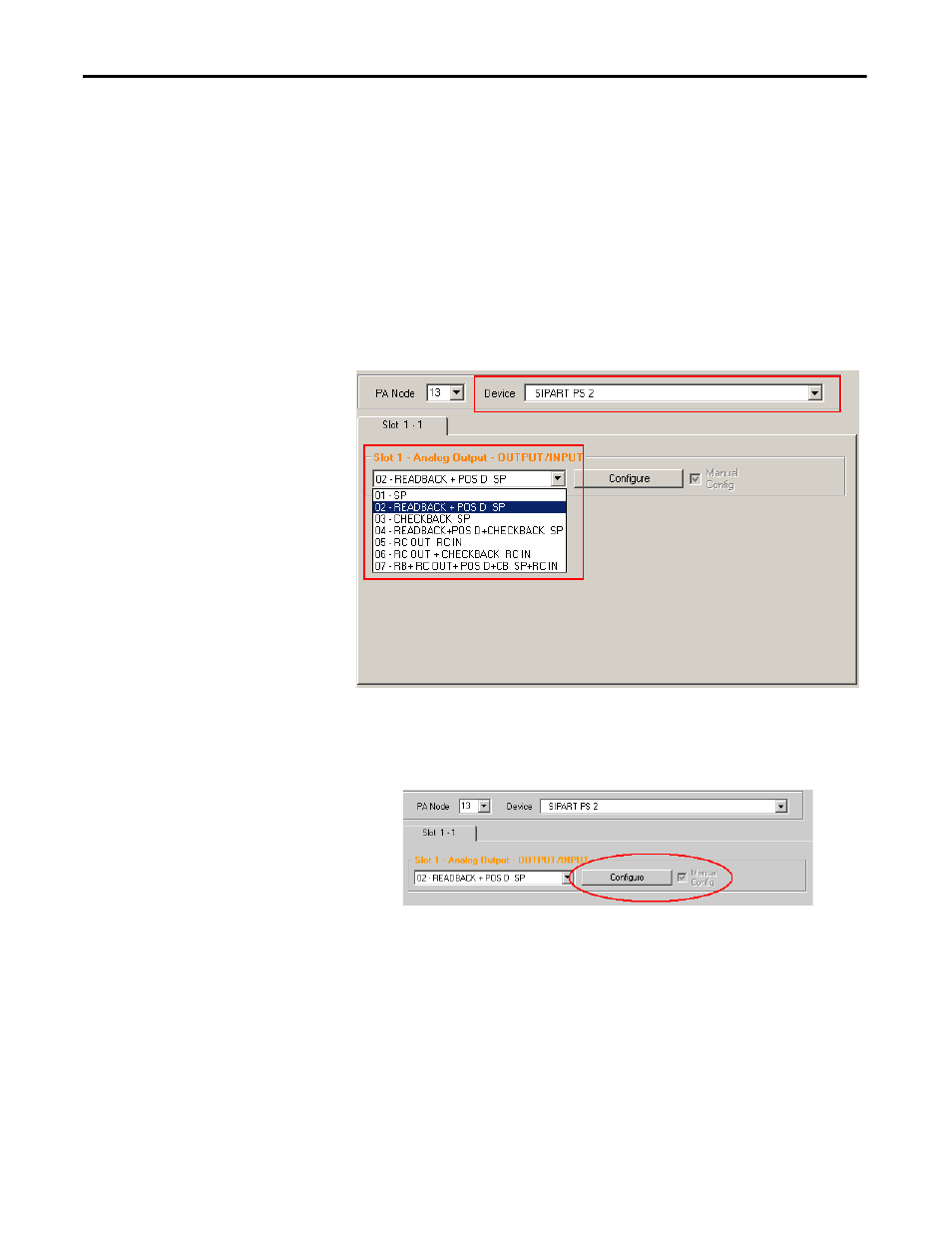

From the Device pull-down menu, choose the device that you want to
configure.
2.
From the Slot pull-down menu, choose the output/input option for the
valve positioner.
After you choose an output/input option, a Configure button replaces the
data format option and the Manual Config option is checked.
3.
Click the Configure button.
The Slot Configuration dialog box opens.
