Display Screen
Overview
The HC-DySC® touch screen display is a window to voltage sags and HC-DySC
protection. The display provides system status, voltage sag notification and
history, runtime statistics and system history in a simple and intuitive touch-
based user interface.
When the system first starts, a welcome screen displaying the HC-DySC product
logo appears. This screen disappears after 5 seconds, when the “Home” screen
appears.
Note: The touch screen is optimized for use with a plastic stylus or bare finger.
At installation time perform the following
steps to configure your system:
Step 1: Press the “CONFIG” button
at the bottom of the “HOME” screen
(See
Figure 10 ).

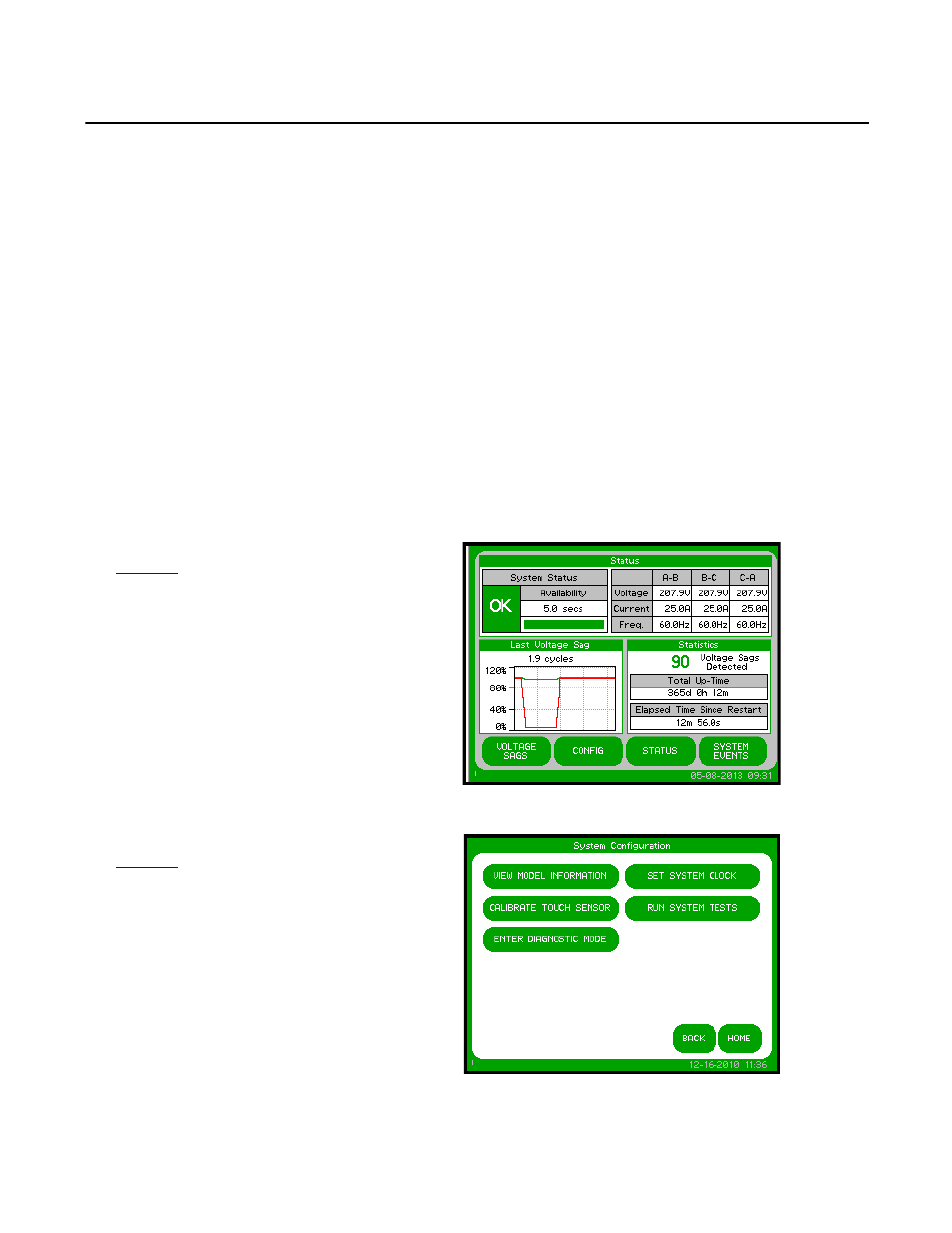

Figure 10 - Home Screen
Step 2: Begin calibration by pressing
“CALIBRATE TOUCH SENSOR”
(See
Figure 11 ).
Figure 11 - System Configuration
