ArcShield Plenum Installation Instructions
Appendix B
The “End Cover Plate” must be mounted on the closed end of the Line-up at this
time during the assembly using 5/16 in. hardware (see
Left side).
STEP 4 – Closing the Front of
the Plenum Sections
After the first stage of the Plenum assemblies have been mounted, the Plenums
can then be “closed-up” by replacing the front duct sections as shown in
.

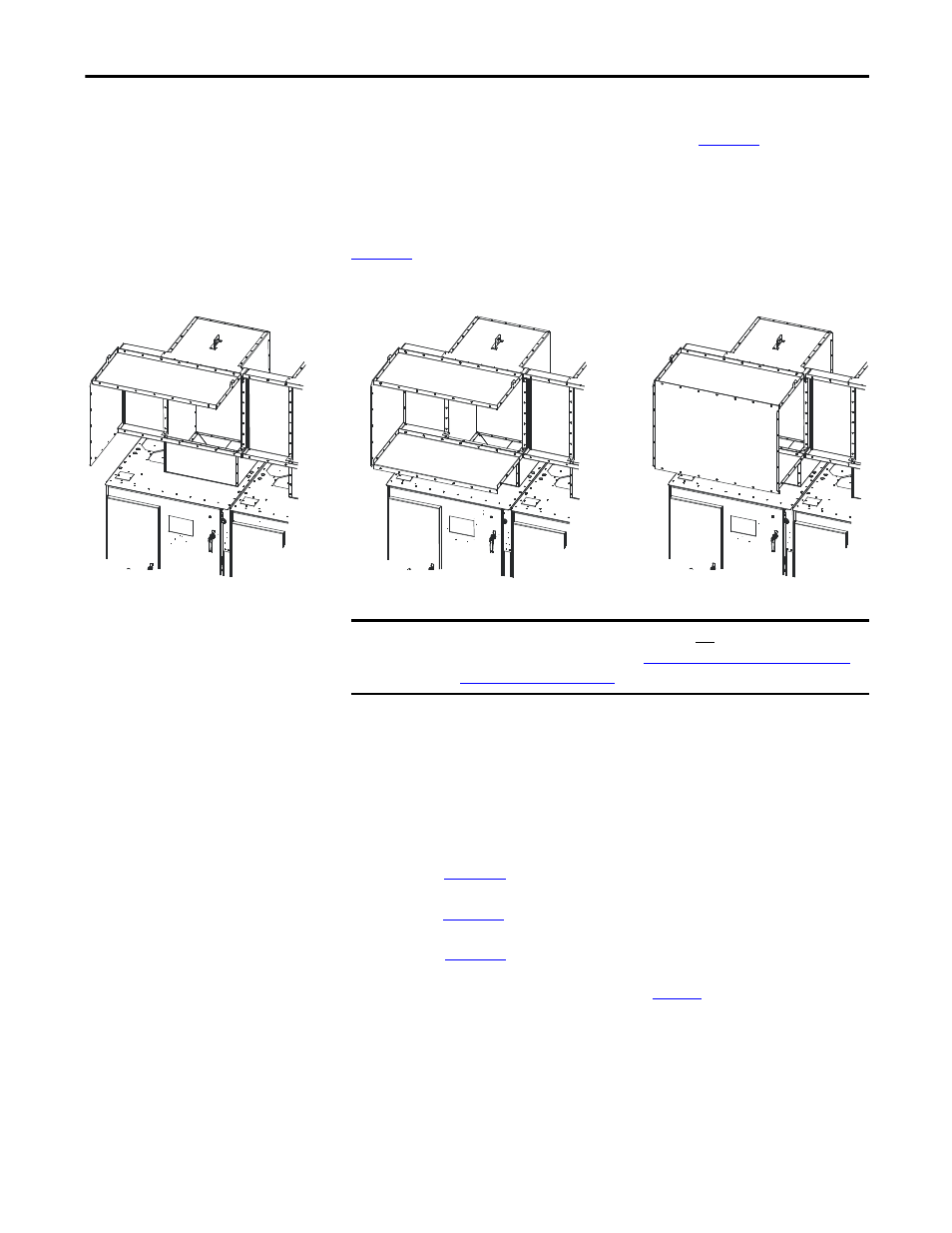

Figure 78 - Plenum Sections
STEP 5 – Extension and Elbow
Assembly
The 36" Extension components and 90° Elbow Section are to be attached using
5/16-in. hardware in the following sequence:
Step 5B – See
Top Plate
Bottom Plate
Front Closing P
late
IMPORTANT
Do not re-install the front duct section of the last Plenum on the exhaust side
of the Line-up at this time (refer to
STEP 6 – Mounting Extension/Elbow to
for more information).
TIP
Use silicone caulking generously to fill any air gaps once the Plenum has been
securely mounted in place.
