62 Rockwell Automation Publication 1512A-UM100F-EN-P - May 2013
Chapter 5 Maintenance
1. Remove the two 1/4-20 self-tapping screws from the Z-clip and remove
the Z-clip from the edge of the MV door.

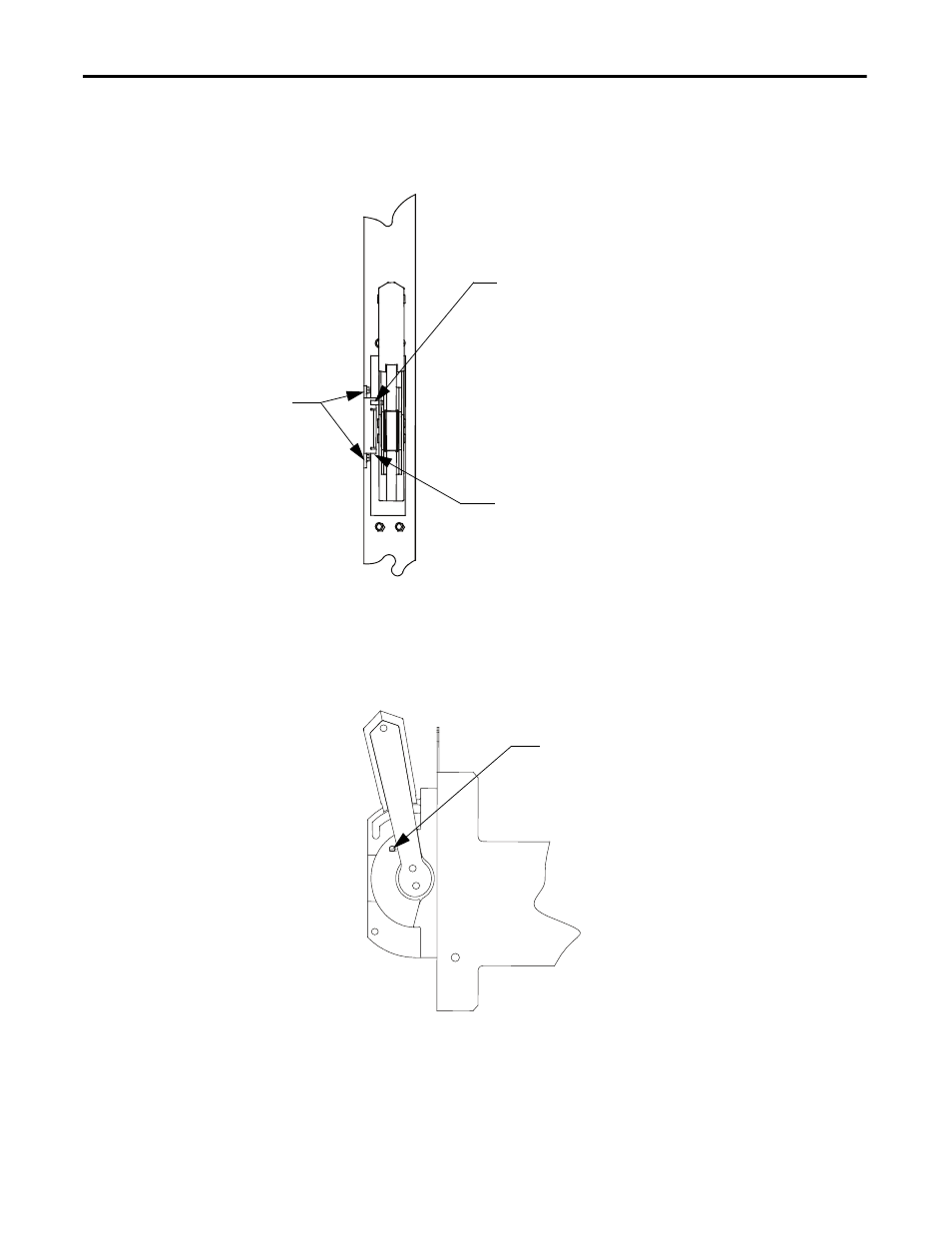

Figure 62 - Z-clip Assembly
2. Loosen the two door locking bolts.
3. Use a flat-headed screwdriver to turn the defeater pin on the right side of
the isolation switch handle.
Figure 63 - Defeater Pin
4. Open the power cell door.
If it is possible to move the isolation switch handle to the OFF position for
reassembly, follow steps 5-10.
Remove 1/4-20
self-tapping screws
Handle Pin
Remove Z-clip
Defeater Pin
