22 Rockwell Automation Publication 1512A-UM100F-EN-P - May 2013
Chapter 3 Installation – Arc-Resistant (ArcShield)

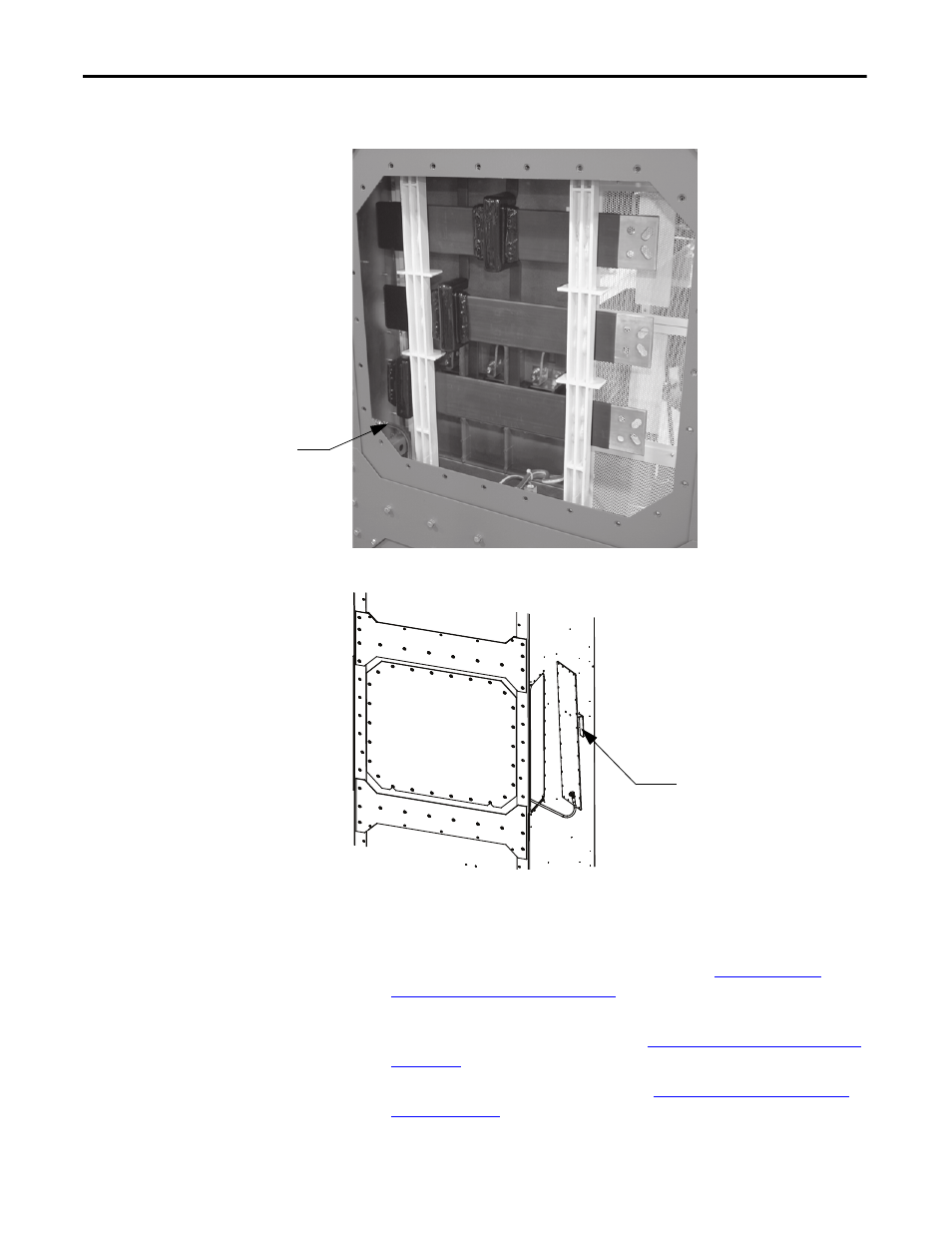

Figure 25 - Side Bus Access Cover Ground Connection (Rear Access Cover removed to show
connection point)
Figure 26 - ArcShield Ground Plate
Front Access – Bottom Incoming Cables (Bottom Entry/Exit)
1. Complete the Power Lock-out Procedure (refer to Power Lock-out
Procedure on page 41 of Chapter 5 ) for both the medium voltage power
cell and the power bus.
2. Open the low voltage cell door (refer to Opening the Low Voltage Doors
on page 15 ).
3. Open the medium voltage door (refer to Opening the Medium Voltage
Door on page 16 ).
Side Bus Access
Cover Ground
Connection
Removable Handle
