Appendix D – CE Conformity
D-4
MECHANICAL CONFIGURATION

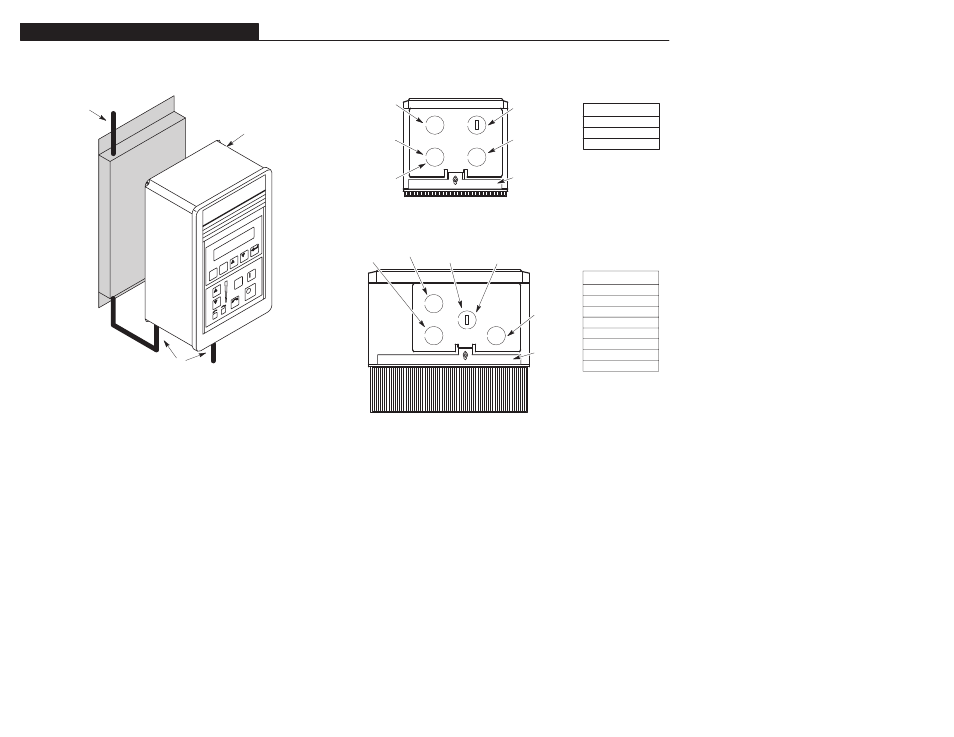

Figure D.2 Mechanical Configuration
AB0682A
Three-Phase
Input
See Note➀
Drive Mounted on
Top of Filter
To
Motor
See
Note➀
➀ Shielding is required. See requirement “5” and “6” on page D-1.
Figure D.3 Required Knockout Assignments
18.6 mm
(0.73 in.)
4 Places
Motor
Output
Additional
Control Control
I/O
Filter
Input
Grounding
Bracket
Control
I/O Filter
Input
18.6 mm
(0.73 in.)
4 Places
Motor
Output
Optional
Brake
AB0689C
Grounding
Bracket
AC Drive Type
1305-AA08A
1305-AA12A
1305-BA01A
1305-BA02A
1305-BA03A
1305-BA04A
1305-BA06A
1305-BA09A
AC Drive Type
1305-AA02A
1305-AA03A
1305-AA04A
