Chapter 5 – Programming
5-43
Diagnostics Group (cont.)

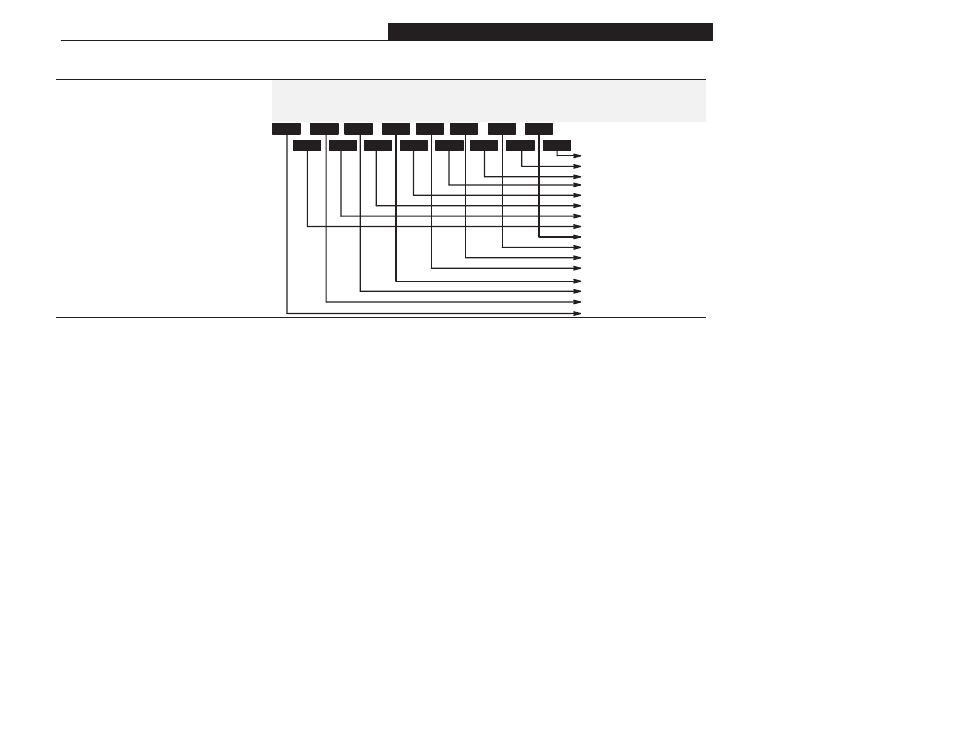

[Drive Status] Parameter # 59 [Drive Status]
Parameter Type Read Only
This parameter displays the actual operating condition in
6 r r
T s p r e er d sp s e u per d
16 bit binary format.
Bit 7 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
“Running”
“Rotating Fwd”
“Accel”
“Decel”
“Alarm”
“Faulted”
“Command Fwd”
“Enabled”
Bit 6
Bit 8 Bit 9 Bit 10 Bit 11 Bit 12
“At Speed”
“Local 0”
“Local 1”
“Local 2”
“Freq Ref 0”
Bit 13 Bit 14 Bit 15
“Freq Ref 1”
“Freq Ref 2”
“Freq Ref 3”
Running
Rotating Forward
Accel
Decel
Alarm
Faulted
Command Forward
Enabled
At Speed
Local 0
Local 1
Local 2
Freq Ref 0
Freq Ref 1
Freq Ref 2
Freq Ref 3
