Chapter 2
Parameter Option
2–9

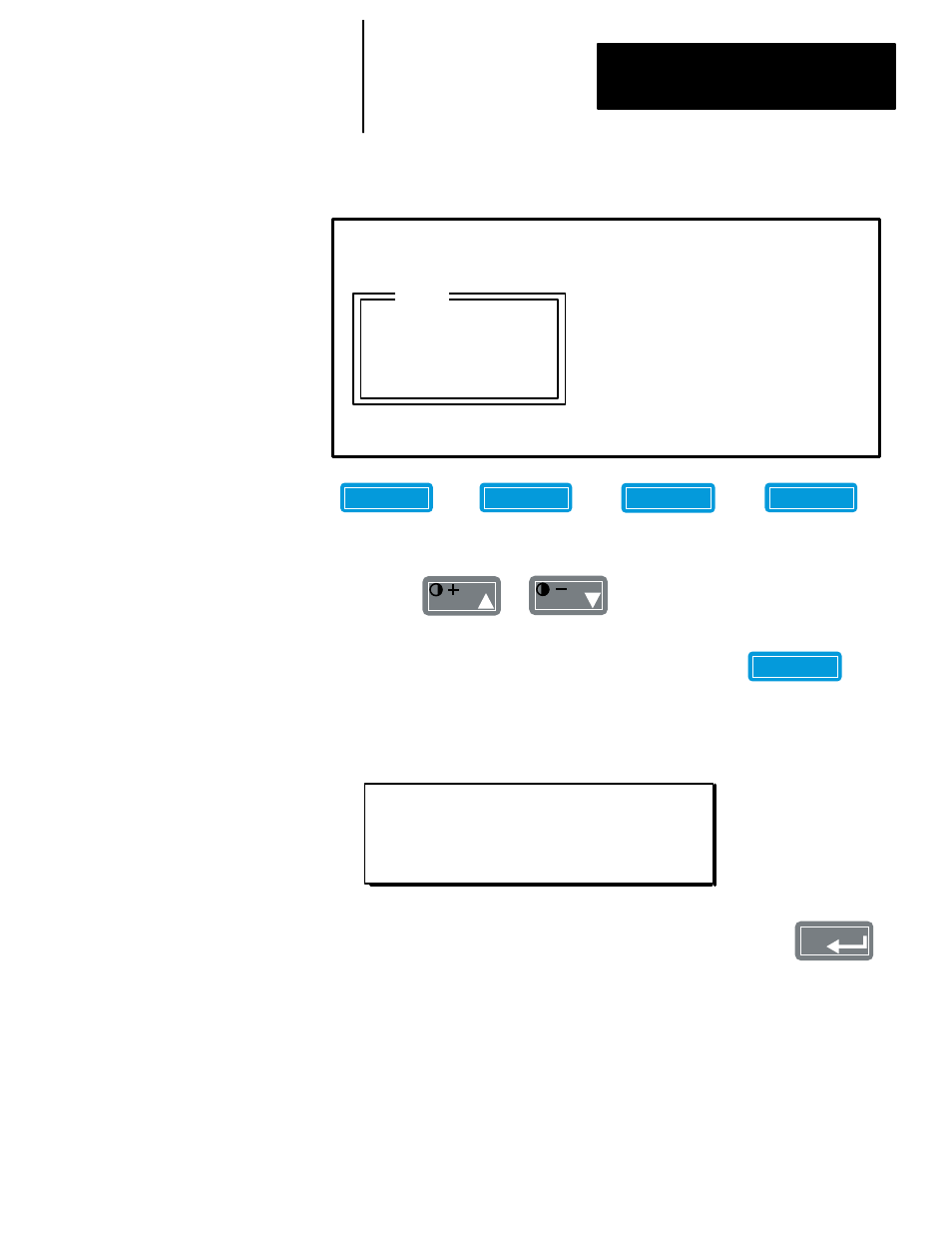

Figure 2.15
Changing Element Values
Val_Bas
F - Communication IO
Lin_Mode
F1 F2 F4 F3
An Out 1 Scale
An Out 1 Offset
< Analog Out 1>
Elem
G - Analog Output
Value : 0
Min : -32767
Max: +32767
Link: None
Use the or keys to change the Value reading.
If you wish to work in a different Value Base, press the
F3
soft
designator key. The options shown in Figure 2.16 can be used.
Figure 2.16
Base Value Selections
Base :
< >
0 – Engr 1 – Hex
2 – Sdec 3 Udec 4 – Oct
Enter the number for the base value you wish to use and press .
The screen will alter to show all element values in the selected base value.
An indicator will appear to the right of the value to indicate the base
selection (Fig. 2.17).
Changing Value Base
