Heavy Duty Dynamic Braking 29
1336-5.65 — March, 2007

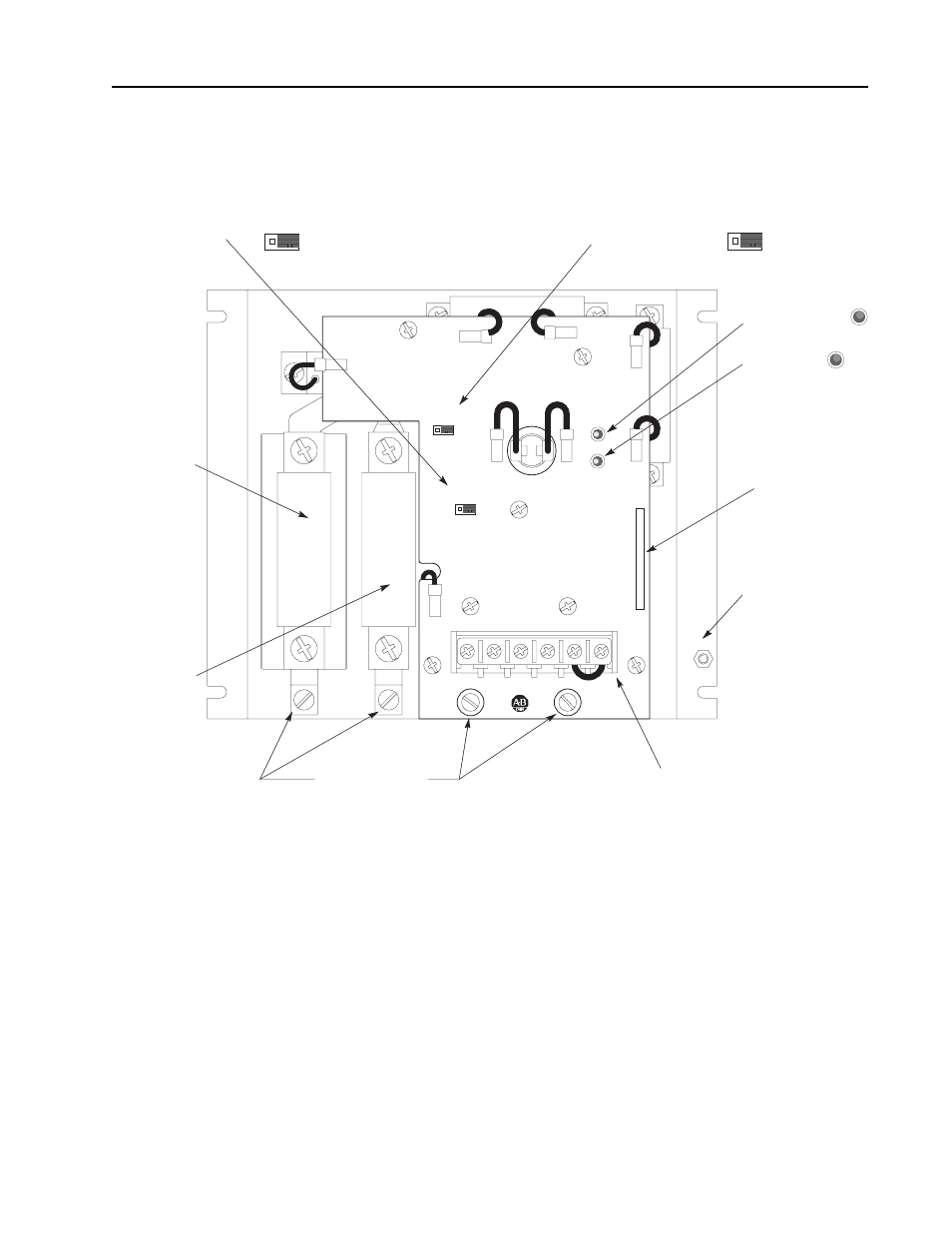

WA070, WB035 and WC035 Terminal Block, Fuse and Jumper Locations
Fuse F1
Fuse F2
BRAKE MODE
SLAVE MASTER
1
W1
Slave/Master
Jumper W1
BRAKE MODE
SLAVE MASTER
W1
VOLT SELECT
380V 460V
1
W2
Brake Frame Ground
(Connect to Earth Ground)
GND
BARCODE
Brake Module Board
DS1
DS1
DC Power ON Light
DS2
Brake ON Light DS2
E12 E11
E9 E10
1 2 3 4 5 6
Terminal Block TB1
Max/Min Wire Size = 8.4 / 0.8 mm 2 (8 / 18 AWG)
Max Torque = 1.81 N-m (16 lb.-in.)
Terminals E9-E12
Max/Min Wire Size = 33.6 / 2.1 mm 2 (2
/ 14 AWG)
Max Torque = 3.96 N-m (35 lb.-in.) for 5.3-2.1 mm 2 (10-14 AWG)
4.52 N-m (40 lb.-in.) for 8.4 mm 2
(8 AWG)
5.09 N-m (45 lb.-in.) for 21.2-13.3 mm 2 (4-6 AWG)
5.65 N-m (50 lb.-in.) for 33.6 mm 2 (2 AWG)
VOLT SELECT
380V 460V
1
W2
Input Voltage Select
Jumper W2
(WB035 Units Only)
