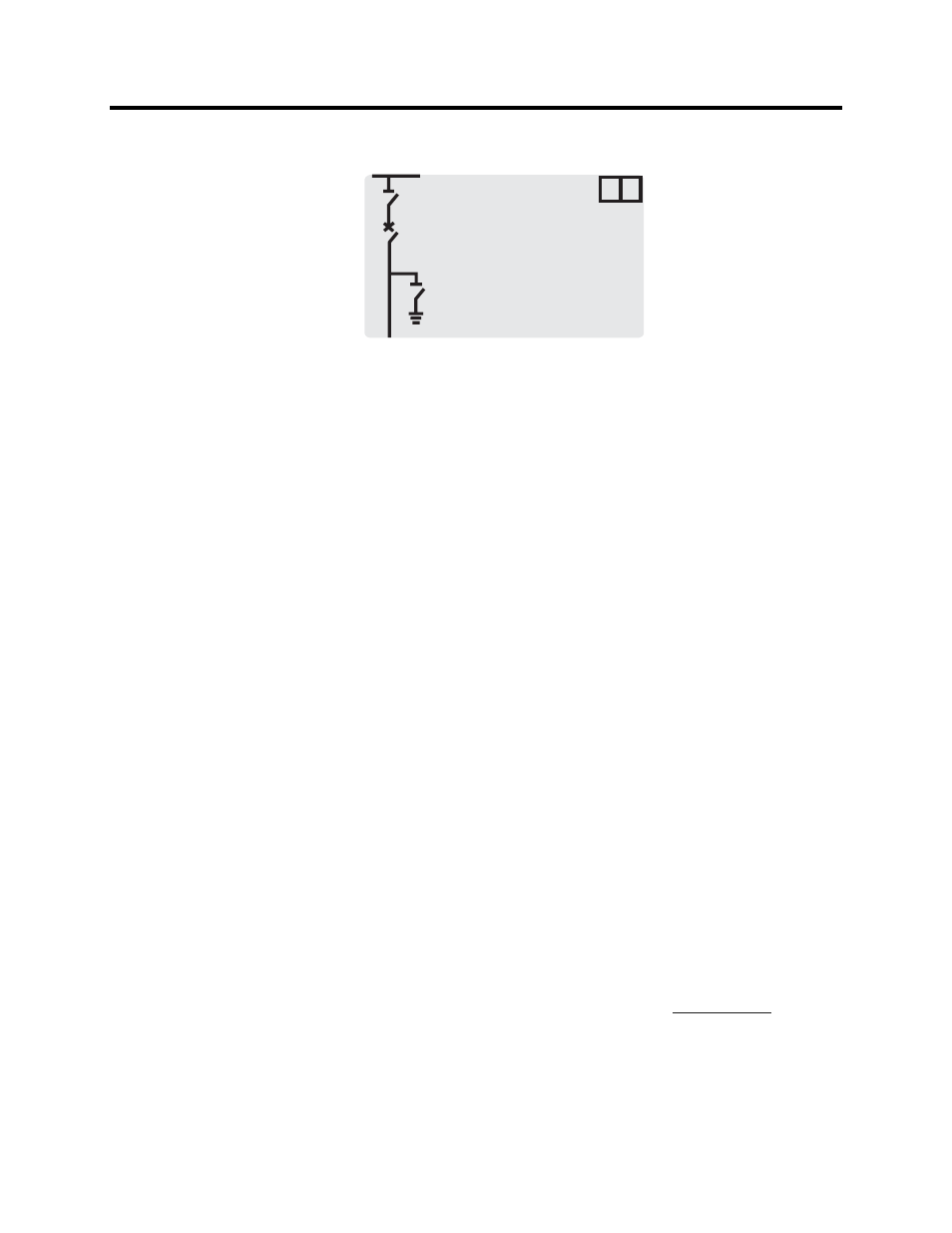

Figure 2.23 – Single Line Diagram
Blocking and Interlocking Configuration
The configuration of the blockings and interlockings is done with the
SetPointPS software. Any start or trip signal can be used for
blocking the operation of any protection stage. Furthermore, the
interlocking between objects can be configured in the same blocking
matrix of the SetPointPS software. For more information, please
refer to the SetPointPS manual.
SetPointPS PC Software The PC user interface can be used for:
On-site parameter setting of the relay
Loading relay software from a computer
Reading measured values, registered values and events to a
computer
Continuous monitoring of all values and events
Two RS-232 serial ports are available for connecting a local PC with
SetPointPS to the relay; one on the front panel and one on the rear
panel of the relay. These two serial ports are connected in parallel.
However, if the connection cables are connected to both ports, only
the port on the front panel will be active. To connect a PC to a serial
port, use connection cable part no. 857-VX003-3.
The SetPointPS program can also use TCP/IP LAN connection.
Optional hardware is required.
There is a free of charge PC program called SetPointPS available for
configuration and setting of Allen-Bradley relays. Please download
the latest SetPointPS.exe from our web page
www.AB.com . For
more information about the SetPointPS software, please refer to the
user’s manual, Publication 857-PM001A-EN-P. Also the SetPointPS
user’s manual is available at our web site.
