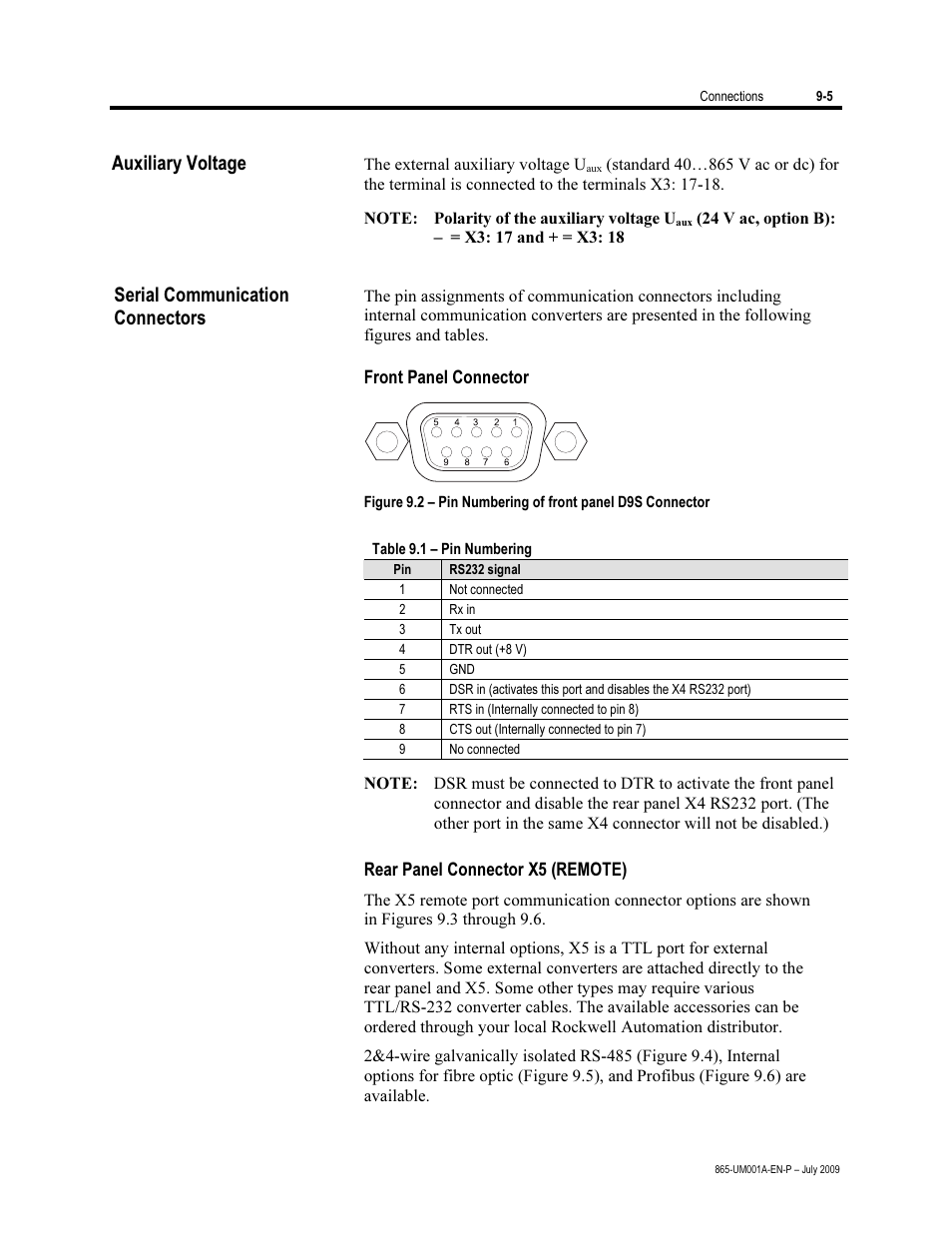

Auxiliary voltage, Serial communication connectors, Front panel connector – Rockwell Automation 865 Differential Protection Relay User Manual
Page 165: Rear panel connector x5 (remote)
