Chapter 4
Configuring the I/O
If the icon for the drive (for this example, PowerFlex 755) on the network
appears as Unrecognized Device, you must download the EDS file for that
PowerFlex 750-Series drive from the Rockwell AUtomation website.
a. Go to the website
.
b. On the website search screen in the Network entry field, enter the type
of network (for this example, ControlNet), which enables the use of the
other search fields.
c. In the Keyword entry field, enter the type of PowerFlex 750-Series drive
(for this example, PowerFlex 755), noting that this field is space
sensitive.
d. Click Search.
Due to the large number of EDS files, this search may take seconds or
up to several minutes.
e. On the search results screen in the Details & Download Column, click
the ‘Download’ hyperlink for the EDS file.
f. Click Save on the File Download screen to save the EDS file to an
appropriate location on your computer.
g. Launch the EDS Hardware Installation Tool by clicking on the
Microsoft Windows Start button and choosing Programs > Rockwell
Software > RSLinx Tools > EDS Hardware Installation Tool.
Then follow the screen prompts to add the EDS file for use with your
project.
h. Reboot the computer and repeat steps 1 through 7 at the beginning of
this subsection.

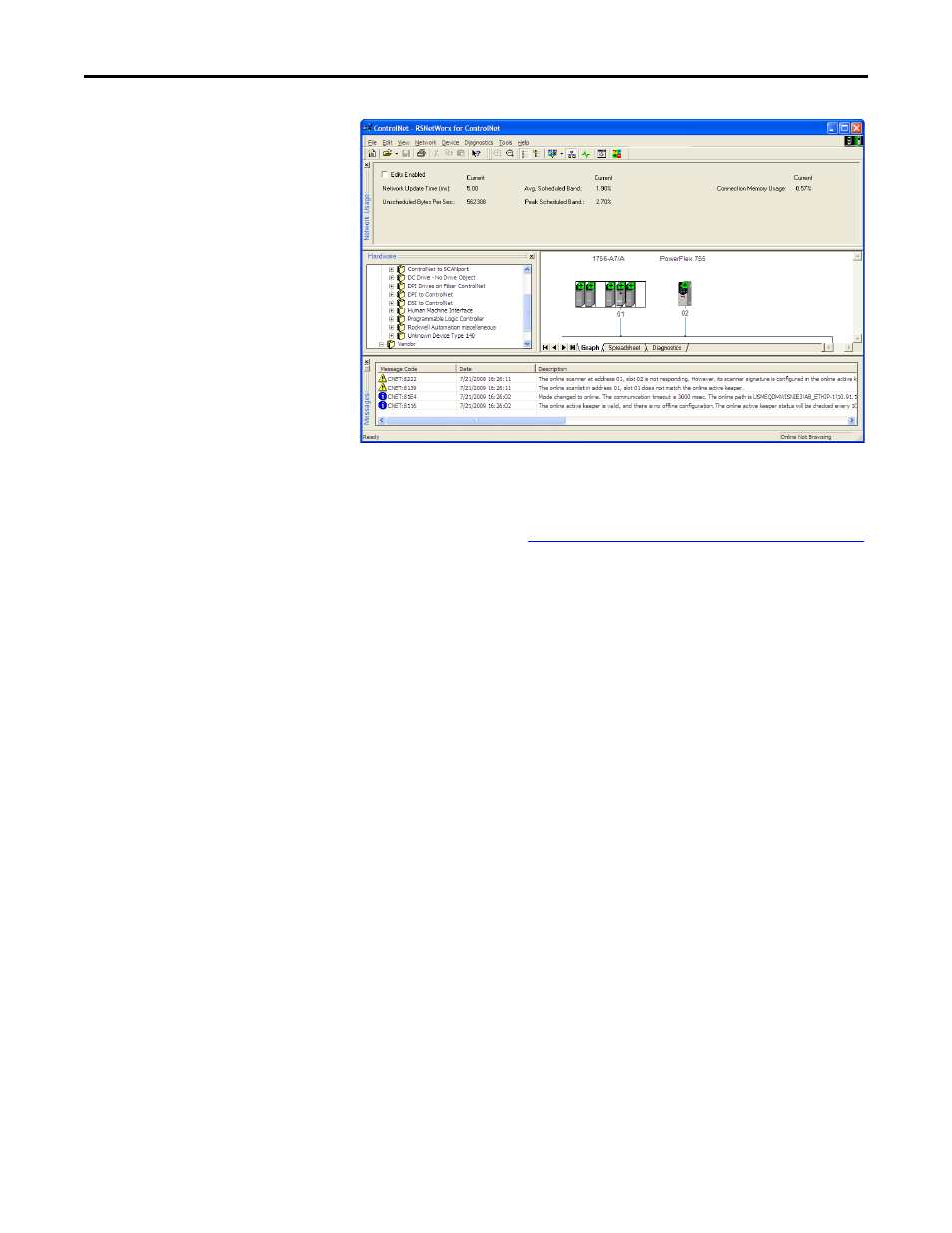

The Unrecognized Device icon in the RSNetWorx for ControlNet
graph view window in step 7 should have been replaced by a drive icon
(for this example, the icon for a PowerFlex 755 drive).
8.
From the Network menu, choose Enable Edits, or check the Edits Enabled
box in the RSNetWorx for ControlNet project window.
