Rockwell Automation 20-750-CNETC PowerFlex Coaxial ControlNet Option Module User Manual
Page 52

52
Rockwell Automation Publication 750COM-UM003B-EN-P - November 2012
Chapter 4
Configuring the I/O

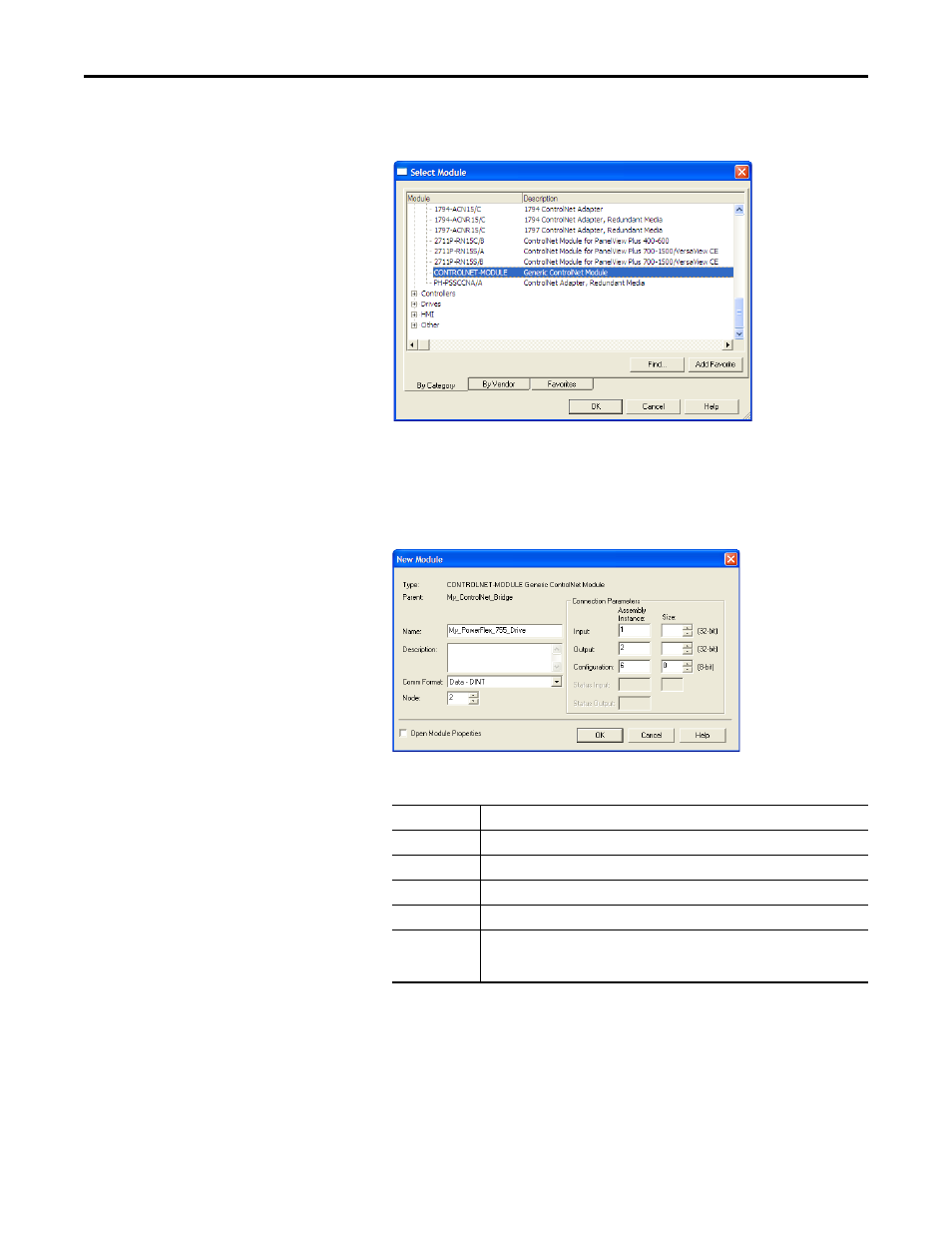

2.
Expand the Communications group to display all of the available
communication modules.
3.
Select ‘CONTROLNET-MODULE’ from the list to configure the drive
and its connected ControlNet option module.
4.
Click OK.
The drive’s New Module dialog box appears.
5.
Edit the following information about the drive and option module.
Box
Setting
Name
A name to identify the drive and option module.
Description
Optional – description of the drive/option module.
Comm Format
Data - DINT (This setting formats the data in 32-bit words.)
Node Address
The node address of the option module.
Open Module
Properties
When this box is checked, clicking OK opens additional module properties dialog boxes
to further configure the drive/option module. When unchecked, clicking OK closes the
drive’s New Module dialog box. For this example, check this box.
