Rockwell Automation 442L SC300 Safety Sensor User Manual User Manual
Page 39
Rockwell Automation Publication 10000202762 Ver 00 - January 2012
37
Chapter 6
Application examples
Application with automatic
material transport to the
workstation
If the application requires automatic material transport into the workstation, you can
mount the safety camera system such that only the area above the material transport is
monitored.

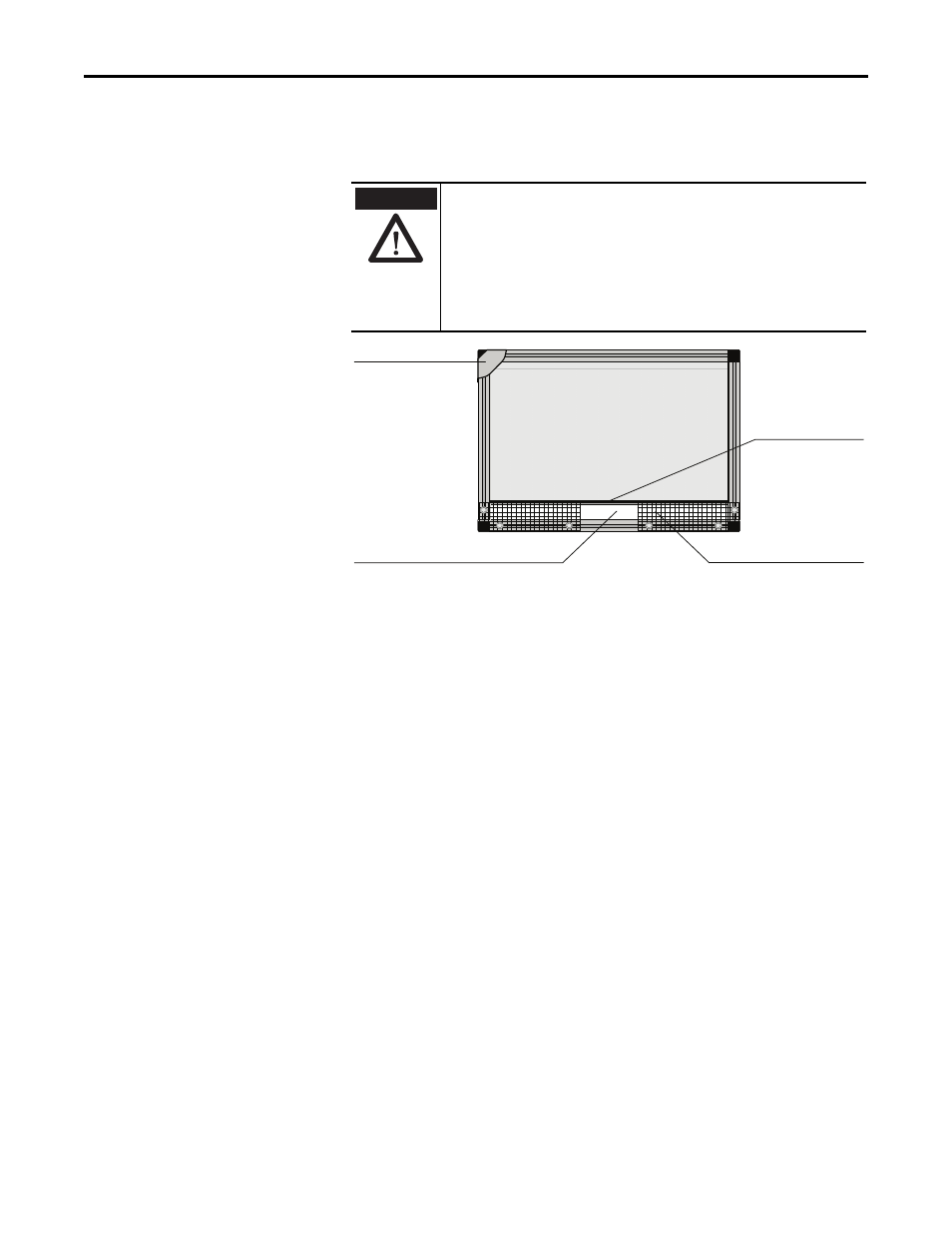

Figure 32 - Mounting with automatic material transport into the workstation
Protect the material transport using other measures.
The SC300 does not monitor the material transportation with
this mounting method.
Protect the unmonitored areas on both sides of the material
transport using mechanical guards.
Prevent people from being able to reach through the material
transport to the hazardous point using organizational
measures (e.g. by increasing the safety distance).
ATTENTION
SC300
Mounting rail with
reflective tape
Protective field
Opening for material transport
Mechanical guard
