4-2
Controlling PowerFlex 4 and 40 Drives with Allen-Bradley Controllers

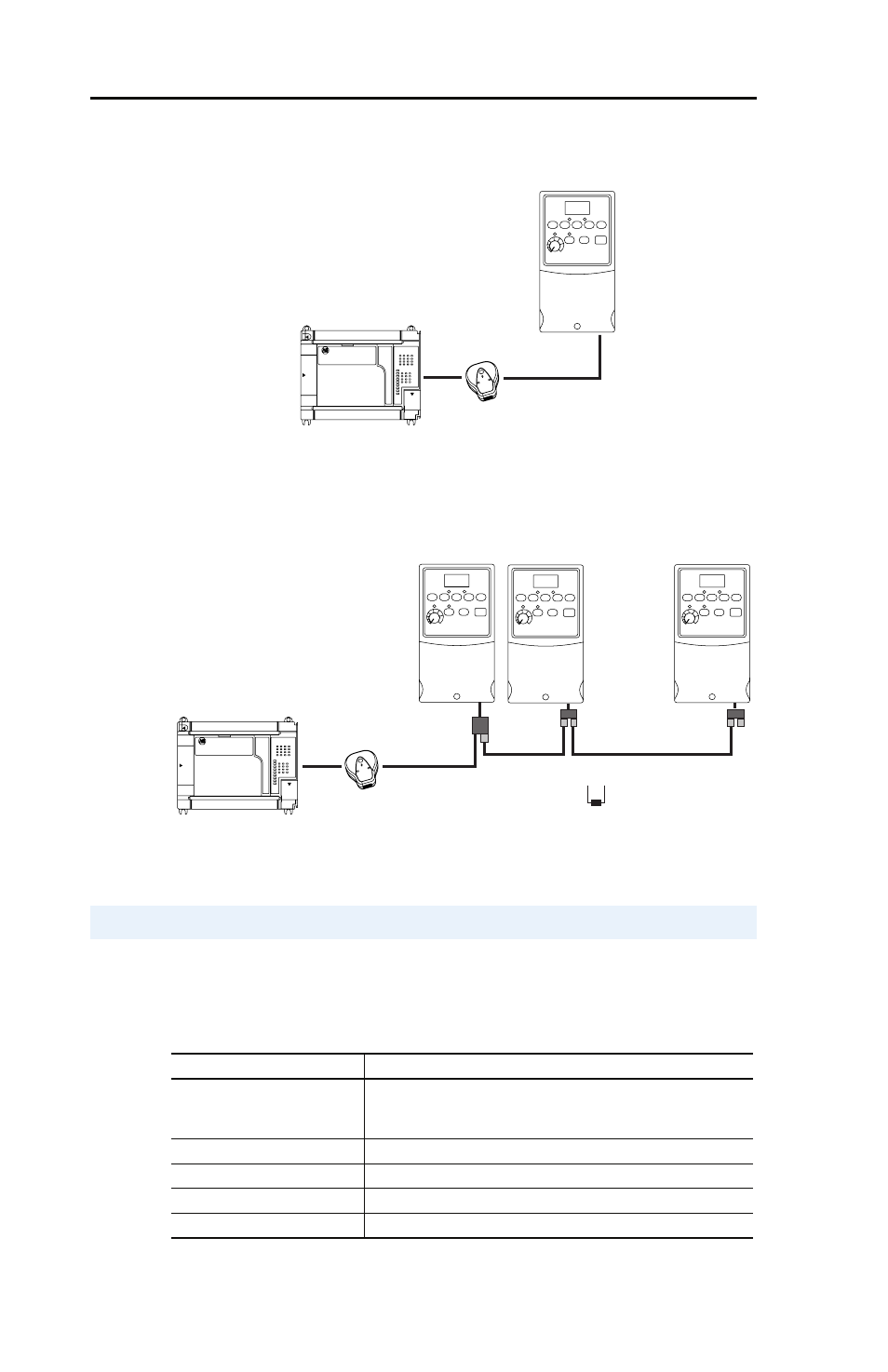

Figure 4.1 Point-to-Point Example
Figure 4.2 Multiple Drive Example
In addition to using the 22-SCM-232 serial converter module, the
required cabling depends on the type of Allen-Bradley controller being
used:
AB
Drive
22-SCM-232
Serial Converter
Controller
RS232
DF1
RS485
Modbus RTU
AB
Drive # 1
22-SCM-232
Serial Converter
Controller
RS232
DF1
RS485
Modbus RTU
Drive # 2
Drive # 31
AK-U0-RJ45-SC1
Splitter Cable
AK-U0-RJ45-TB2P
Terminal Blocks
1/4W, 120
Ω
Terminating Resistors
(on first and last drives)
Cabling Requirements
Controller Type
Requires 22-SCM-232 plus
…
MicroLogix 1000/1200/1500
LSP
1761-CBL-PM02 or 1761-CBL-AP00 (8-pin DIN to 9-pin
Female) and 1203-SNM Serial Null Modem adapter (9-pin
Male to 9-pin Male)
MicroLogix 1500 LRP
—
SLC 5/03, 5/04 or 5/05
—
PLC5
9-pin Male to 25-pin Male adapter (3rd party)
ControlLogix/CompactLogix —
