The Routing Rules configuration page can be accessed by selecting the “Routing” link on any of the configuration web
pages. Up to 30 routing rules may be added to each WI-MOD-945-E. The table below summarizes the configurable
parameters of a routing rule.
Note: Entering dedicated Ethernet Routes can also be added to the wired Ethernet LAN in place of
generating / adding routing rules into the modems.
Name A name to describe the routing rule (Max 32 characters).
Destination The destination network (or host) IP address (to specify a network address set the
host address to 0. i.e. for an IP address 192.168.0.0 with Netmask 255.255.255.0
would specify a destination network, while 192.168.0.16 specifies a destination host).
Subnet Mask The subnet mask for the destination network.
Gateway The IP address of the next-hop router for the specified destination.
Enabled Check this box to enable the rule. You can Uncheck the box to disable a routing rule
without needing to re-enter the information at a later time.

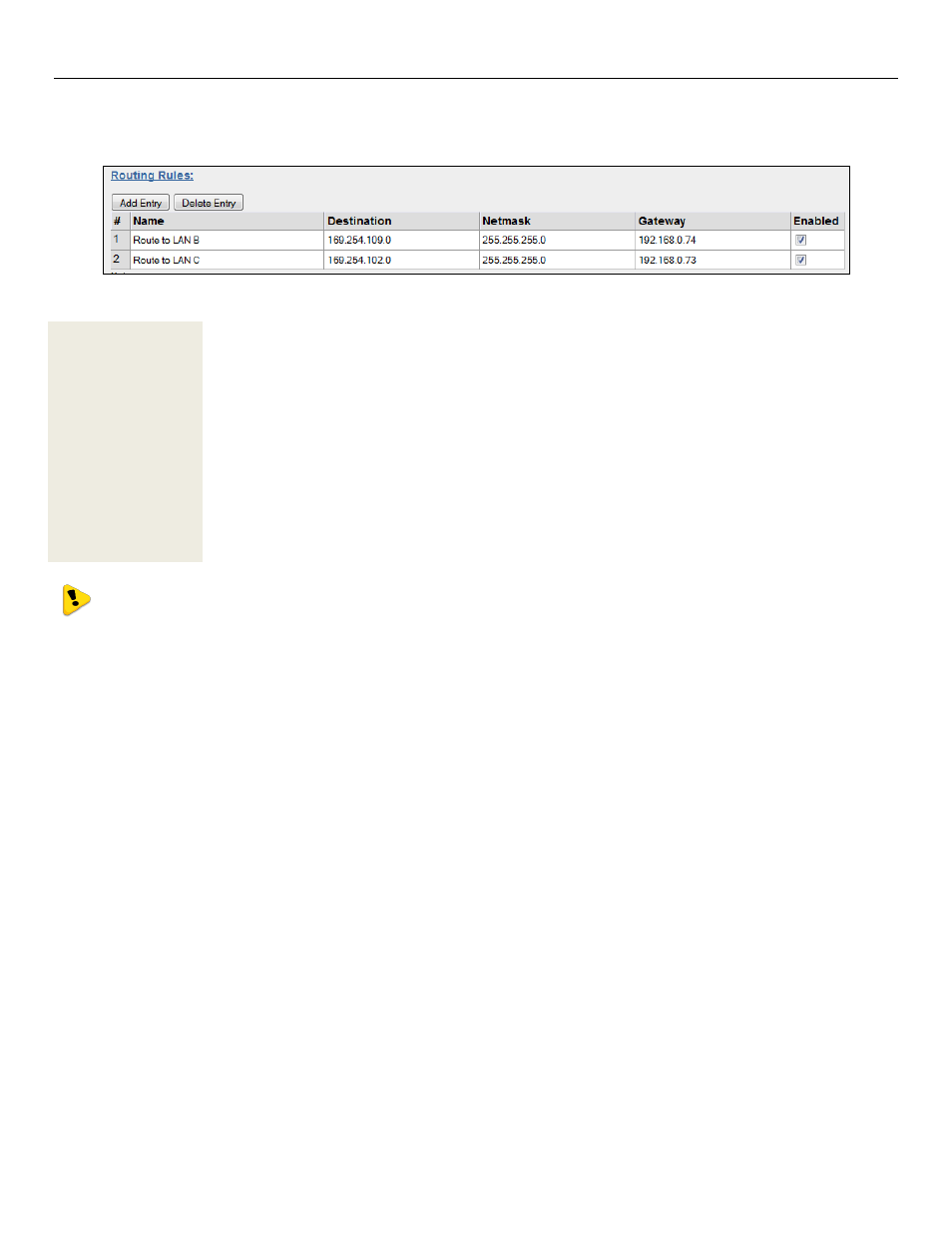

Figure 46 - Routing Rules
