Therma-Tru ARCH 1 Dimensional Data - Book Size - Manual (Page 59)

Dimensional
Data
Arch 1 2014 (BOOK SIZE) 1.59

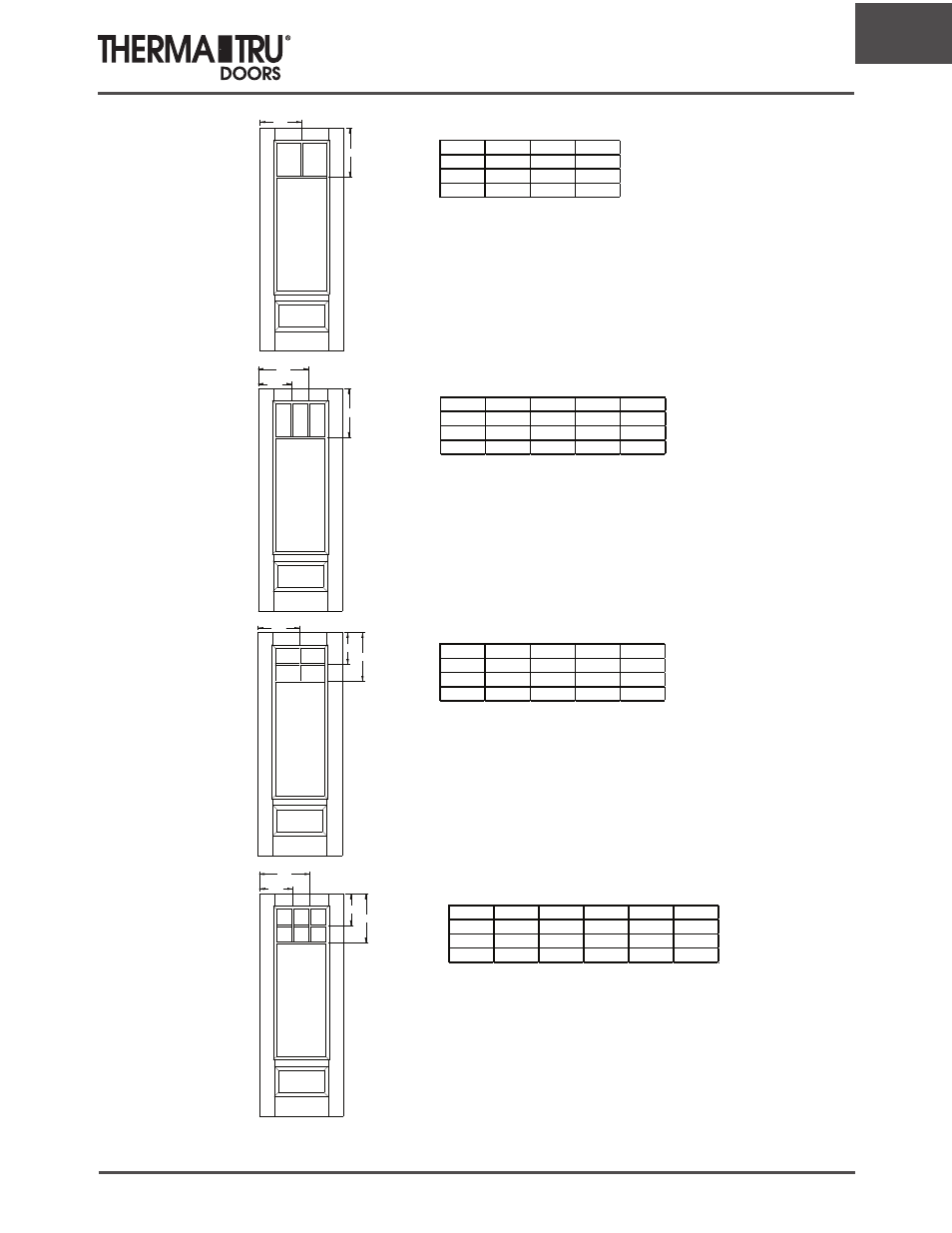

8/0 Lip Lite Grille Locations
A
B
A
B
C
D
A
B
C
A
B
C
Panel Glass A B C
2/8 22 x 64 16" 13-1/2" 21"
2/10 22 x 64 17" 13-1/2" 21"
3/0 22 x 64 18" 13-1/2" 21"
GBG/SDL - Lip Lite - 8'0" 3/4 Lite Craftsman - 2W2H
Panel Glass A B
2/8 22 x 64 16" 21"
2/10 22 x 64 17" 21"
3/0 22 x 64 18" 21"
GBG/SDL - Lip Lite - 8'0" 3/4 Lite Craftsman - 2W1H
All dimensions shown are to the center of the muntin.
Panel Glass A B C
2/8 22 x 64 12-1/4" 19-3/4" 21"
2/10 22 x 64 13-1/4" 20-3/4" 21"
3/0 22 x 64 14-1/4" 21-3/4" 21"
GBG/SDL - Lip Lite - 8'0" 3/4 Lite Craftsman - 3W1H
Panel Glass A B C D
2/8 22 x 64 12-1/4" 19-3/4" 13-1/2" 21"
2/10 22 x 64 13-1/4" 20-3/4" 13-1/2" 21"
3/0 22 x 64 14-1/4" 21-3/4" 13-1/2" 21"
GBG/SDL - Lip Lite - 8'0" 3/4 Lite Craftsman - 3W2H
