Dimensional
Data
1.46 2014 (BOOK SIZE) Arch 1

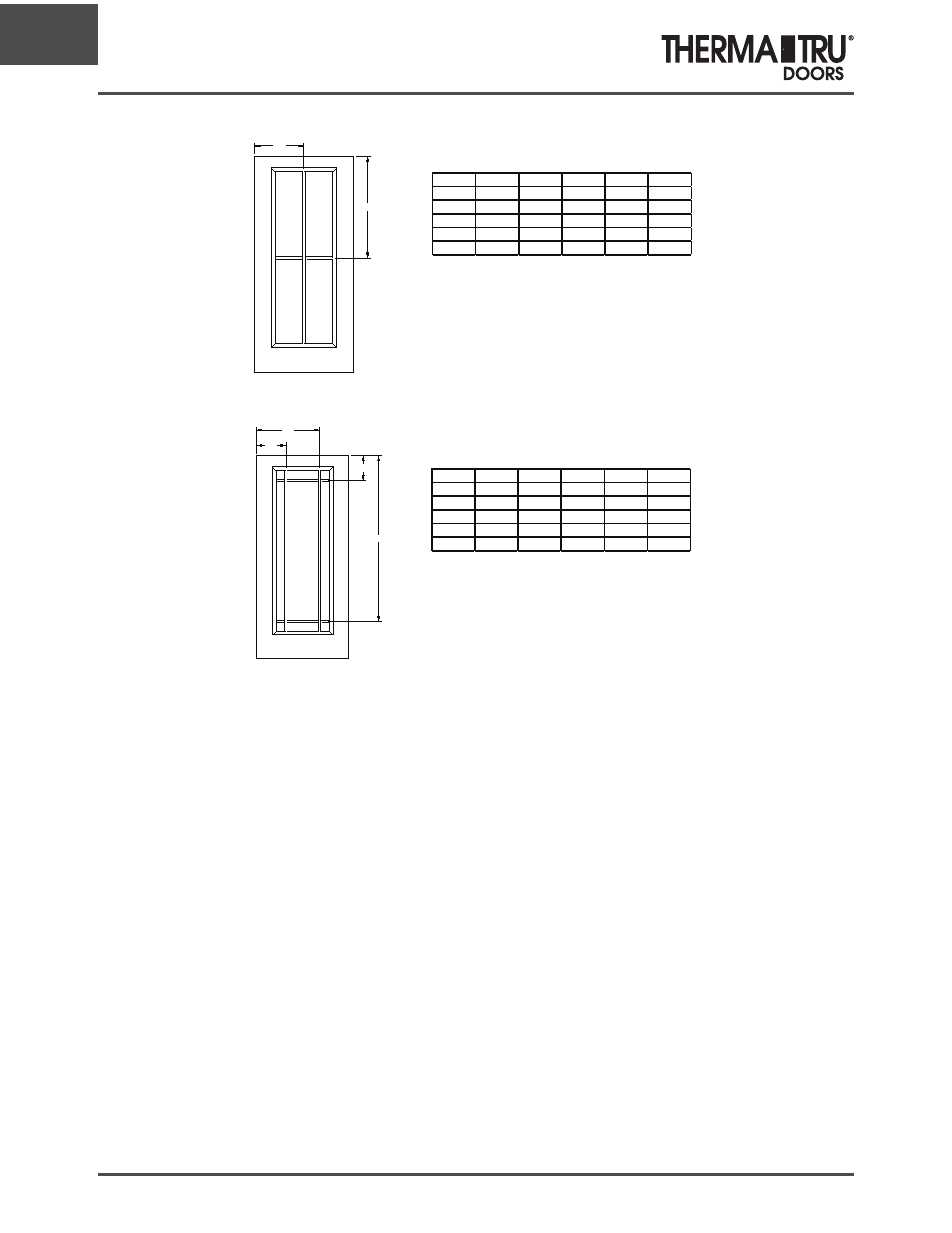

6/8 Lip Lite Grille Locations
A
D
A
B
C
D
Panel Glass A B C D
2/4 16 x 64 10-7/16" 17-9/16" 9-9/16" 64-5/8"
2/6 20 x 64 9-7/16" 20-9/16" 9-9/16" 64-5/8"
2/8 22 x 64 9-7/16" 22-9/16" 9-9/16" 64-5/8"
2/10 22 x 64 10-7/16" 23-9/16" 9-9/16" 64-5/8"
3/0 22 x 64 11-7/16" 24-9/16" 9-9/16" 64-5/8"
GBG - Lip Lite - 6'8" Full Lite - 9 Lite Prairie
Panel Glass A B C D
2/4 16 x 64 14" - - 37-3/16"
2/6 20 x 64 15" - - 37-1/8"
2/8 22 x 64 16" - - 37-1/8"
2/10 22 x 64 17" - - 37-1/8"
3/0 22 x 64 18" - - 37-1/8"
GBG - Lip Lite - 6'8" Full Lite -2W2H
All dimensions shown are to the center of the muntin.
