Unit and rough opening sizing – Therma-Tru ARCH 1 Dimensional Data - Book Size User Manual
Page 33
Dimensional
Data
Arch 1
2014 (BOOK SIZE)
1.33
Unit and Rough Opening Sizing

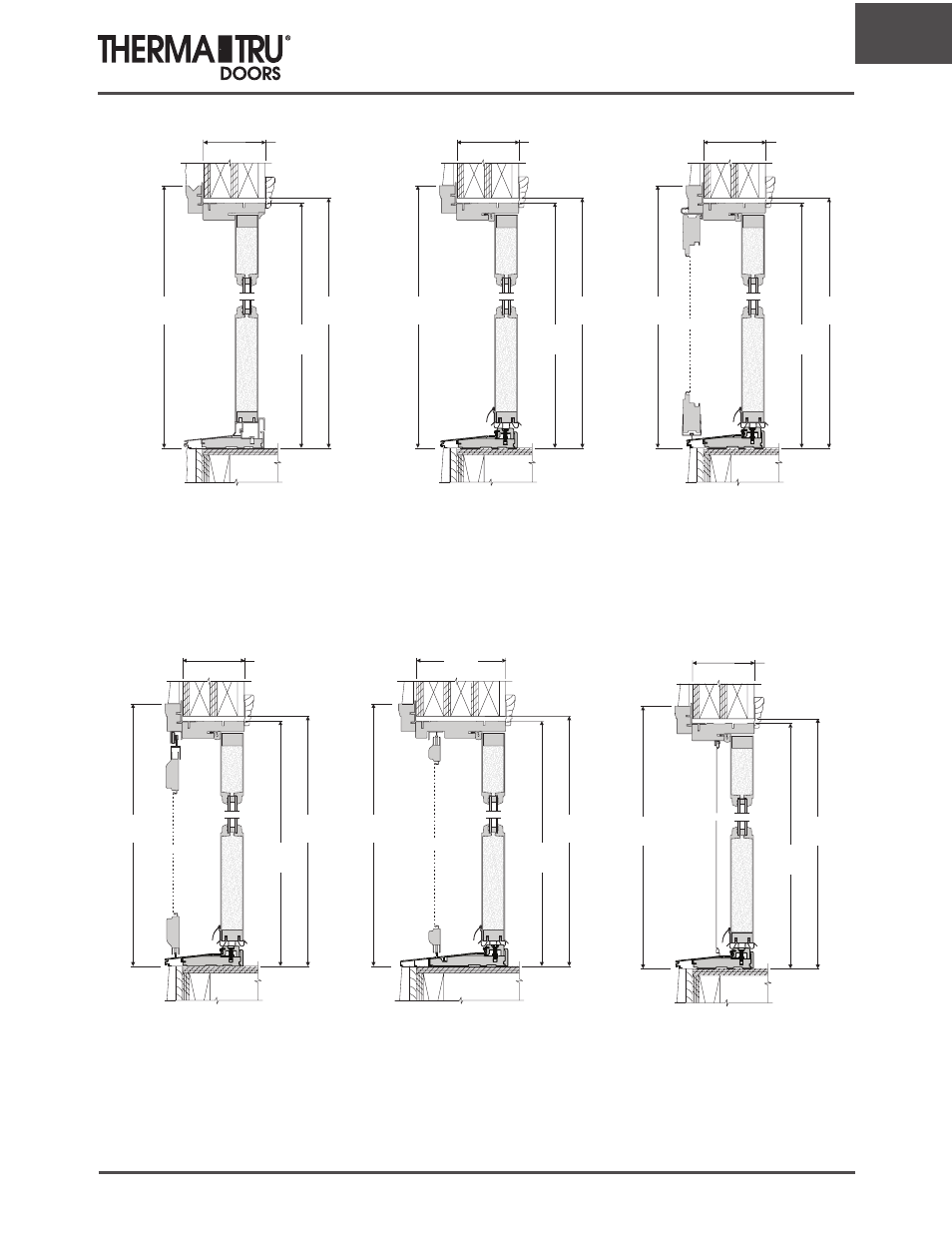

VERTICAL SECTION
INSWING - FIXED
(shown with Stucco Brickmould option)
VERTICAL SECTION
INSWING - DOUBLE/TRIPLE
w/TOP HUNG SCREEN
VERTICAL SECTION
INSWING - SINGLE
VERTICAL SECTION
INSWING - 6-9/16”
w/STANDARD SCREEN
VERTICAL SECTION
INSWING - DOUBLE w/ASTRAGAL
w/HINGED SCREEN
VERTICAL SECTION
INSWING - VENTED SIDELITE
w/FIXED SCREEN
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
6-9/16”
Unit
Height
Rough
Opening
Brickmould
Dimension
4-9/16”
Unit
Height
Rough
Opening
