Therma-Tru ARCH 1 Dimensional Data - Book Size - Manual (Page 54)

Dimensional
Data
1.54 2014 (BOOK SIZE) Arch 1

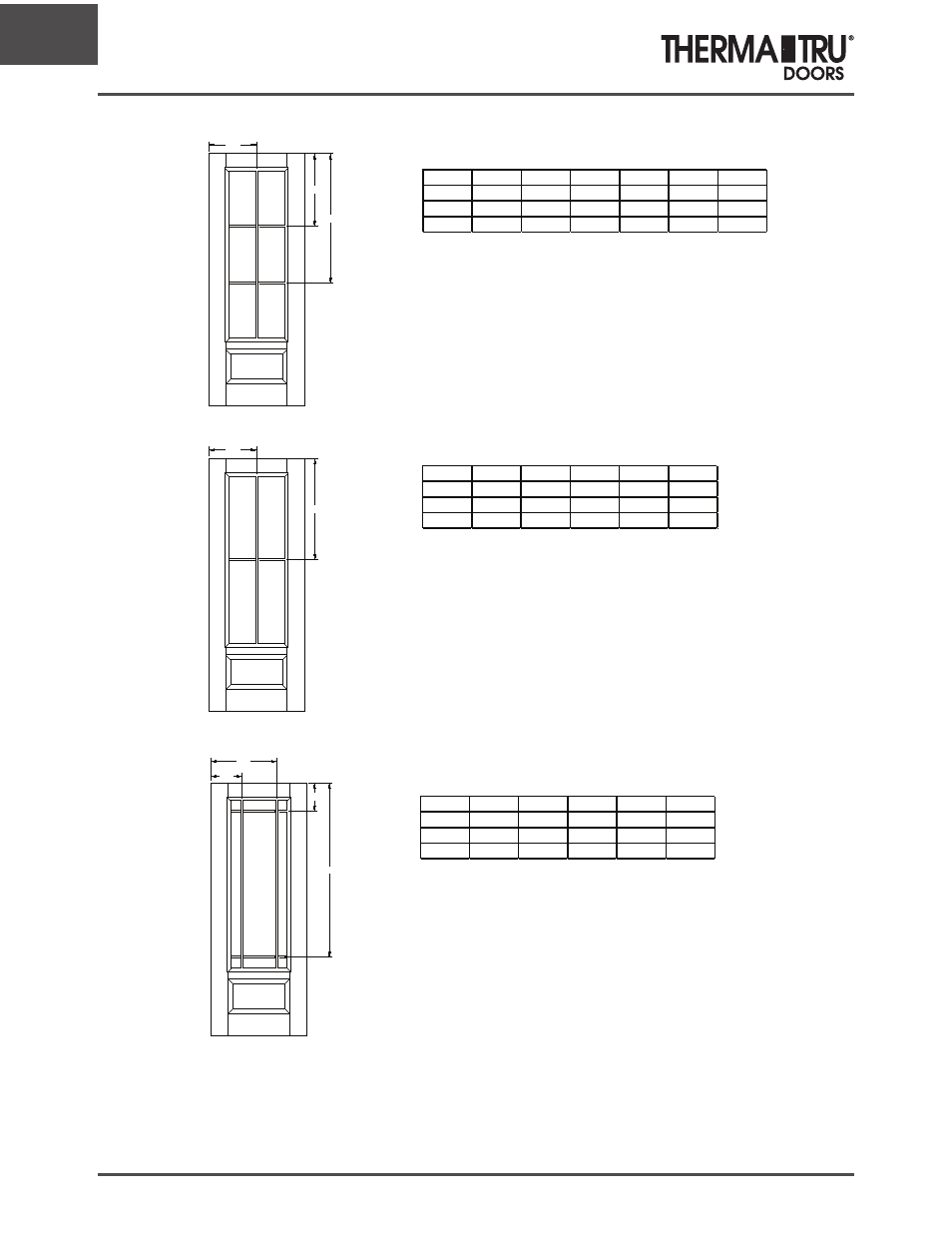

8/0 Lip Lite Grille Locations
A
D
E
A
D
A
B
C
D
Panel Glass A B C D
2/8 22 x 64 9-7/16" 22-9/16" 10-5/8" 65-3/4"
2/10 22 x 64 10-7/16" 23-9/16" 10-5/8" 65-3/4"
3/0 22 x 64 11-7/16" 24-9/16" 10-5/8" 65-3/4"
GBG - Lip Lite - 8'0" 3/4 Lite - 9 Lite Prairie
Panel Glass A B C D
2/8 22 x 64 16" - - 38-3/16"
2/10 22 x 64 17" - - 38-3/16"
3/0 22 x 64 18" - - 38-3/16"
GBG - Lip Lite - 8'0" 3/4 Lite -2W2H
Panel Glass A B C D E
2/8 22 x 64 16" - - 27-1/2" 48-13/16"
2/10 22 x 64 17" - - 27-1/2" 48-13/16"
3/0 22 x 64 18" - - 27-1/2" 48-13/16"
GBG - Lip Lite - 8'0" 3/4 Lite - 2W3H
All dimensions shown are to the center of the muntin.
