8/0 lip lite grille locations – Therma-Tru ARCH 1 Dimensional Data - Book Size User Manual
Page 58
Dimensional
Data
1.58
2014 (BOOK SIZE)
Arch 1
A
B
C
D
A
B
C
A
B
C
A
B
Panel
Glass
A
B
C
2/0
14 x 80
12"
13-9/16" 21-1/16"
2/6
20 x 80
15"
13-1/2"
21"
2/8
22 x 80
16"
13-1/2"
21"
2/10
22 x 80
17"
13-1/2"
21"
3/0
22 x 80
18"
13-1/2"
21"

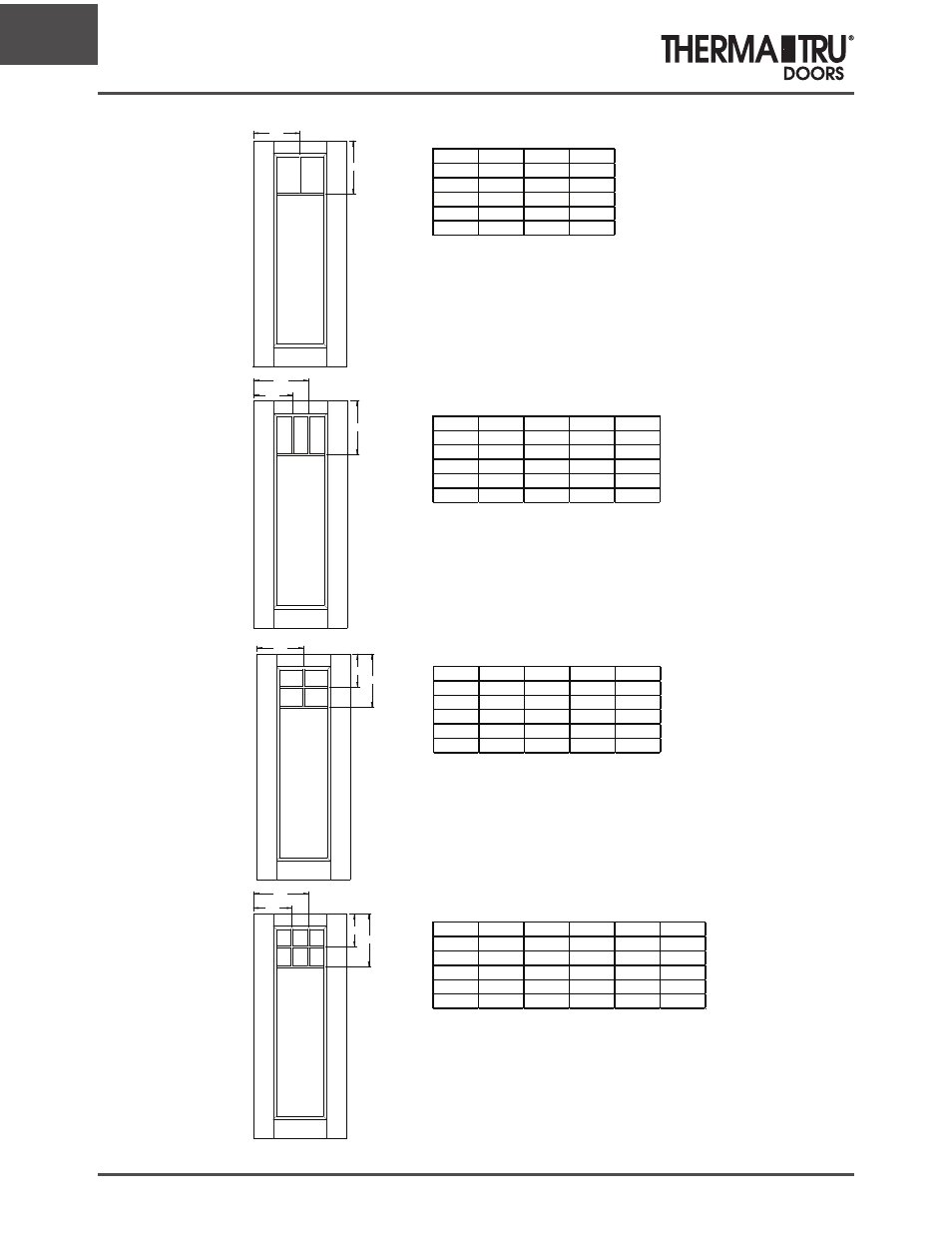

GBG/SDL - Lip Lite - 8'0" Full Lite Craftsman - 2W2H
Panel
Glass
A
B
2/0
14 x 80
12"
21-1/16"
2/6
20 x 80
15"
21"
2/8
22 x 80
16"
21"
2/10
22 x 80
17"
21"
3/0
22 x 80
18"
21"
GBG/SDL - Lip Lite - 8'0" Full Lite Craftsman - 2W1H
All dimensions shown are to the center of the muntin.
Panel
Glass
A
B
C
2/0
14 x 80
9-5/8"
14-3/8" 21-1/16"
2/6
20 x 80
11-5/8" 18-3/8"
21"
2/8
22 x 80
12-1/4" 19-3/4"
21"
2/10
22 x 80
13-1/4" 20-3/4"
21"
3/0
22 x 80
14-1/4" 21-3/4"
21"
GBG/SDL - Lip Lite - 8'0" Full Lite Craftsman - 3W1H
Panel
Glass
A
B
C
D
2/0
14 x 80
9-5/8"
14-3/8" 13-9/16" 21-1/16"
2/6
20 x 80
11-5/8" 18-3/8" 13-1/2"
21"
2/8
22 x 80
12-1/4" 19-3/4" 13-1/2"
21"
2/10
22 x 80
13-1/4" 20-3/4" 13-1/2"
21"
3/0
22 x 80
14-1/4" 21-3/4" 13-1/2"
21"
GBG/SDL - Lip Lite - 8'0" Full Lite Craftsman - 3W2H
