16 • Downloading Data from the Eagle 2
IrDA adapter cable as shown in Figure 10 below, aligning the
infrared port on the front of the Eagle 2 with the infrared port
on the cable.
3. Press and hold the POWER
ENTER RESET button on the
Eagle 2 until you hear a beep,
then release it. The Eagle 2 will
begin its power up sequence. If
a successful connection
between the Eagle 2 and the
computer occurs, the Connect
light in the Download window
turns green after a few
seconds and “Connection Successful.” displays in the
Download area of the Download window. The Windows
®
icon tray will indicate that a wireless connection is in effect.
4. If you selected Automatic Download, the downloading
process begins automatically after a successful connection
is made.
If Automatic Download is not selected, the Complete
Download, Instrument Information, Clear Logger Data, and

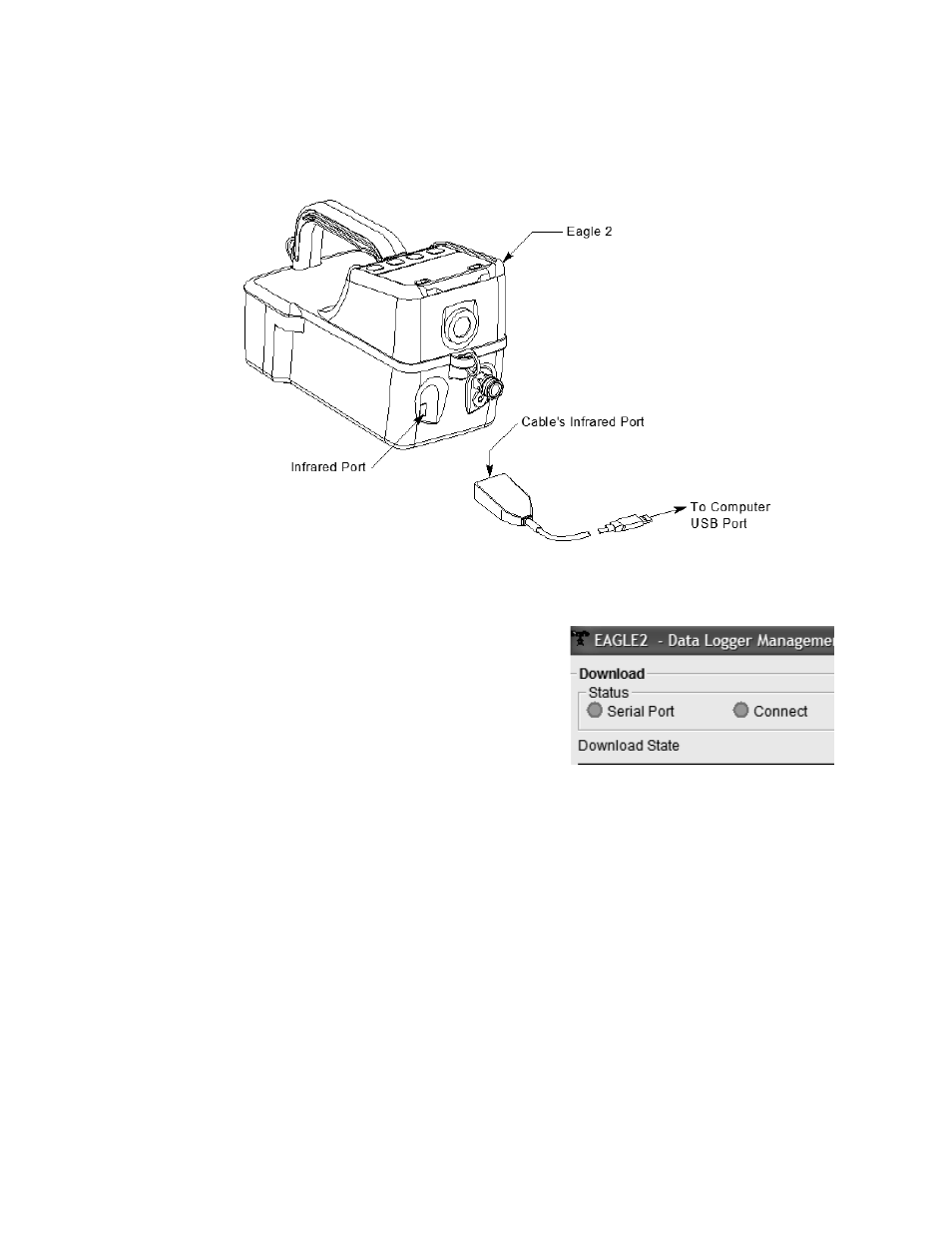

Figure 10: Aligning the Eagle 2 with the Cable Infrared Receiver
Figure 11: Connection
Message
