Prescolite 37G-TP-1, 2 & 4 - Manual

Instruction
Sheet
www
.prescolite.com
• Prescolite
TollFree
Technical Support
1.888.PRS.4TEC
• Hours: 8am - 5pm ET
101 Corporate Drive • Spartanburg, SC 29303
With representatives offices in principal cities throughout North America.
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .03214500
Instruction
Sheet
INSTALLATION INSTRUCTIONS
CAT. NO. 37G-TP-1, 2 & 4
1. Install the housing by nailing the mounting
brackets on the housing to the frame support as
shown in Fig. 1 or frame in the housing as
desired for wet or dry wall construction.
2. Assemble the gasket and trim ring to the housing
with (4) 6-32 x 1/4 flat head screws (provided in
packet) as shown in Fig. 3. Adjust the mounting
brackets to locate the housing as required for
flush or profile trim, Fig. 2.
3. Install the conduit (by others) to align with the 1/2
NPT tapped holes in the J-Box as shown, remove
the (4) screws retaining the socket mounting plate
and lift out.
IMPORTANT - WHEN INSTALLED IN BRICK OR
BRICK VENEERED WALLS, THE RECESSED
PORTION OF THE HOUSING MUST BE
COATED WITH ASPHALTUM OR SIMILAR
PROTECTIVE MATERIAL. SOME TYPES OF
BRICKS RETAIN MOISTURE AND OTHER
SUBSTANCES THAT CAN DAMAGE THE
HOUSING. DO NOT CLEAN BRICK WALL WITH
ACIDS WHILE FIXTURE IS IN PLACE.
4. When installed in concrete pour or mortar and in a
situatiuon where direct water exposure is
frequent, the concrete or mortar is to be suitably
treated with a water sealing or repelling agent to
insure that the fixture housing does not remain
continuously wet.

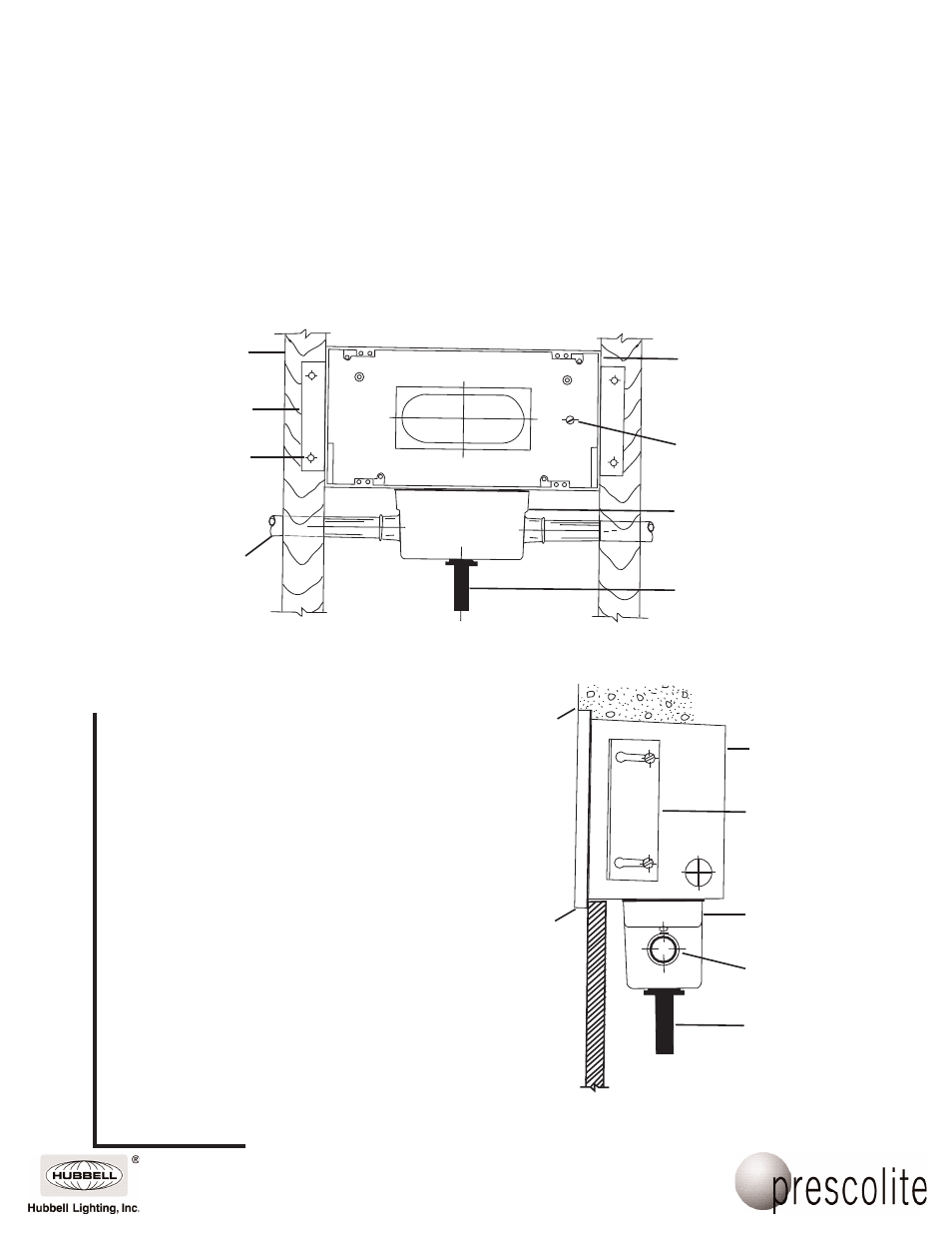

Support Frame
(By Others)
Profile Trim
(wet or drywall
construction)
Profile or Flush Trim
Fig. 2
Thermal
Protector
Conduit
Entry
Adjustable
Mounting
Bracket (2)
Housing
Thermal
Protector
Conduit
(By Others)
Housing
Ground Screw
J-Box
Housing Installation
Fig. 1
Adjustable Mounting
Bracket (2)
Fastener (Nail)
(By Others)
Flush Trim
(Wet Construction)
J-Box
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
