INSTALLATION INSTRUCTIONS

SDPSCFT SERIES

J-BOX

1. LOOSEN SCREWS ON J-BOX HALF WAY

(SUPPLIED BY OTHERS).

2a. LOCATE THE BLACK (LINE), WHITE (COMMON),

& GREEN (GROUND) WIRES IN THE J-BOX AND

PASS THESE WIRES THROUGH CENTER HOLE

OF MOUNTING PLATE AS SHOWN IN TOP

FIGURE.

2b. (DIMMING ONLY) THERE WILL BE A GRAY AND

VIOLET WIRE (1 EACH). PASS THESE THROUGH

HOLE WITH OTHER WIRES.

3. ALIGN MOUNTING PLATE TO J-BOX, ROTATE

PLATE COUNTERCLOCKWISE, AND TIGHTEN

WITH SCREWS.

NOTE: THE FIXTURE SHOULD BE ALLOWED TO

HANG ON ITS CHAIN AT THIS POINT.

4a. REMOVE J-BOX COVER PLATE. REMOVE

APPROPRIATE KNOCKOUT AND ASSEMBLE

APPROPRIATE CONNECTOR FOR THE SUPPLY

WIRE USED. CONNECT GROUND WIRES TO

GREEN GROUND LEADS. CONNECT WHITE

(COMMON) TO WHITE (LEADS). CONNECT

POWER SUPPLY (LINE) TO BLACK LEAD(S).

REINSTALL J-BOX COVER.

WARNING: DO NOT PINCH WIRES BETWEEN

J-BOX/BALLAST COVER AND J-BOX. CONSULT

A QUALIFIED ELECTRICIAN FOR ALL OTHER

OPTIONS THAT REQUIRE OTHER WIRING

CONFIGURATIONS.

4b. (DIMMINING ONLY) CONNECT GRAY AND VIO-

LET WIRES (SEE STEP #2b). DIMMING WIRE

CONNECTION MUST NOT BE MADE WITHIN THE

J-BOX TO RETAIN CLASS 2 RATING FOR THE

DIMMING WIRES. MAKE THIS CONNECTION

ONLY AFTER PERFORMING STEP #2b.

IMPORTANT:

DIMMING FIXTURES: 0-10 VOLT CONTROL ONLY.

CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-

INSTALLED WIRING ON THE FIXTURE. SAFETY AND

PROPER OPERATION OF THE FIXTURE DEPEND ON

THE INTEGRITY OF THE WIRING.

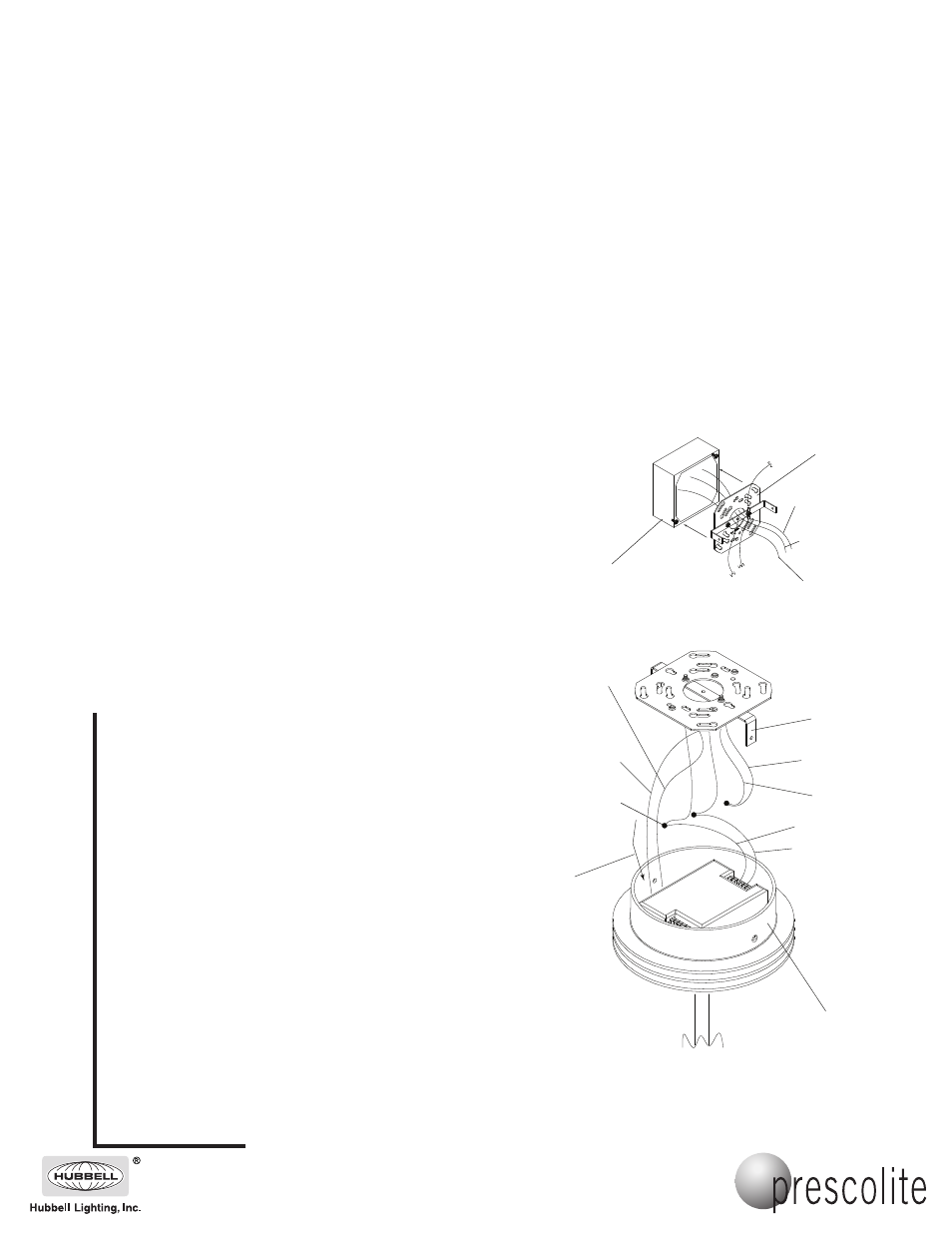

COVER

BLACK TO

BLACK

WHITE TO

WHITE

MTG. BRACKET

GREEN

J-BOX GREEN

MOUNTING

BRACKET

WHITE

GREEN

BLACK

MOUNTING

PLATE

CHAIN

GREEN BRACKET

GROUND WIRE

WIRE NUT(3)

(NOT SUPPLIED)

STEP #6

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
