701 Millennium Blvd., • Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2004, 08/04 revision, All Rights Reserved - Printed in U.S.A
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .01635200
Ins
tru
ctio
nS
he
et
4
5
6
7

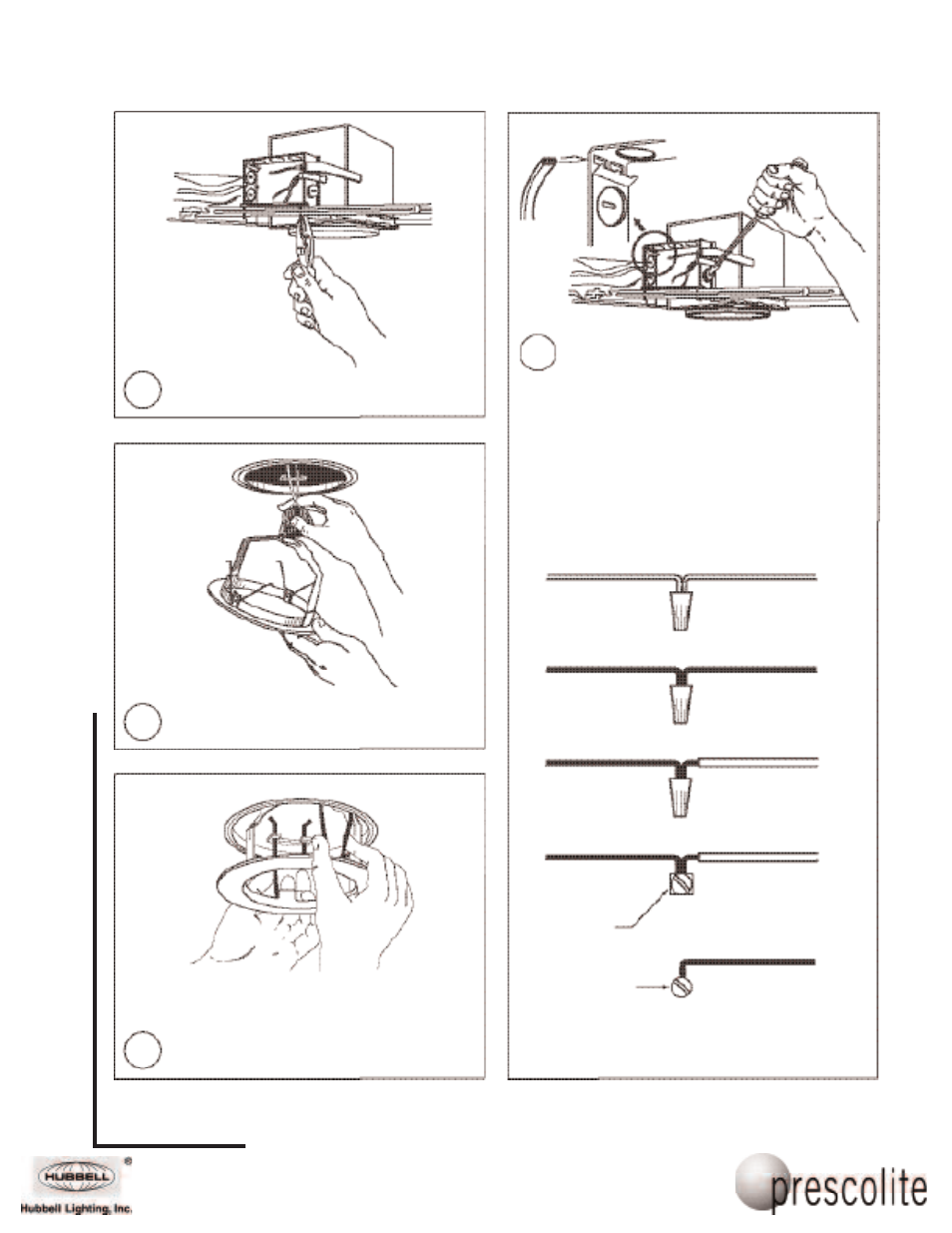

Twist ends of support brackets with pliers to
secure position of housing along bar hangers.
Wire to supply leads.
For Non-Metallic Sheathed Cable (Romex):
Remove appropriate rectangular knockout. Push
cable through pryout and past cable clamp.
For Metal Conduit: Remove appropriate round
pryout and connect conduit to junction box with
proper connector.
Make electrical splices as shown below. Push
splices back into junction box and replace cover.
Snap socket into trim bracket.
Insert torsion springs into housing
brackets and push trim up into housing.
WHITE SUPPLY WHITE FIXTURE
WIRE WIRE
BLACK SUPPLY BLACK SUPPLY
WIRE WIRE
BARE OR GREEN BARE OR GREEN
GROUND WIRE
FROM SUPPLY
FIXTURE GROUND
WIRE
BARE OR GREEN BARE OR GREEN
GROUND WIRE
FROM SUPPLY
FIXTURE GROUND
WIRE
FIXTURE GROUND
WIRE
BARE OR GREEN
MOUNTING SCREW
FROM GROUNDED
METAL OUTLET
BOX ONLY
GREEN GROUND
SCREW
OR
OR
