Instruction

Sheet

www

.prescolite.com

Prescolite T

ollFree T

echnical Suppor

t

1.888.PRS.4TEC

Hours: 8am - 5pm ET

701 Millennium Blvd, Greenville, SC 29607

With representatives offices in principal cities throughout North America.

Copyright 2008, 12/19/08, All Rights Reserved - Printed in U.S.A.

Part No ....................................................... 93021227

Sheet 1 of 2

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and

instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and

proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during

servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed

by qualified service personnel. Product must be grounded to avoid potential electric shock or other

potential hazard. Product must be mounted in locations and at heights and in a manner consistent with

its intended use, and in compliance with the National Electrical Code and local building codes. The use

of accessory equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe

condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow

items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as

this may cause an unsafe condition.

WARNING- This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other

reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.

INSTALLATION INSTRUCTIONS

LFHSQL-H13_EB SERIES

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, MAKE CERTAIN THAT THE POWER

IS OFF BEFORE INSTALLING OR SERVICING THIS FIXTURE.

1.

Assemble B6 bar hangers lock into “C” brackets following instructions on reverse side. Install the fixture in the
ceiling using B6 bar hangers and mount so that the weight of the fixture is supported by the bar hangers and/or
hanger wires secured to the building structure.

2.

Adjust the fixture so the bottom of the housing is flush with the finished ceiling, and is in alignment with adjacent
fixtures. (See Figure 3.)

3.

Determine where the supply wiring conduit will enter the Main J-Box, and attach it in conformance with the
National Electric Code.

4.

Remove the Main J-Box Cover plates, connect the power supply leads, black to black (line), and white to white
(common). Connect the ground wire to the green ground wire in the Main J-Box. Re-install the Main J-Box cover
plates.

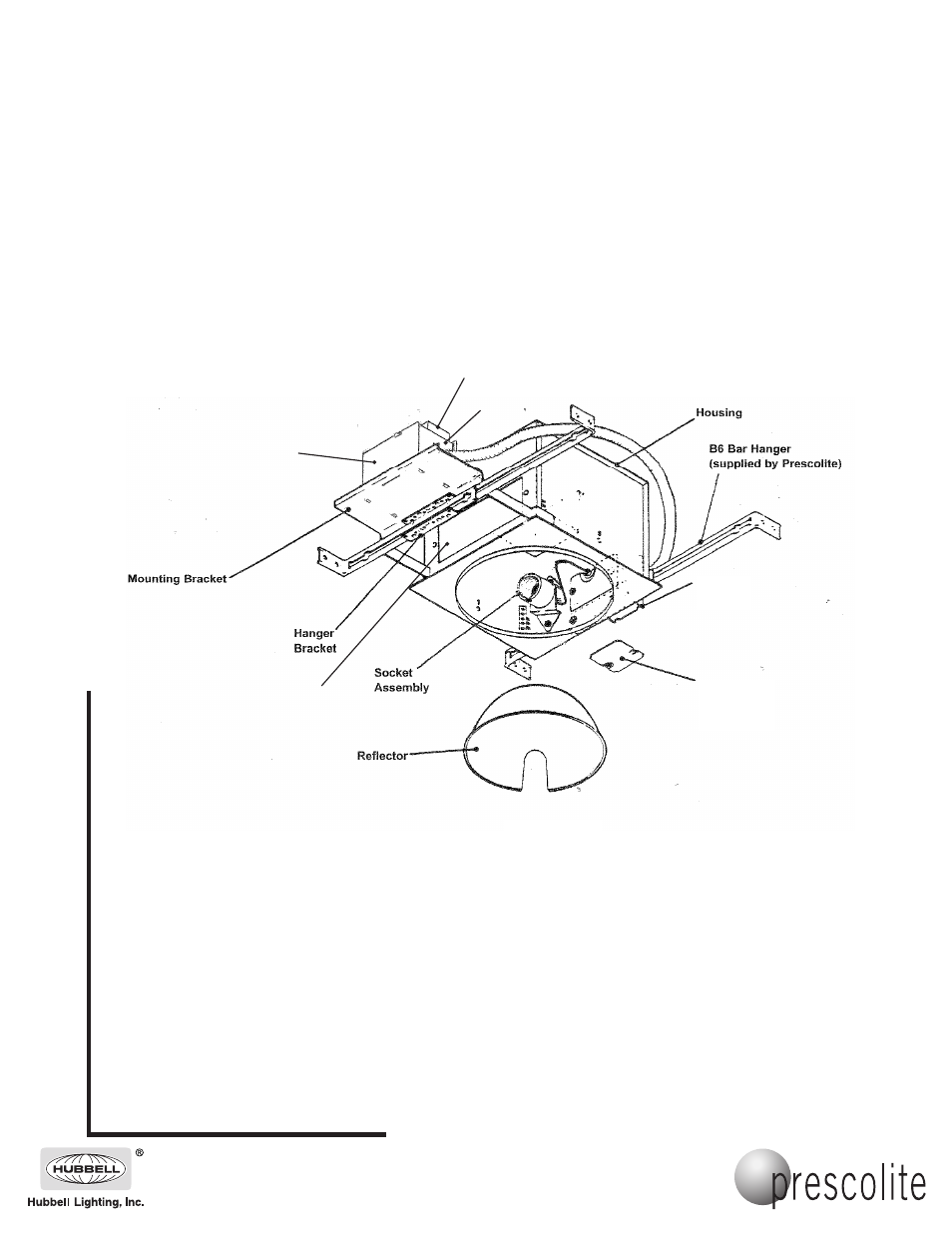

Main J-Box Cover (2)

Ballast

Main
J-Box

Access Door

Auxiliary
J-Box Cover

Auxiliary
J-Box

Figure 1
