Prescolite Recessed HID User Manual

Instruction sheet, Installation instructions recessed h.i.d

Instruction

Sheet

www

.prescolite.com

• Prescolite

TollFree

Technical Support

1.888.PRS.4TEC

• Hours: 8am - 5pm ET

101 Corporate Drive • Spartanburg, SC 29303

With representatives offices in principal cities throughout North America.

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05064500

Instruction

Sheet

INSTALLATION INSTRUCTIONS

RECESSED H.I.D.

CAUTION:

To avoid electrical shock, be sure power supply is turned off before installing or servicing this fixture. Check

ballast for correct wattage, voltage and lamp type.

1. Install the fixture in the ceiling (see back) using bar hangers placed in the hanger brackets as shown. This fixture should be

mounted in such a manner so that the weight of the fixture is supported by the bar hangers and/or hanger wires secured to the

building structure.

2. Adjust the fixture so the bottom of the plaster flange is flush with the finished ceiling line. Accomplish this with the adjustment

screws securing the hanger brackets on either end of the fixture.

3. Remove J-Box cover plate. Remove appropriate knockout and assemble appropriate connector for the supply wire used. Connect

ground wires to green ground leads. Connect white (common) to white (leads). Connect power supply (line) to black lead(s).

Reinstall J-Box cover.

WARNING: DO NOT pinch wires between J-Box/ballast cover and J-Box. Consult a Qualified Electrician for all other

options that require other wiring configurations.

4. Install the ballast -

FE Ballast Installation: The ballast and housing are shipped separately, and the housing is factory wired for 277 VAC. If the

supply voltage is 277 VAC, no adjustment is required. For supply voltage of 120 VAC, disconnect the prewired 277 VAC

connector from the thermal protector and reconnect it to the 120V connector. Voltage connectors are identified as follows:

120 VAC - black wire

277 VAC - blue wire

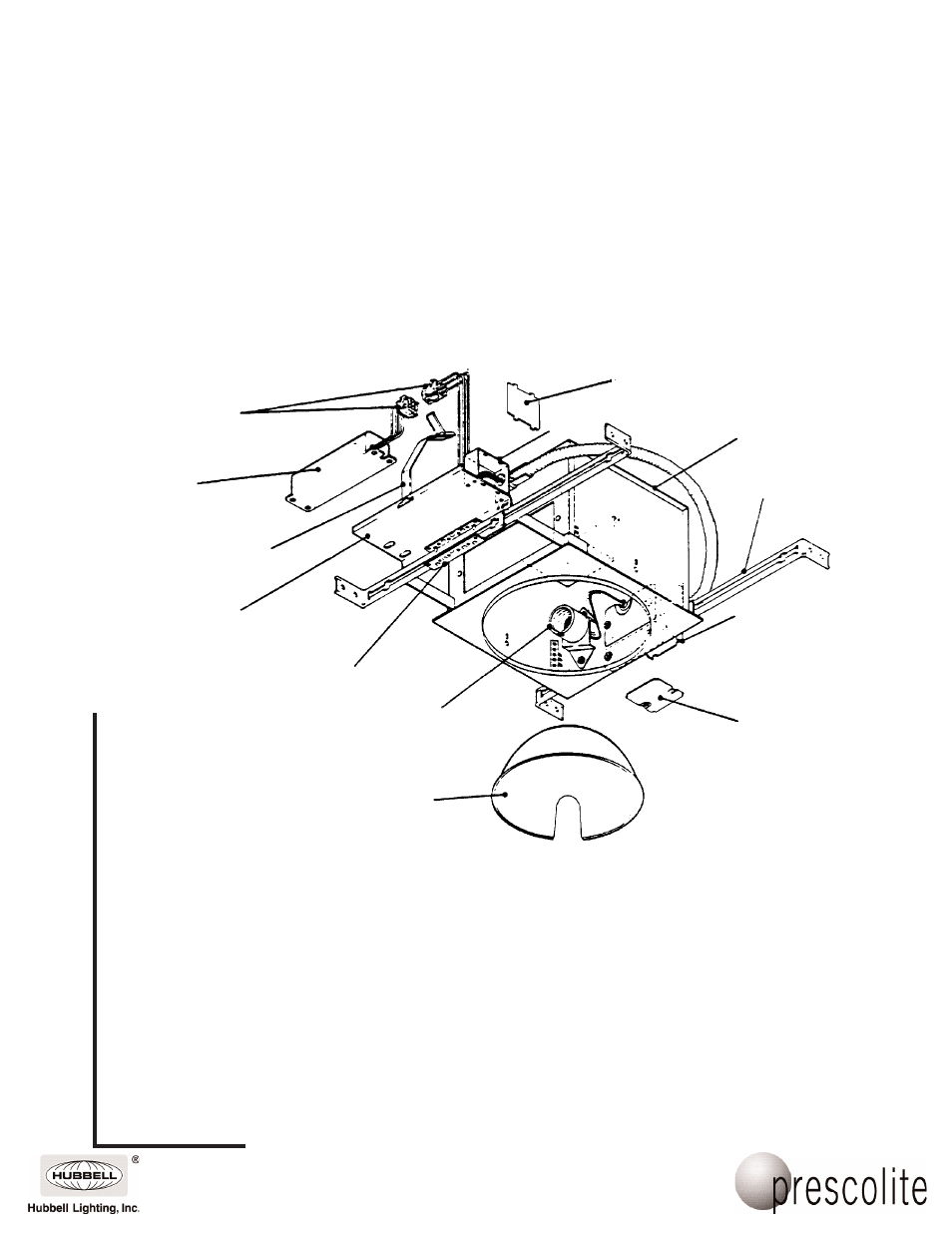

Mate-N-Lock

Connectors

J-Box Cover

(removed for clarity)

Housing

B6 Bar Hanger

(supplied by Prescolite)

J-Box

Cover

Reflector

Socket

Assembly

Hanger

Bracket

Mounting Bracket

Ballast Retaining

Strap

FE Ballast

J-Box

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
