INSTALLATION INSTRUCTIONS
QUARTZ RESTRIKE DCB
Housing with Quartz Restrike Option - (Factory Wired):
Install housing and ballast, and select the proper voltage connector for your supply voltage per Instruction Sheet
provided with the housing and ballast.
FE or Silent-
Pak Ballast
Trim Ring
Reflector
Wire Nuts (ByOthers)
(DCB Option Only)
DCB Conduit
Assembly
A-Line Reflector Type Housings:

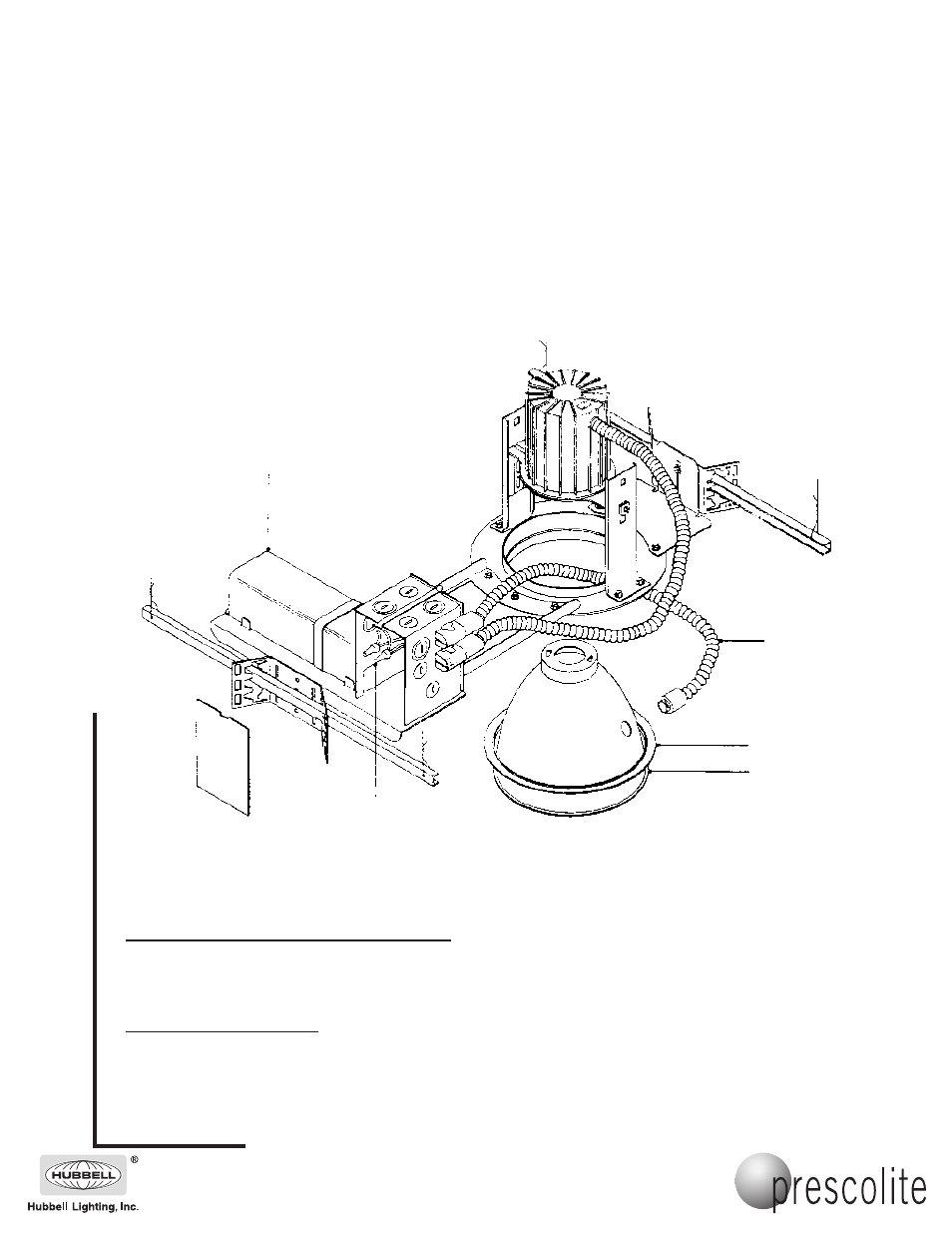

1. After the housing is installed, extend the DCB conduit assembly down thru the housing aperture as shown.
2. Place the end of the cast socketholder thru the 7/8" dia. hole in the side of the reflector. Secure it in position by pushing the retaining
clip onto the detents on the end of the socketholder from inside the reflector. (See illustration on other side.)
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
