Instruction

Sheet

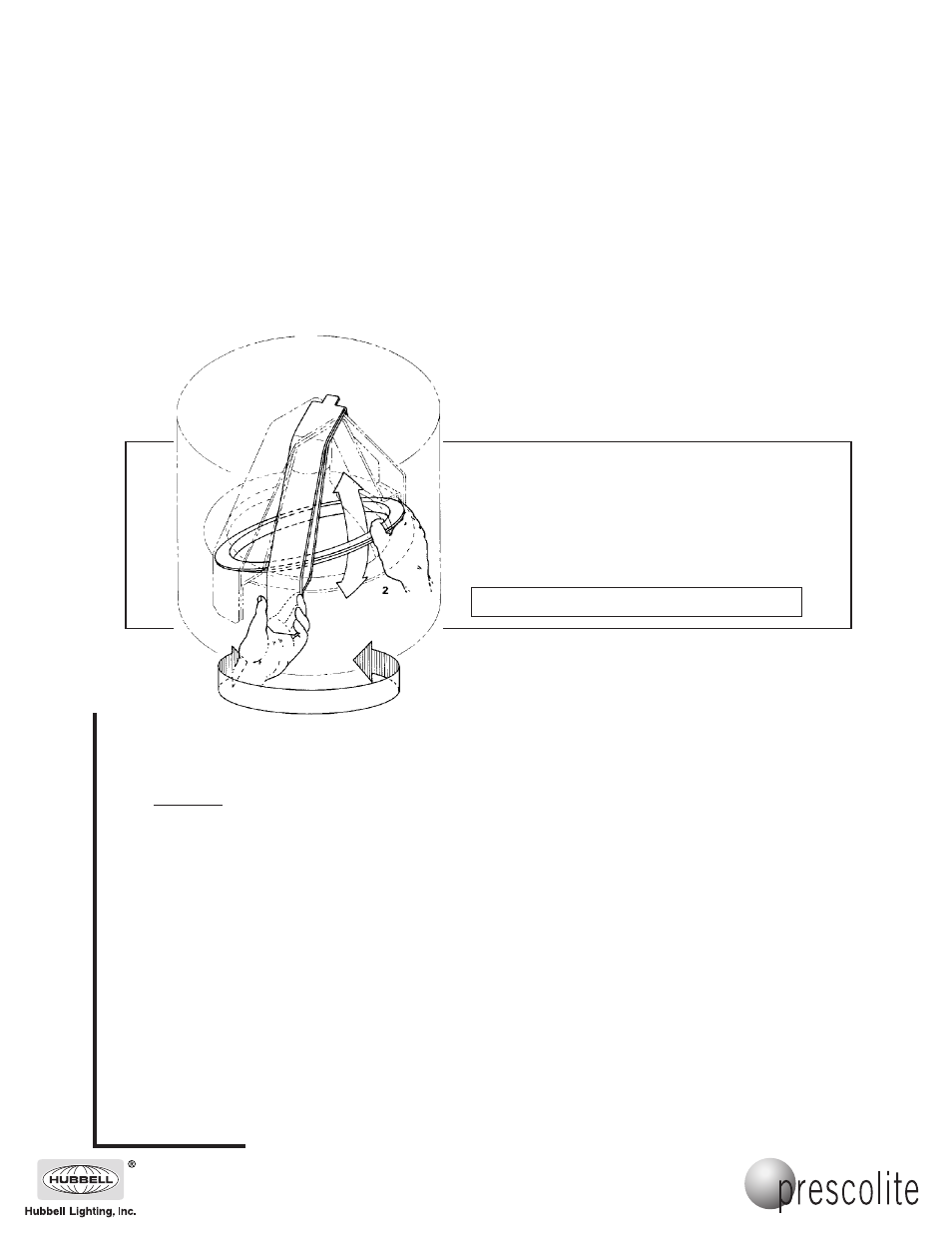

AIMING THE LAMP

Aiming can be accomplished with or without trim installed.*

1. Grasp pivot adjustment ring and rotate about center of fixture

(up to 345°).

2. While still grasping ring, push or pull ring forward or backward

until the proper lamp aiming is achieved (up to 40° in either

direction).**

*For R-40 lamp trim must be installed before aiming.

**Up to 35° in either direction for R-40 lamp.

NOTE: Use caution in aiming R-40 lamp to avoid

contact between lamp and trim ring.

CAUTION:

Do not attempt to modify or rewire factory-installed wiring on the fixture. Safety and proper

operation of the fixture depend on the integrity of the wiring.

3. Remove J-Box cover plate. Remove appropriate knockout and assemble

appropriate connector for the supply wire used. Connect ground wires to green

ground leads. Connect white (common) to white (leads). Connect power supply

(line) to black lead(s). Reinstall J-Box cover.

WARNING: DO NOT pinch wires between J-Box/ballast cover and J-Box.

Consult a Qualified Electrician for all other options that require other

wiring configurations. If fusing is required, a field-installed module is

available (module is cartoned separately).

4. Install trim and correct lamp.
