INSTALLATION INSTRUCTIONS

CAT NO. 1371 & 1375

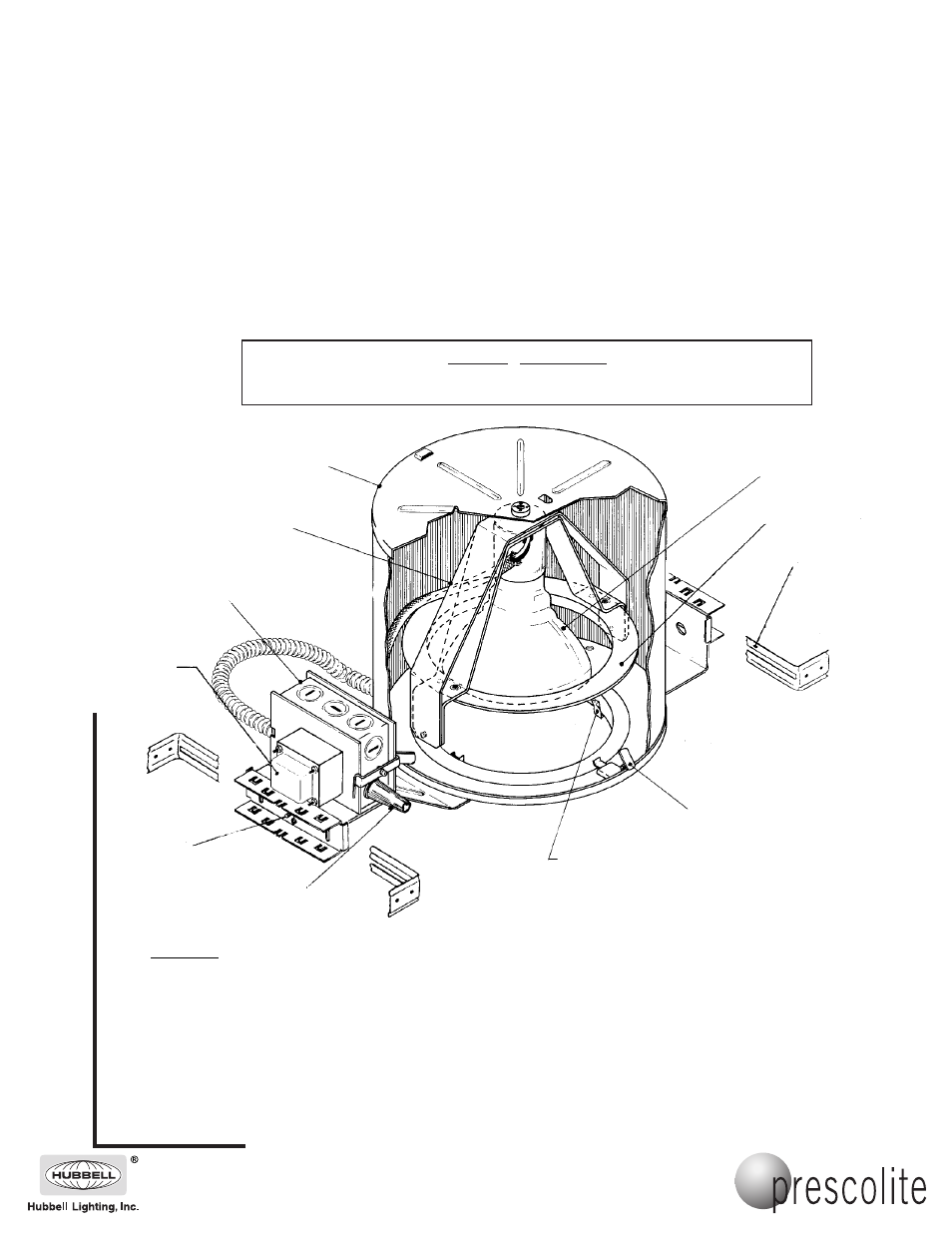

Housing

Pivot Adjustment

Ring

Trim Retaining Clip (3)

Housing Clip

J-Box

Lamp

(by others)

Adjustment

Screw (2)

Transformer

(277/120 Volt

version only)

Thermal Protector

Adjustable

Bar Hanger

Rotation/Pivot

Yoke

CAUTION:

To avoid electrical shock, be sure power supply is turned off before installing or servicing this fixture.

WARNING - RISK OF FIRE:

Do not install insulation within three (3) inches of fixtures sides, wiring compartment or top of fixture

in such a manner to entrap heat.

1. Refer to instruction sheet No. 463 (included) to assemble the bar hangers, install

and adjust the housing.

2. Adjust the fixture so the bottom edge of the plaster flange is flush with the finished

ceiling line. Accomplish this using the adjustable screws securing the mounting

brackets on either end of the fixture.

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
