Instruction

Sheet

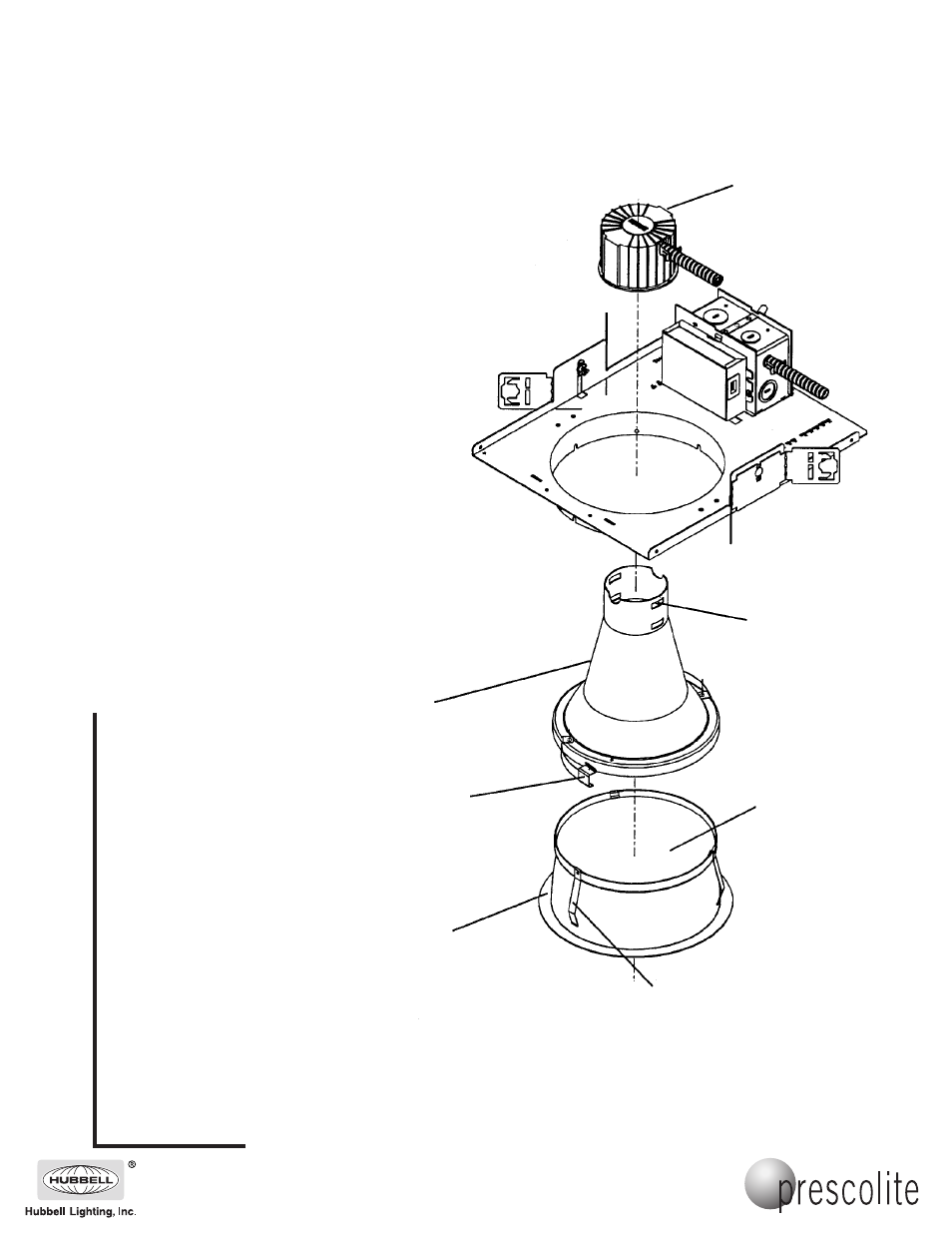

Upper

Reflector

Slots

Lens

Install the Housing Per Instructions on Page 1
1. Reflector Istallation, 2-Piece Reflector:

Install

the reflector after all ceiling installation and

finishing work is complete. Separate the upper and

lower reflectors by disengaging the two reflect or

clamps. Apply thumb pressure up and outwards to

release the clamps. With the heatsink and conduit

extending through the plaster flange aperture insert

the ends of the heatsink spring into upper reflector

neck in alignment with slots, push the heatsink

down to the desired position. Place the heatsink

spring in the upper set of slots for a 70 watt lamp

and the lower set of slots for a 57 watt lamp.
Note: The reflectors for the 9" CFT970EB housing

have only one set of slots.

2. Install the lamp(s).
3. Re-assemble the upper and lower reflectors with

the reflector clamps.

4. Push the assembled reflector up into the plaster

flange until the flange on the reflector is flush

against the finished ceiling. Allow the three reflector

springs to retain the reflector against the ceiling.

Reflector

Clamp (2)

Lower

Reflector

Spring (3)

Heatsink
