Prescolite CFT970EB - Manual

Instruction
Sheet
www
.prescolite.com
• Prescolite
TollFree
Technical Support
1.888.PRS.4TEC
• Hours: 8am - 5pm ET
101 Corporate Drive • Spartanburg, SC 29303
With representatives offices in principal cities throughout North America.
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155690100
Instruction
Sheet

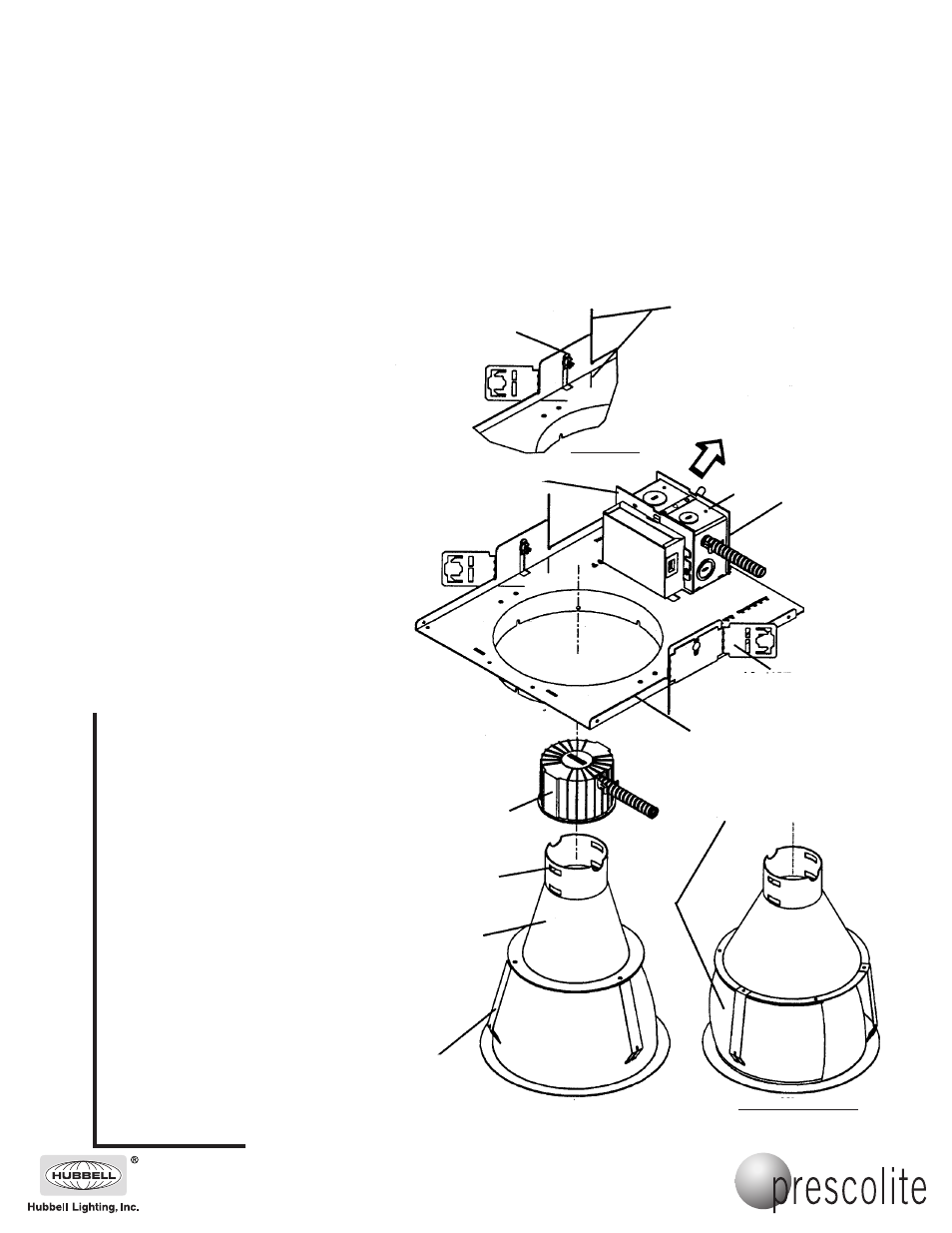

INSTALLATION INSTRUCTIONS
CFT857EB, CFT870EB & CFT970EB
HOUSINGS & REFLECTORS
Plaster
Flange
Reflector
Heatsink
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER
OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.
1. Bend brackets as shown in Detail”A”. Install the
fixture in the ceiling using mounting channel or
bar, (by others), placed in the adjustable mount-
ing brackets. Mount the fixture in the ceiling so
that the weight of the fixture is supported by the
mounting channel or bar and/or hanger wires
secured to the building structure. Note: Housing
orientation for wall wash applications.
2. Adjust the fixture so the bottom of the plaster
flange aperture is flush with the finished ceiling
line and in aligned with adjacent fixtures. Secure
mounting brackets by tightening wing nut on
either side of the fixture.
3. Determine where the supply wiring conduit will
enter the J-Box and attach it in conformance
with the National Electric Code.
4. Remove J-Box cover plate. Remove appropriate
knockout and assemble appropriate connector
for the supply wire used. Connect ground wires
to green ground leads. Connect white (common)
to white (leads). Connect power supply (line) to
black lead(s). Reinstall J-Box cover.
WARNING: DO NOT pinch wires between J-
Box/ballast cover and J-Box. Consult a
Qualified Electrician for all other options that
require other wiring configurations.
5. Reflector Installation: Install the reflector after
all ceiling installation and finishing work is
complete. With the heatsink and conduit
extending through the plaster flange aperture
insert the ends of the heatsink spring into
reflector neck in alignment with slots, then push
the heatsink down to the desired position. Place
the spring in the upper set of slots for a 70 watt
lamp and the lower set of slots for a 57 watt
lamp.
Note: The reflectors for the 9" CFT970EB
housings have only one set of slots.
6. Push reflector up into the plaster flange until the
flange on the reflector is flush against finished
ceiling. Allow the springs to retain the reflector
against the ceiling.
Note: Orientation of reflector for wall wash
applications.
7. Install the proper lamps (by others).
Wing Nut (2)
Kicker Goes Away From
Wall When Using Wall
Wash Reflector.
This end towards
wall for wall
wash application DETAIL “A”
Wall Wash Reflector
Mounting
Brackets are
Supplied Flat,
Bend Brackets
to align with
marks on
Flange
J-Box/Ballast Cover
J-Box
Adjustable
Mounting
Bracket (2)
J-Box Cover
Reflector
Spring (3)
Slots
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK
MAKE CERTAIN THAT THE POWER IS OFF BEFORE
INSTALLING OR SERVICING THIS FIXTURE.
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
