Installation Instructions Recessed LED Aisle Light- SLLED2

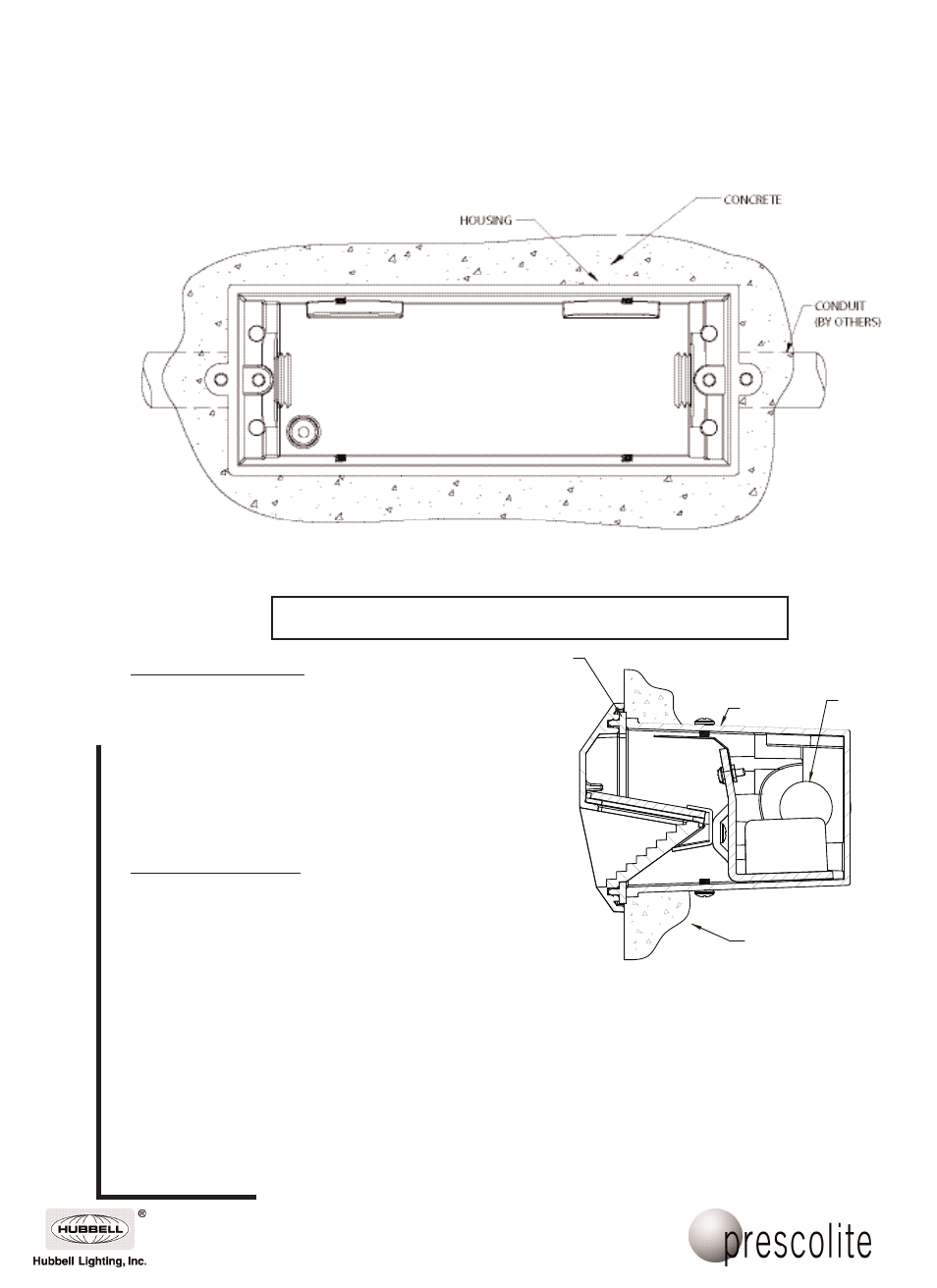

For Concrete Installation (Housing Installation)
FIG. 2
FIG. 3
For Concrete Installation
1. Select a threaded hole in housing to
be used for supply wire access.
Insert plugs into threaded holes not
being used.
2. Attach housing with conduit mounted
to concrete form, housing flange face
must be flush with concrete surface.
3. Run supply wires in accordance with
local and national electrical codes.
CONCRETE
HOUSING
CONDUIT
CONNECTION
GASKET
TYPICAL
(For wet or drywall installation see figure 4)
For Masonry Installation
1. Select a threaded hole in housing to be used for
supply wire access. Insert plugs into threaded holes
not being used.
2. Remove one masonry brick from the wall at the
desired location for the fixture.
3. Insert the fixture housing into the wall and secure in
place with mortar. Front surface of housing must be
flush with masonry surface.
NOTE: IT IS RECOMMENDED THAT THE ALUMINUM HOUSING BE
COATED WITH AN ASPHALT PAINT CONTAING ALUMINUM PIGMENT.
NOTE: PRESCOLITE CONCRETE MOUNTING BOX P/N: SLD12CMB IS TO BE USED WITH SLLED1 OR
SLLED2 HOUSINGS ONLY.
