MacDon PW7 Pick-Up Header User Manual
Page 79

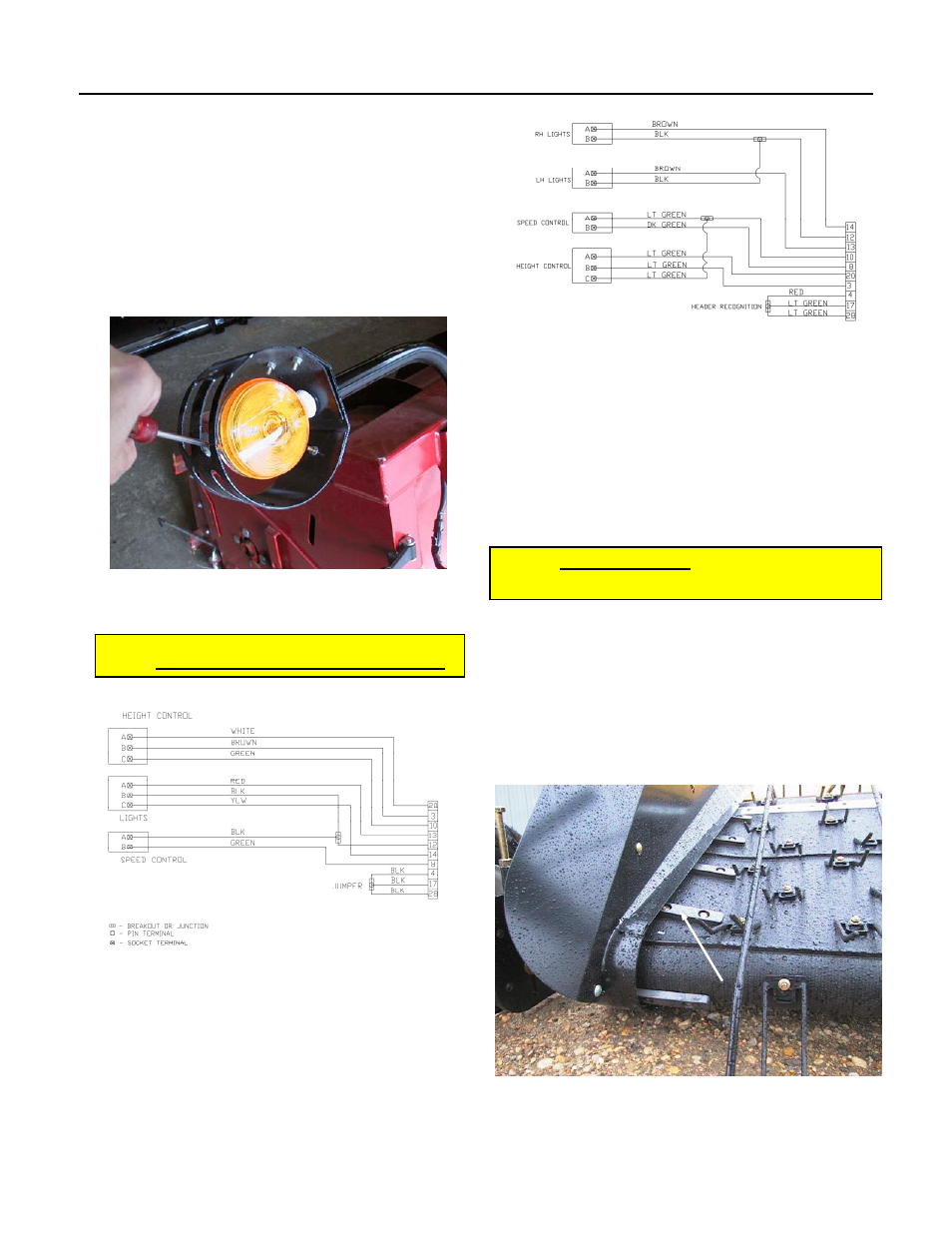

SECTION 7 – SERVICE
Form 169149
Revision E
73
a) Pry off the lens of the extremity light
with screwdriver.
b) Push in and turn the bulb
counterclockwise until it turns in its
socket. Remove bulb.
c) Replace bulb and lens.
Bulb Replacement
7.15 HEADER
WIRING
SCHEMATICS
JOHN DEERE
50 Series Wiring Harness Adapter
JOHN DEERE
60 Series Wiring Harness Adapter
7.16 BELT
GUIDES
(SwathMaster Small
Seed)
The SwathMaster Small Seed pickups are
equipped with plastic belt guides to prevent belt
wear and supply support.
The belt guides are designed to be turned around
once worn down. When both sides are worn,
they need to be replaced.
Belt Guides
P00087
D00198A
P00698
D00500
