SECTION 3 – SETUP COMPLETION
Form 169149 Revision E 15
c) Lower the lever into the engaged or locking
position. This will automatically engage the
header / feeder house locks, wiring and
hydraulics.

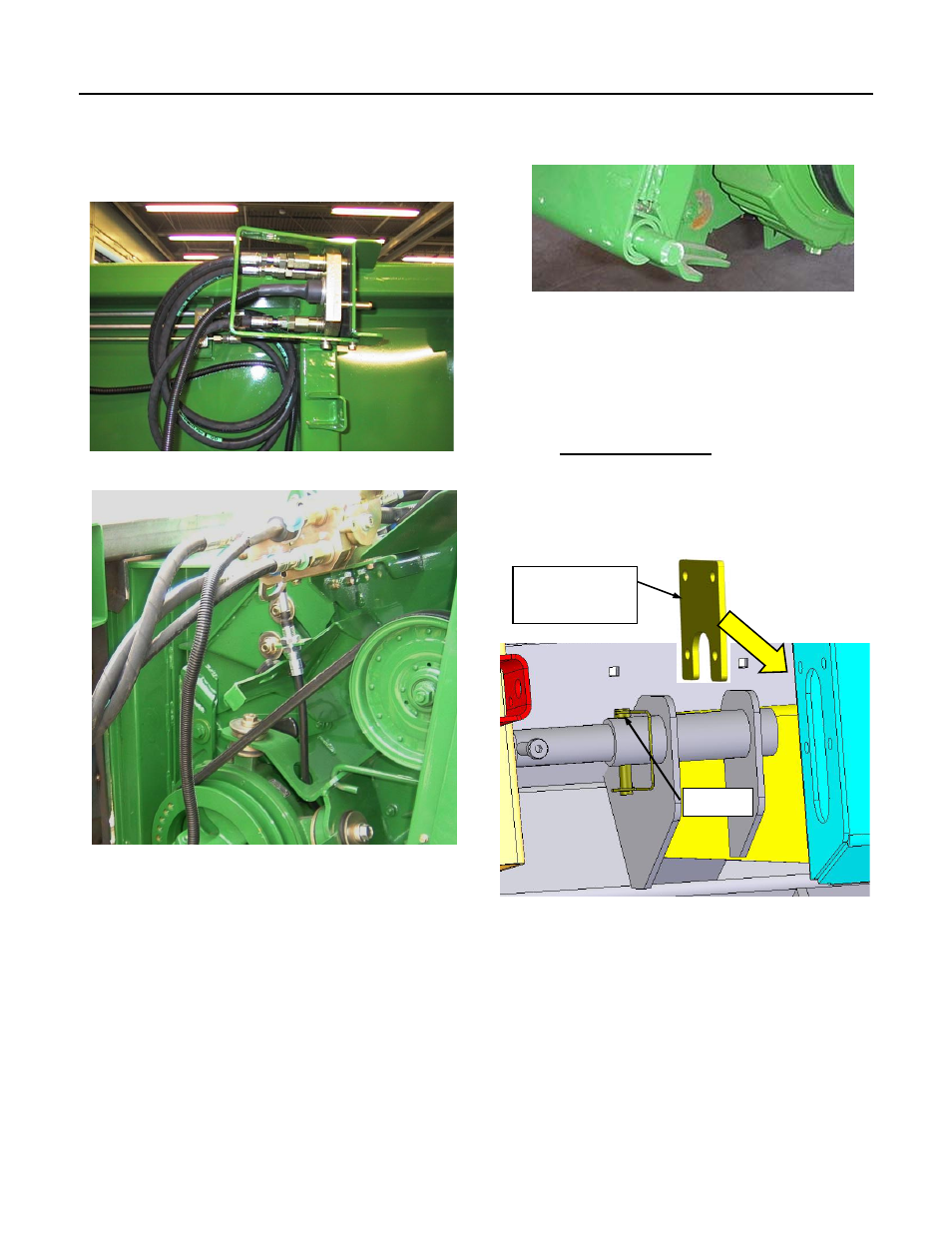

Hydraulic Coupler in Storage Bracket
Hydraulic Coupler in Field/Locked Position
To Adjust Plates:
a) Loosen the nuts of the header locking plates.
b) Position the plate so that the lower corner of
the plate rests against the pin.
c) Check that pin moves freely in and out.
d) Tighten the header adjustment plate nuts.
Lower Locking Pin
3.1.2 CLAAS / LEXION
a) Check that locking pins are in outward
position and secured with clevis pin in hole
#2.
b) Guide plates are stored in the document
holder on the back side of the header.
Install guide plates at lower slots on
standard feeder house only. Guide plates
are not required with HP (Header Pitch)
feeder house.
P00547
P00493R
P00546
Hole #2
Install Guide Plates -
Standard Feeder
Only
