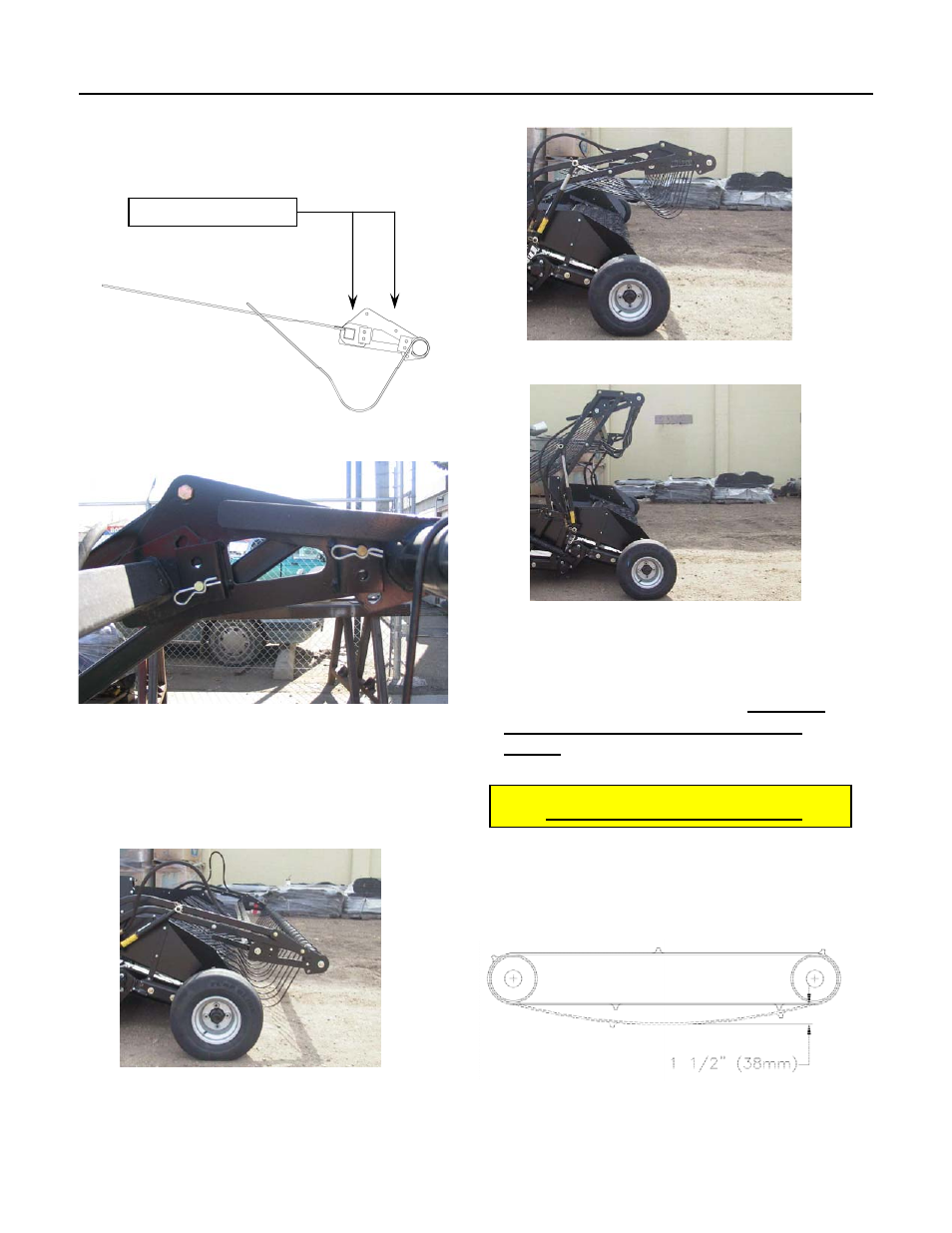

SECTION 4 - ADJUSTMENTS
Form 169149 Revision E 26
NOTE: The purpose of the fiberglass rods is
to provide a smooth, even flow of material
under the auger and to the combine.
Spring Wire and Fiberglass Rod Adjustment
Hold down Clevis and Hitch Pins
NOTE: To reduce shelling in heavy swaths, it
may be necessary to rotate the spring wires
completely out of the way.
Hold down Adjusted for Short Crops
Hold down Adjusted for Average Crops
Hold down Adjusted for Heavy Crops
NOTE: In some cases, if the hold down
assembly is moved substantially the
suspension should be retuned. Rotate the
spring wires clear before continuing to
operate.
4.5 DRAPER BELT TENSIONING
The pickup draper belts are installed and set
at the factory, however the draper belt
tension should be checked before operating.
A) Adjustment:
Draper Belt Adjustment
D00042A
ADJUSTMENT POINT
P00701
D00046
P00171
P00173
P00172
