MacDon PW7 Pick-Up Header User Manual
Page 61
SECTION 7 – SERVICE
Form 169149
Revision E
55

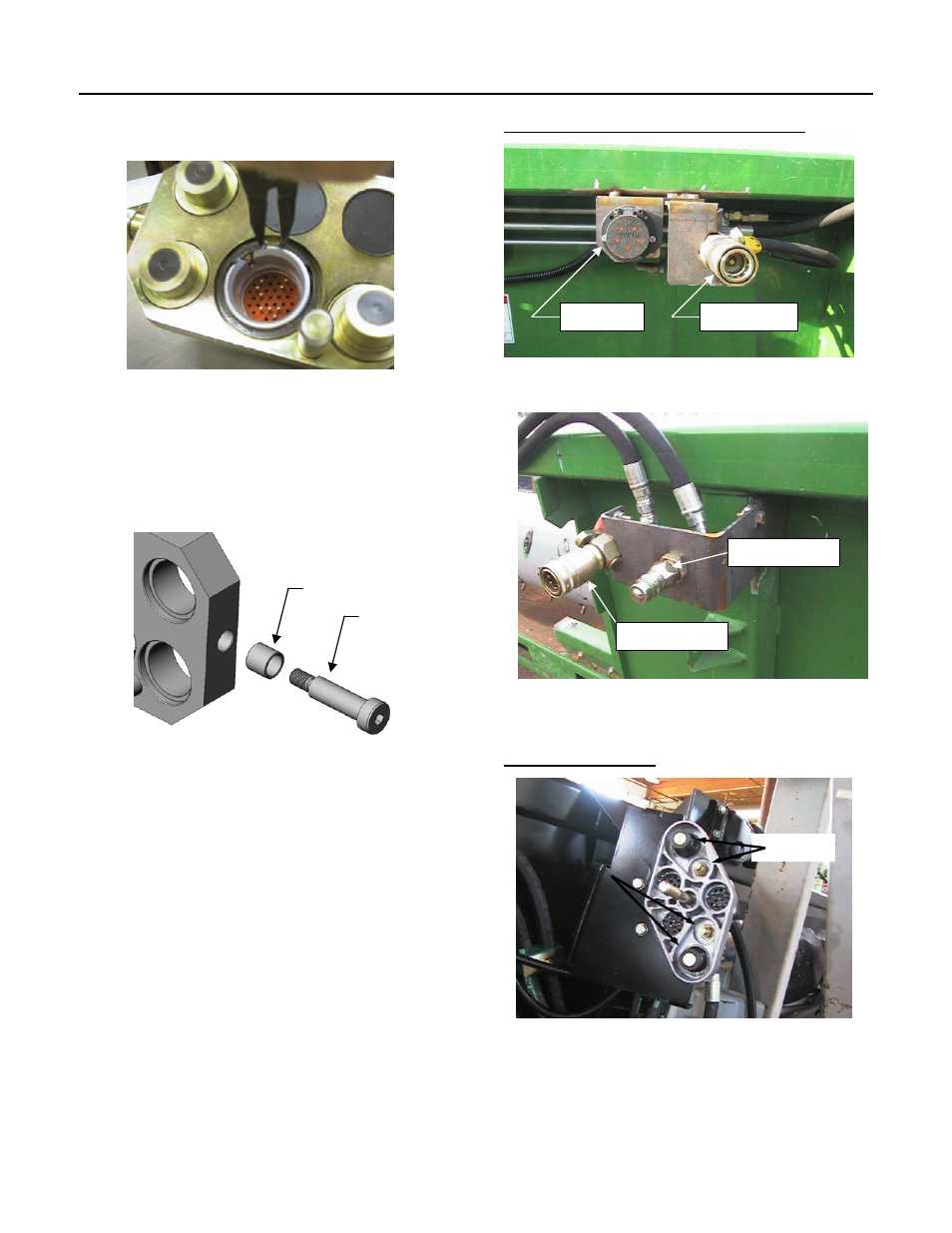

B. Electrical Connector Removal and
Installation
1) Remove snap ring.
2) Remove connector.
3) To install connector, reverse steps.
C. Removal and Replacement of Locking
Bushings
1) Unscrew shoulder bolt.
2) Remove and replace bushing.
3) Apply temporary thread locking
compound to shoulder bolt thread.
Tighten bolt to a torque of 30Nm.
4) Check bushing for free rotation.
JOHN DEERE 50 SERIES MODELS
Electrical and Hydraulic Connections
LH Side
Hydraulic Connections
RH Side
CLAAS / LEXION
Hydraulic/Electrical Connection
NOTE: When connecting/disconnecting
hydraulic fittings two wrenches should be
used.
Motor Supply
Motor Return
Bushing
Shoulder
bolt
P00587
P00586R
Hold down
Electrical
P00584
P00583
Supply
Return
