general information
Figure 8 shows the recommended steel rail tube and
adjustable disc chair configuration.
Spacing of adjustable disc chairs should be spaced at
3 foot intervals. This will allow for 1/16-inch deflection in
steel rail tube.
NOTICE
Figure 8 illustrates Multiquip's recommended way of
rail and disc chair placement. ALWAYS check with city
and state civil engineering regulations before installing
steel tube rails and disc chairs..

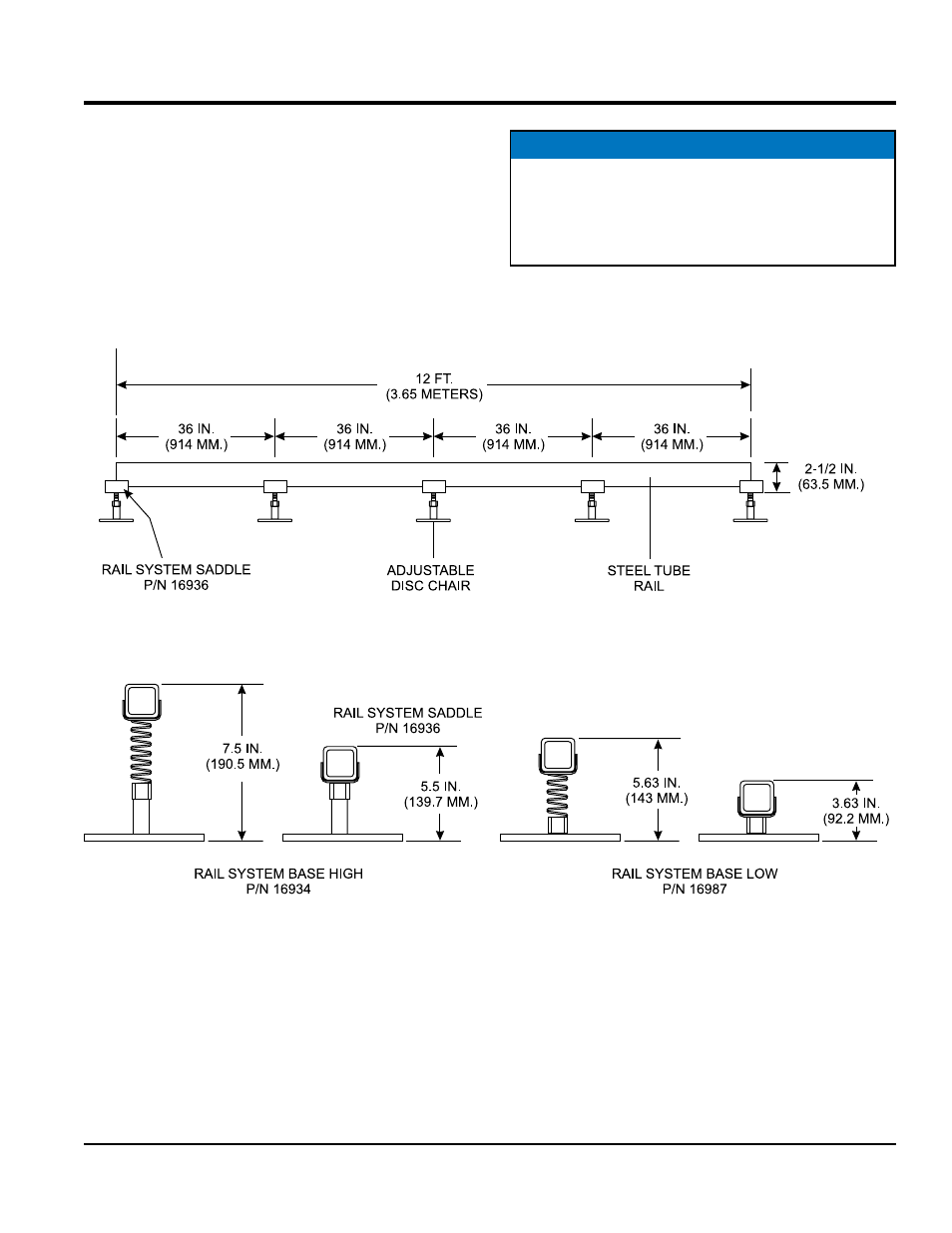

Figure 9. Rail and Disc Chair Configuration
