transPorting anD lifting ProceDUres
transportIng the sCreed
Place the screed on a flatbed truck during transportation.
Elevate tires to ensure that screed rests on rollers. Attach
suitable tie-down straps to the screed to secure it to the
truck. Route tie-down straps over strike tubes and drive
tubes as well as over trusses. See Figure 2

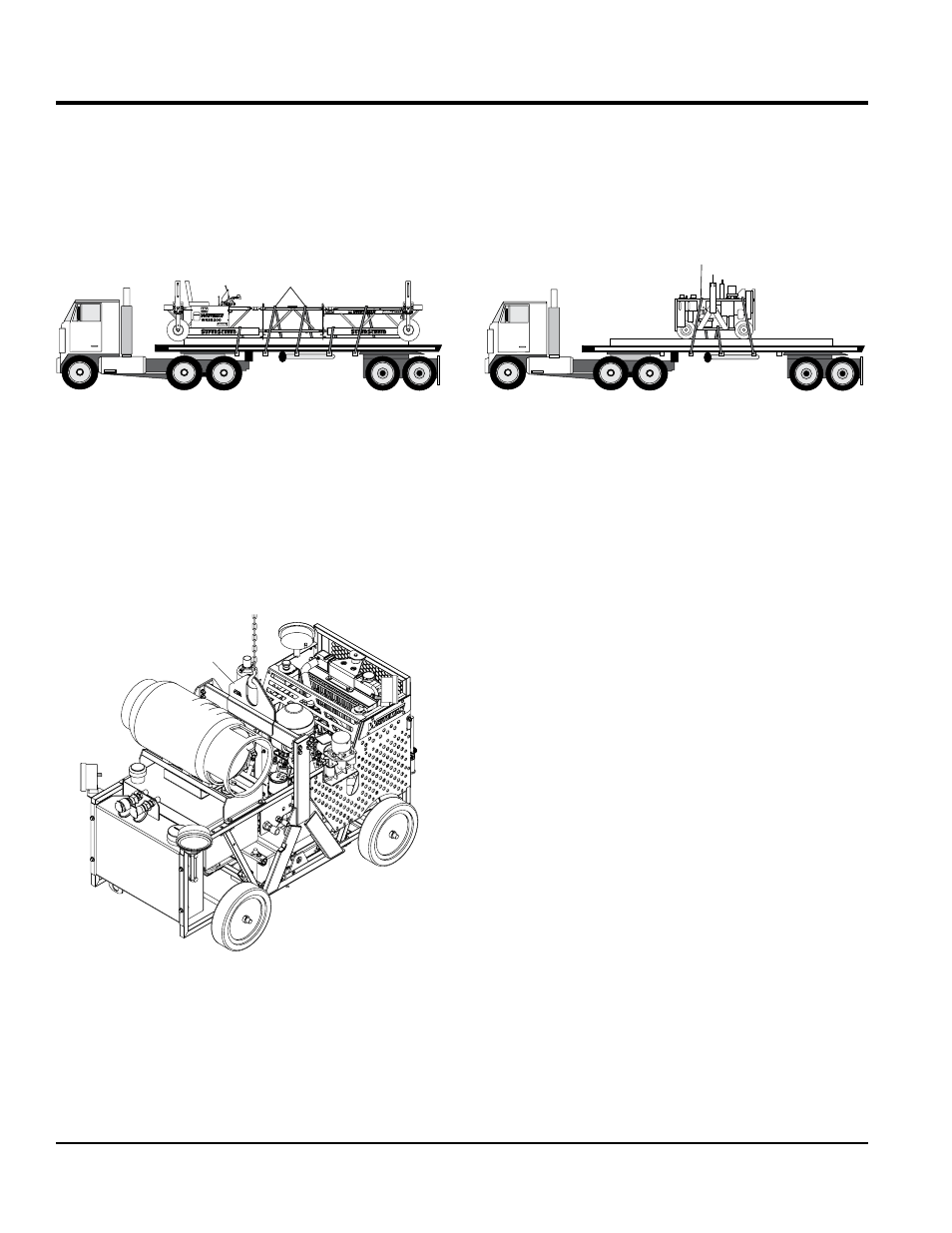

Figure 2. Screed Tie-Down Points
LIftIng the power unIt
Attach a chain, rope or strap to the lifting bail whenever
lifting of the power unit is required. Make sure lifting device
has adequate lifting capacity for lifting the power unit. See
Figure 3.
Figure 3. Lifting Power Unit
TIE-DOWN
STRAPS
TYPICAL TIE-DOWN APPLICATION
LIFTING
BAIL
transportIng the power unIt
Place the power unit on a flatbed truck during transportation.
Attach tie-down straps to power unit to prevent movement.
Route straps through and over power unit frame.
See Figure 4.
Figure 4. Transporting Power Unit
TIE-DOWN
STRAPS
TYPICAL TIE-DOWN APPLICATION
