6.6
Example project S7-300 with PROFIBUS-CP
The example project ”LenzeDriveServer” described in this chapter can be found in the sub-directory
\S7 of the DriveServer installation.
6.6.1
Hardware configuration
•
An S7-300 station is used as PLC.
•
CPU 315-2 DP, CP 342-5 and power supply PS 307 10A are configured in a RACK 300.
•
A PROFIBUS-DP sub-network with master system No. 1 (connected to the CPU) and another
sub-network with master system No. 180 (connected to the CP) are available. The drive
controllers are connected to the second master system.
•
Lenze fieldbus modules of type 2133 and 2131 are used as DP slave. These fieldbus modules
can be used for 8200 and 9300 drive controllers.
–
PROFIBUS addresses: 4 and 5 (hexadecimal)
–
Consistent communication with 8-byte parameter data and 4 process data words
(Configuration ”PAR(Kons.)+PZD(4Worte)”)

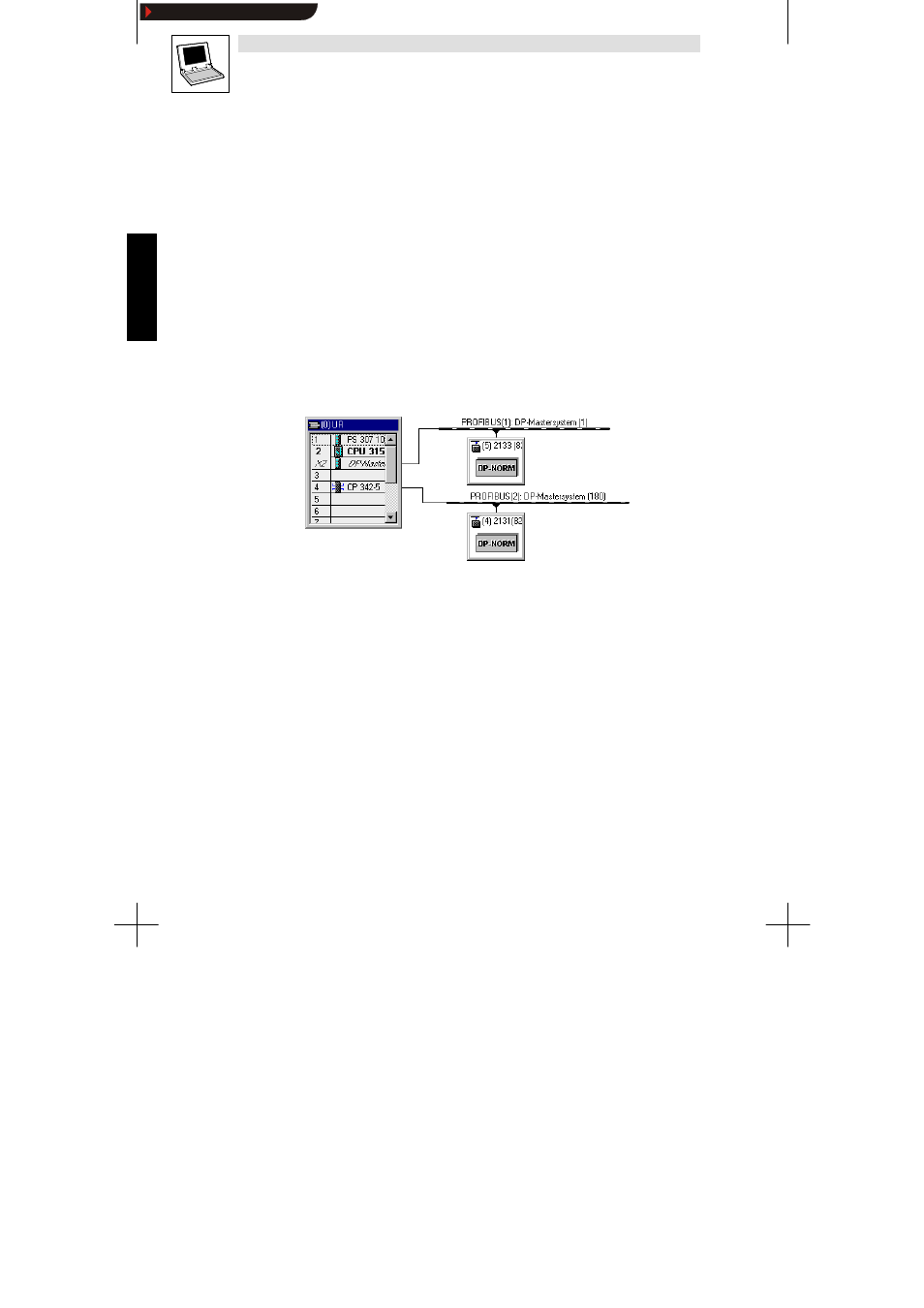

The following figure shows the hardware configuration in the Hardware Manager:
