4.2 Bus server configuration
The “S7 configuration tool” program is used for the configuration of the bus server. Upon configuration,
the PLC and the drives configured in the respective PLC program are selected:
1. Select
Programs W Lenze W DriveServer W S7 configuration tool.
2. Confirm the Lenze OPC S7 Server info dialog box with OK.
– The configuration saved last will be loaded automatically.
– If you want to create a new configuration, select File W New.
4.2.1 User interface of the S7 configuration tool
The S7 configuration tool is subdivided into two sections:
• The left side indicates the configuration entries in form of a tree, similar to the directories of
the Microsoft Explorer.
• The right side shows all Settings for the configuration entry selected from the tree.

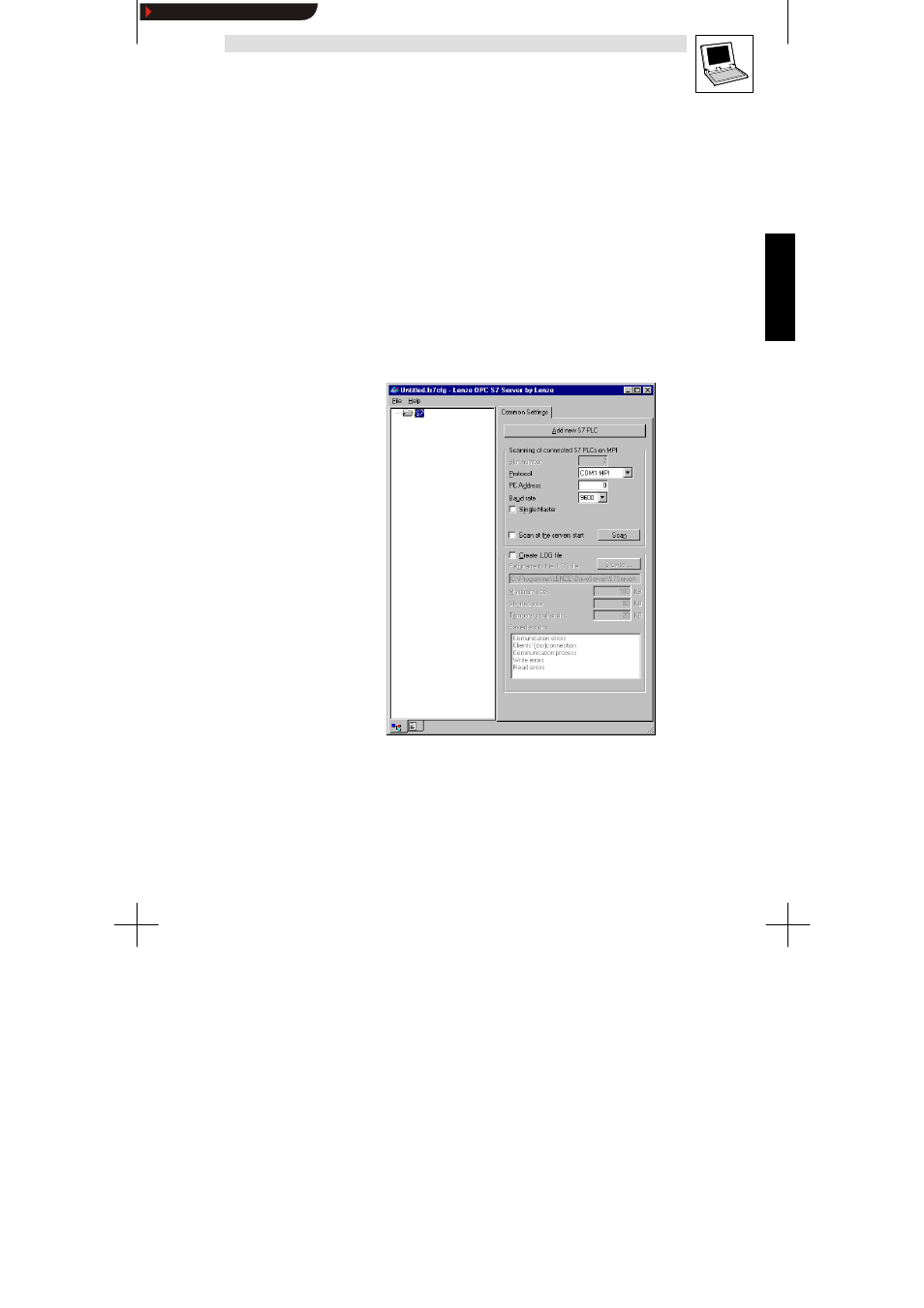

If you create a new configuration, the first visible entry will be “S7”:
