Lenze HMI for visualisation / with control technology User Manual
Page 88

Operation
Communicating via the CAN gateway function
Establishing communication using the Drive PLC Developer Studio (DDS)
l
88
LDCDS−EL100 EN 9.0
7. Set the hardware number of the EL100 communication module and the node
address of the node to be programmed.

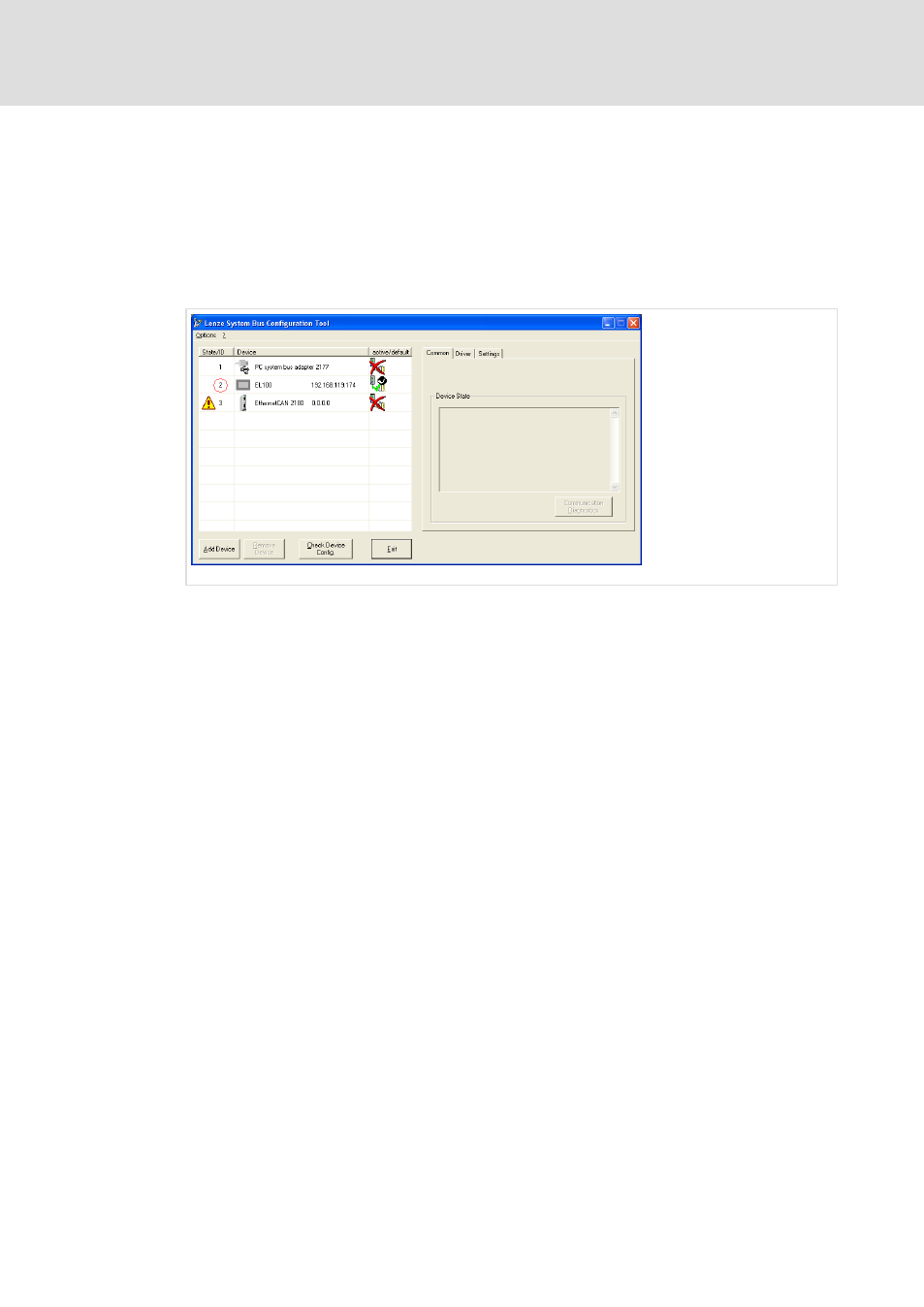

The hardware number can be found in the system bus configurator. This number is
assigned to the communication module.
If you have added several communication modules in the system bus configurator, you
must specify the number of the module via which you would like to communicate. For
this purpose, double−click the value (highlighted in red).
EL100−050
8. Please also enter the node address of the node via which you would like to access
the EL100 communication module.
Communication between the DDS and the system bus node via the communication
module has now been established.
