Commissioning
Connecting external devices
7
l
37
LDCDS−EL100 EN 9.0
7
Commissioning
7.1
Connecting external devices

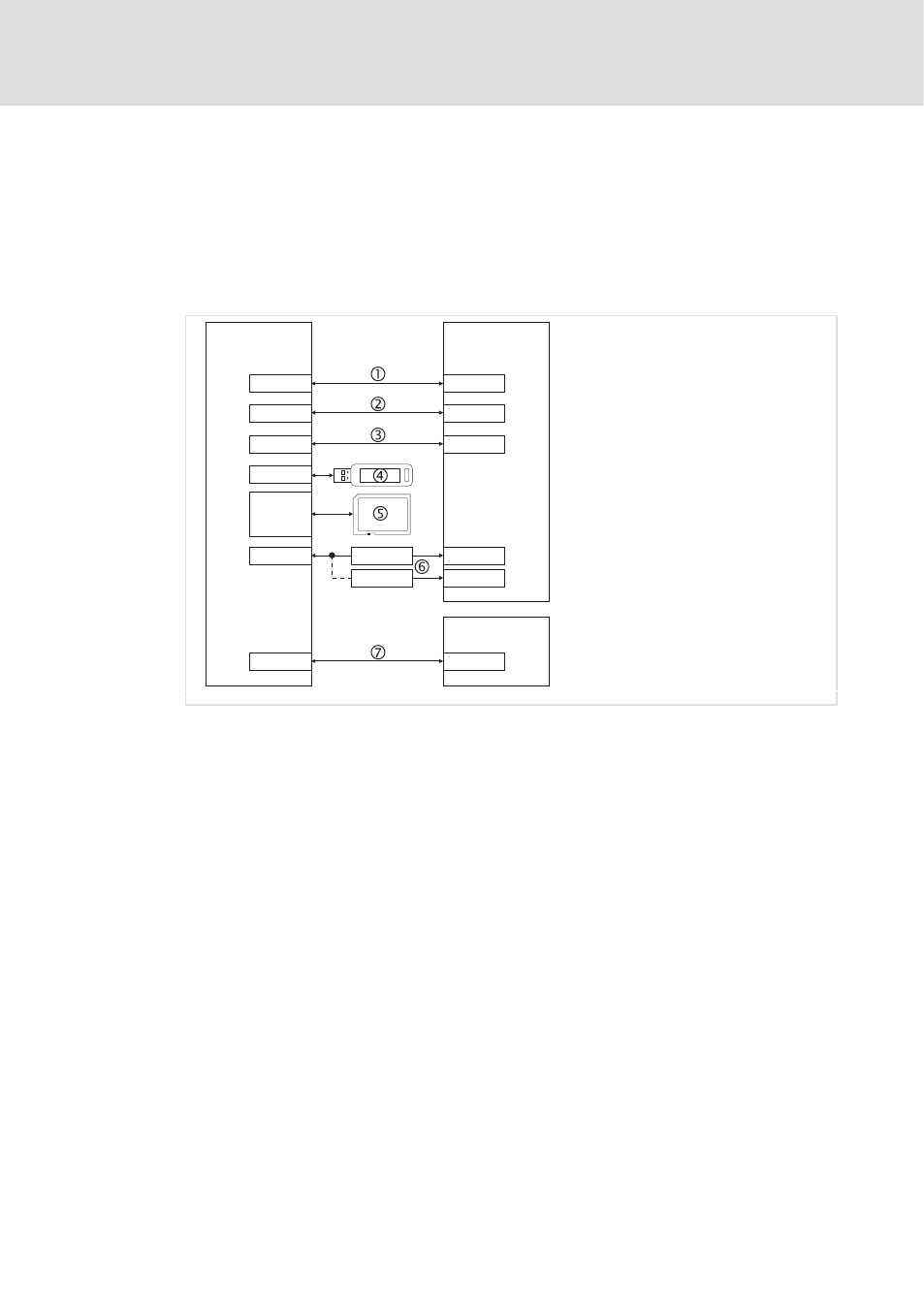

The HMI can communicate with other devices via different interfaces, e.g. to exchange
data or transfer projects:
EL 1xx
PC
Simatic S7
LAN
LAN
USB-B
1)
USB-A
USB-A
CAN
2)
MPI
2)
2177IB
2173IB
USB-A
MPI
LPT
COM1
1)
COM
SD/SDHC
EL100−016
1)
Not for EL 1xx ECO (PLC)
2)
Optionally CAN or MPI (EL 1xx ECO: CAN only)
EL 1xx « PC
Ethernet connection, e.g. via cross−link cable
EL 1xx « PC
USB connection device−host (the Microsoft
â
"ActiveSync" software must be
installed on the PC.)
EL 1xx « PC
Serial connection via serial cross−link cable
USB stick, external keyboard/mouse
SD/SDHC card
EL 1xx « PC
CAN bus connection with 2177IB (CAN to USB−A) or 2173IB (CAN to LPT
interface) PC bus adapter
EL 1xx « S7
MPI connection
