Start plc designer, Create plc program – Lenze HMI for visualisation / with control technology User Manual
Page 56

Operation
Creating a PLC sample program
Start PLC Designer
l
56
LDCDS−EL100 EN 9.0
8.3.2

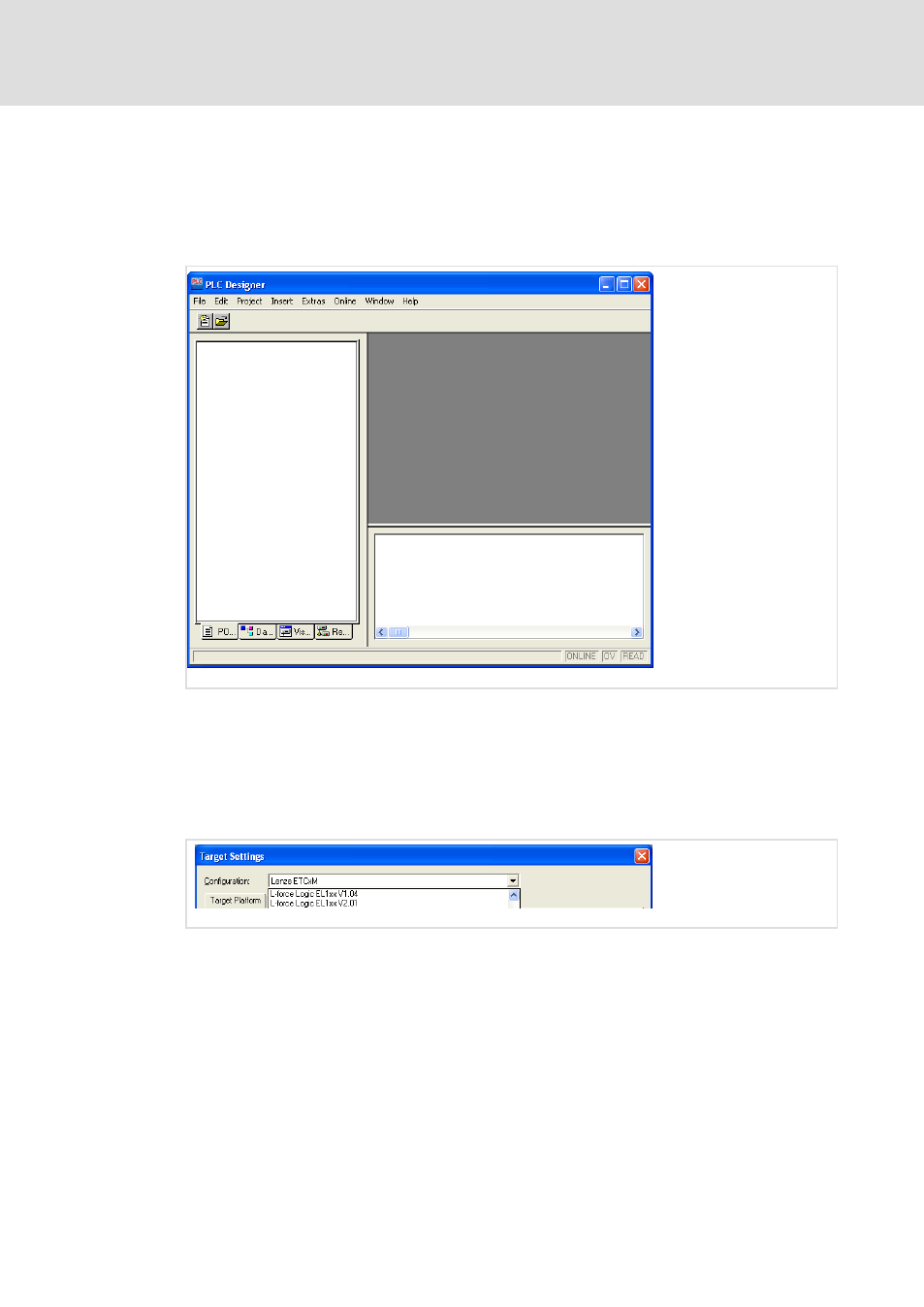

Start PLC Designer
How to proceed:
1. With a standard installation, the PLC Designer is started via Start
W Lenze W PLC
Designer Vx.x.x.x
W PLC Designer.
8.3.3
Create PLC program
How to proceed:
1. Open the menu File in the PLC Designer menu bar and select the menu item New.
The "Target Settings" dialogue will be opened.
2. Select the target system depending on the HMI used from the Configuration
selection list:
EL 1xx: L−force Logic EL1xx v1.09
EL 1xx ECO: L−force Logic EL1xx v2.06
If the target system is not available in the Configuration selection list, you can
download it from the download area of the Lenze homepage (www.lenze.com).
3. Click OK to close the dialogue.
The "Target settings" dialogue will be expanded.
