Electrical installation
Wiring
EL 1xx ECO (PLC)
l
34
LDCDS−EL100 EN 9.0
6.3.2
EL 1xx ECO (PLC)

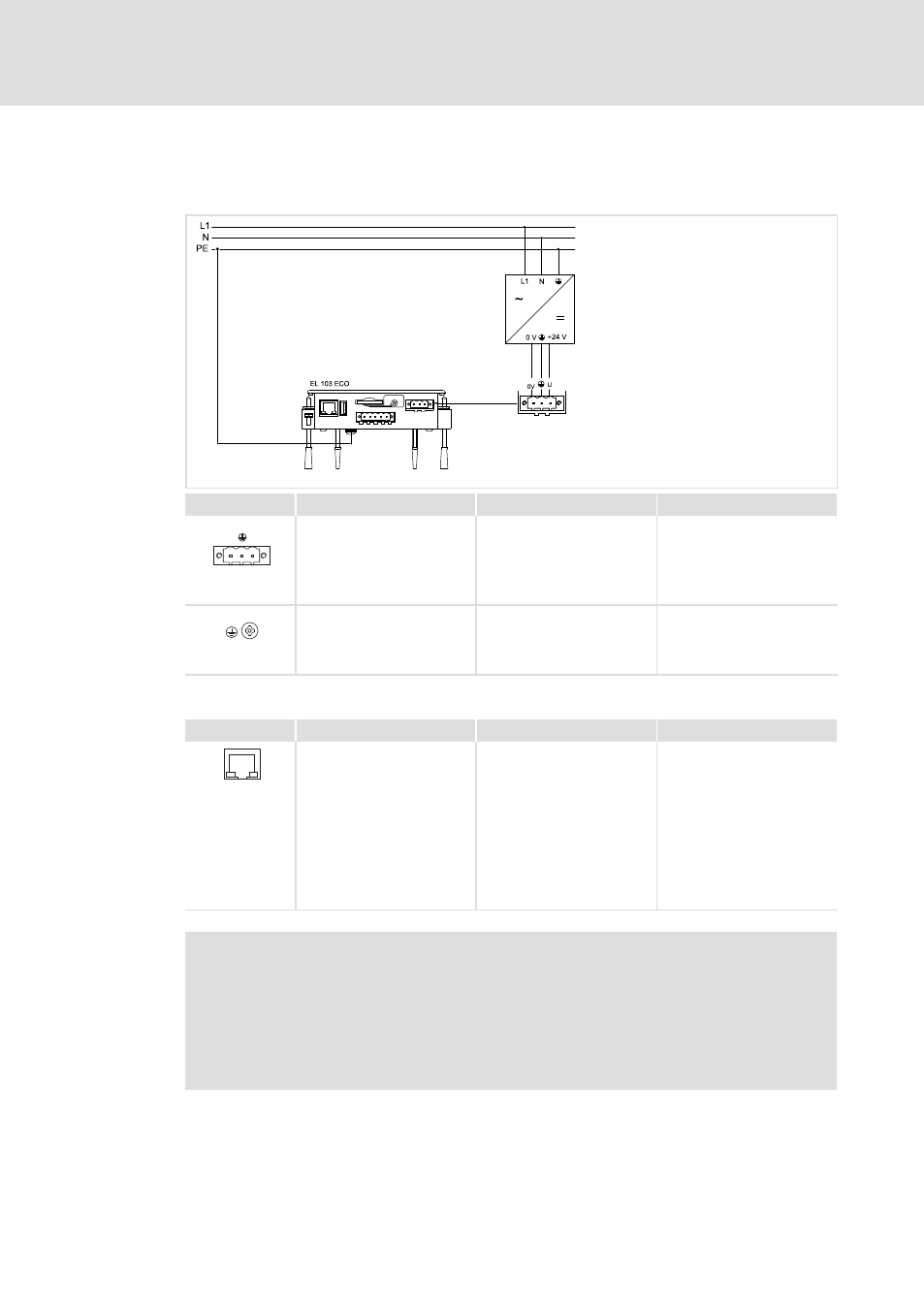

Mains connection
EL100e−005
Description
Connection type
Cable type
0V
U
DC 24 V connection
3−pole Phoenix Combicon
socket
Cable (conductor
cross−section max. 2.5 mm
2
)
with Phoenix Combicon plug,
MSTB 2.5 / 3−STF−5.08
IPC001
PE connection
Screw M4
Separate earthing conductor
(min. 2.5 mm
2
) with ring
cable lug
IPC001
Ethernet interface
Description
Connection type
Cable type
Ethernet connection
10/100 Mbps
Green LED (SPEED):
on = 100 MBPS
off = 10 Mbps
Yellow LED (LINK/ACTIVITY):
on or blinking = LINK
/ACTIVITY
off = no LINK
RJ45 socket
Network cable CAT5 S/UTP or
CAT5e S/FTP (recommended),
cable length: max. 100 m
IPC001
)
Note!
If the RJ45 plug connection is exposed to oscillating or vibrating stress:
ƒ
Use a strain relief in the immediate vicinity of the RJ45 socket.
ƒ
Select the contact surface on which the device is mounted as fixing point of
the strain relief.
ƒ
Comply with the related minimum bending radius of the cable used.
