Commissioning
Establish Ethernet connection
Activate communication between EL 1xx and VisiWinNet
â
Smart
l
40
LDCDS−EL100 EN 9.0
7.3.2
Activate communication between EL 1xx and VisiWinNet
â
Smart
The following settings are required if you wish to transmit a VisiWinNET
â
Smart project to
the EL 1xx via Ethernet. They are not required to establish a general TCP/IP connection.
How to proceed:
)
Note!
If an autostart of the Remote Access Manager is specified in the VisiWinNET
â
Control Panel Applet (
¶ 49), the VisiWinNET Remote Access dialogue is
displayed automatically after starting the HMI.
Proceed as follows if that dialogue is not displayed:
ƒ
Start
® Programs ® Windows Explorer
ƒ
Folder Flashdisk/VisiWinNET
ƒ
Double−click the VisiWinNET.RemoteAccessManager Application.
1. Activate the Commandhandler Registry in the VisiWinNET Remote Access Dialogue.

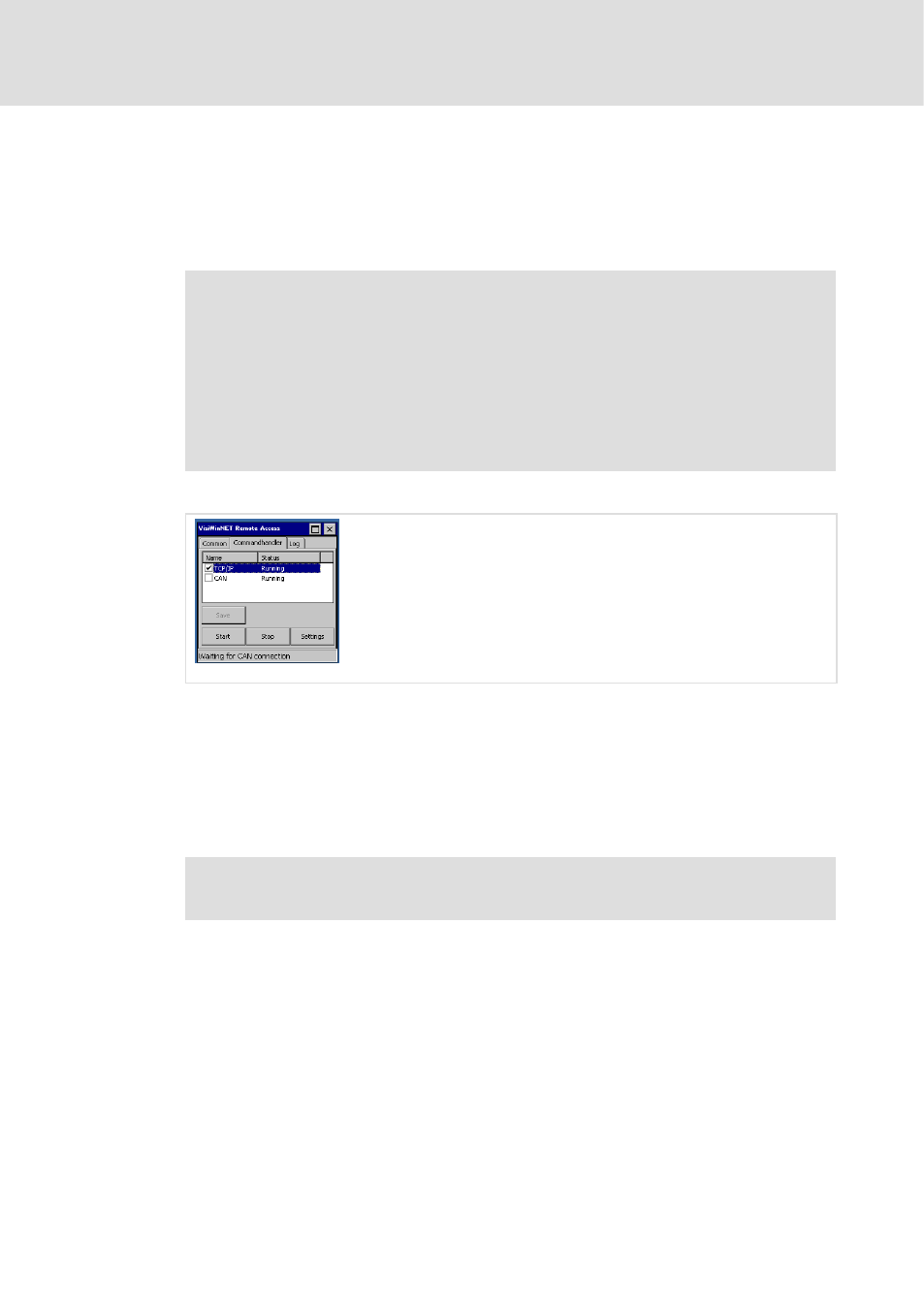

EL100−020
2. If the TCP/IP control field is selected and the status is displayed as Running,
communication has been enabled. Elsewise, proceed as follows:
3. Select the TCP/IP control field.
4. Click Start.
The status changes to Running. TCP/IP communication has been enabled.
5. Click Save to store this setting.
,
See VisiWinNET
â
Smart software manual, Getting Started, for further
information on project transmission.
