4 System description
4.1 Visualisation system structure
16
Lenze · Controller-based Automation - Visualisation · System Manual · DMS 1.5 EN · 04/2014 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

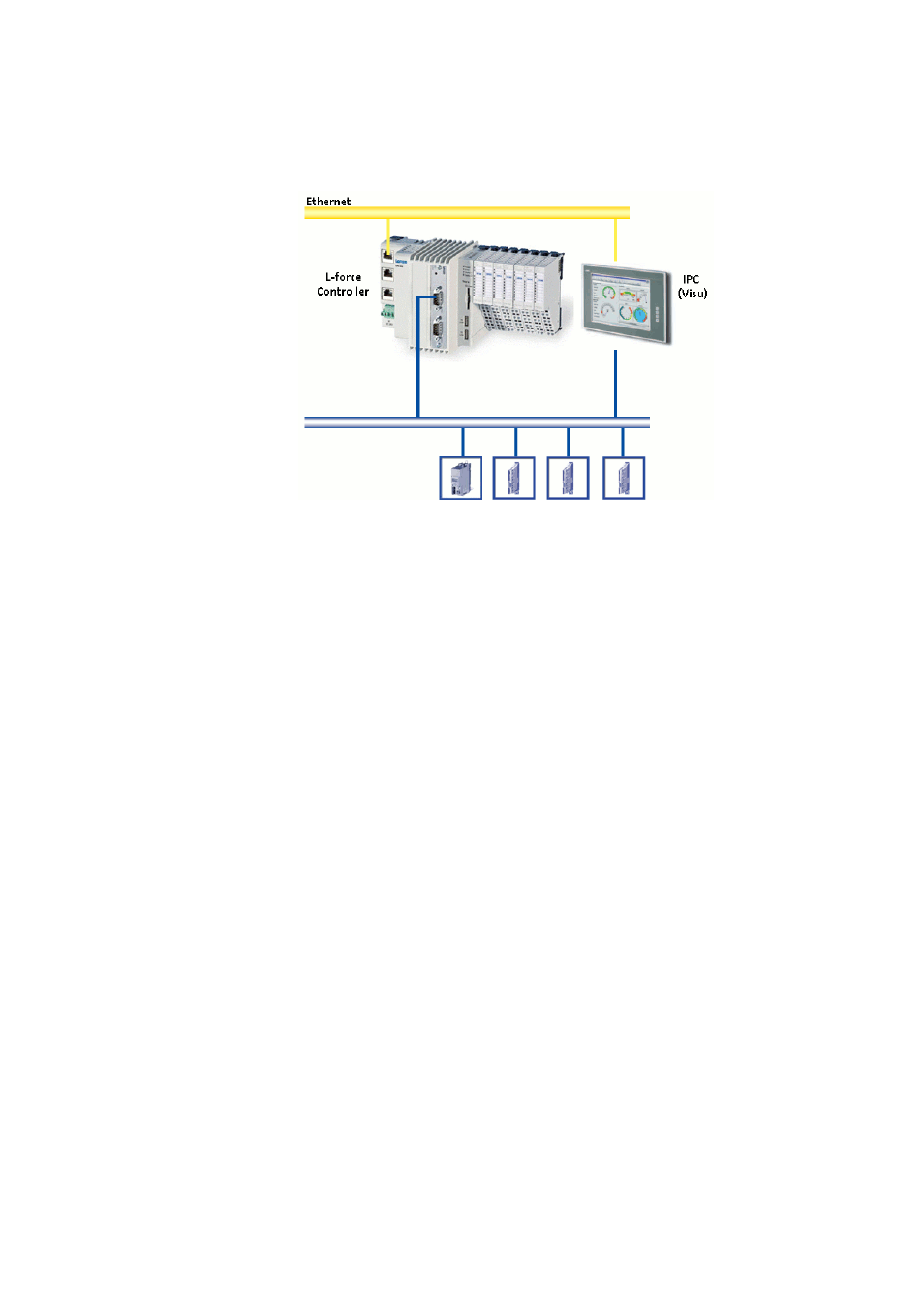

4.1.1 Stand-alone application
The control system (controller) and visualisation (Visu) run on separate controllers, respectively.
• The visualisation IPC (Visu IPC) directly communicates with an external control system and the
lower-level field devices. A fieldbus or a higher-level Ethernet network are used for
communication.
• The visualisation can access variables of the control system and (depending on the bus system)
in addition can directly access parameters of the field devices.
• For the visualisation, a Panel PC/Industrial PC Embedded Line or a control cabinet PC with an
external monitor panel can be used.
