Leica ST5020
•
The clip is now identified via the transponder signal.
Its current allocation (color - program) is displayed.
•
Press CLIP COLOR.
•
Clip color and program code are displayed on the station button.
•
Select the station (L34 in our example).
•
Press the color button containing the new color you wish to allocate to
the clip.
•
The new color and, if that color was allocated to a different station be-
fore, the station code, is/are displayed on the station button.
•
Press CONFIRM to complete the color allocation procedure.
•
As the color ‘white’ has been selected, the instrument switches auto-
matically to MANUAL PROGRAM START, where you can allocate the
desired program to the rack which is now equipped with a ‘white’ clip.
•
Once the program has been completed, you can repeat the above pro-
cedure to return the clip to its original (true) color.

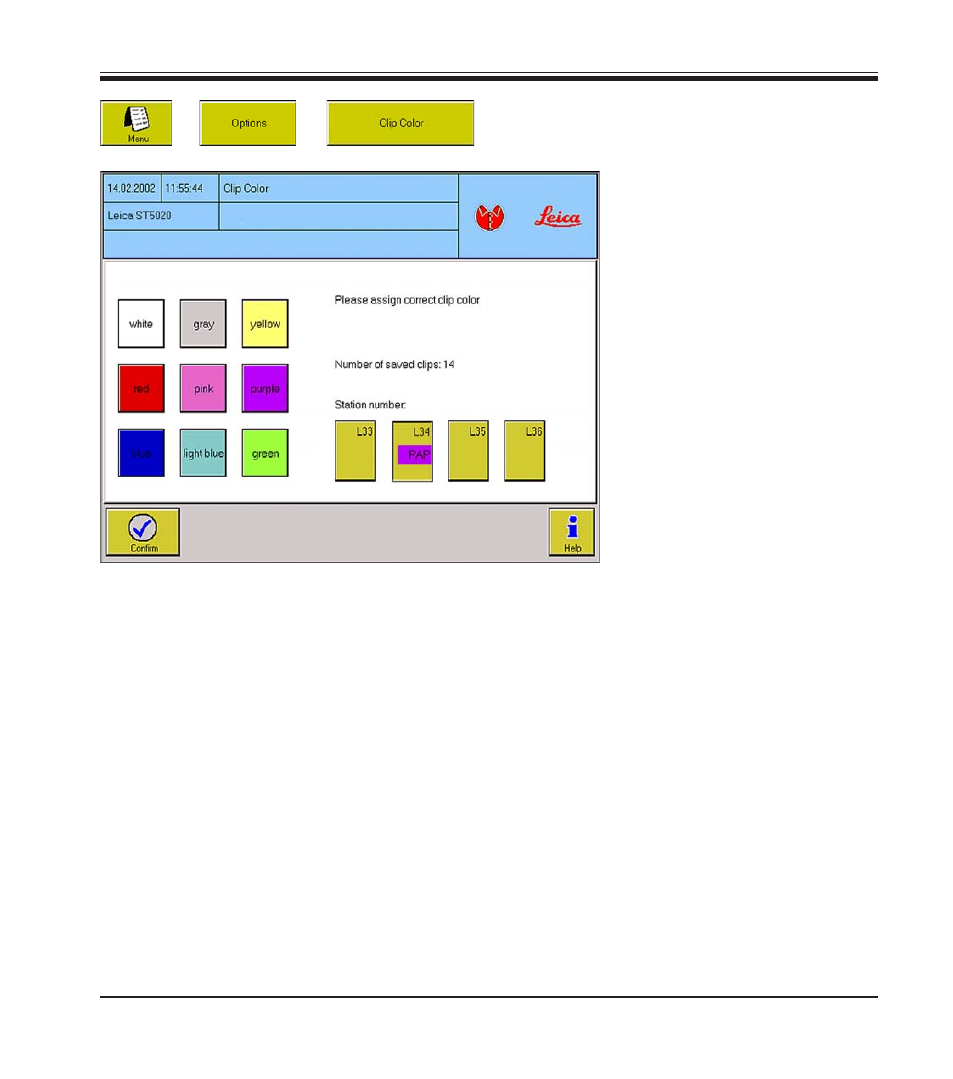

Manual color allocation
Go to OPTIONS to assign a new
color to a clip already linked to a
different color.
Example:
A purple clip currently not need-
ed needs to be defined as ‘whi-
te’, as a white clip is needed but
currently not available.
Proceed as follows:
•
Place a rack bearing the clip
the color of which you want
to redefine into any one of
the load stations and close
the drawer.
Fig. 64
→
→
↓
5.
Operation
