Setting up the instrument – Leica Biosystems ST5020 User Manual
Page 22

22
Instructions for Use, V1.9, RevD - 12/2012
•

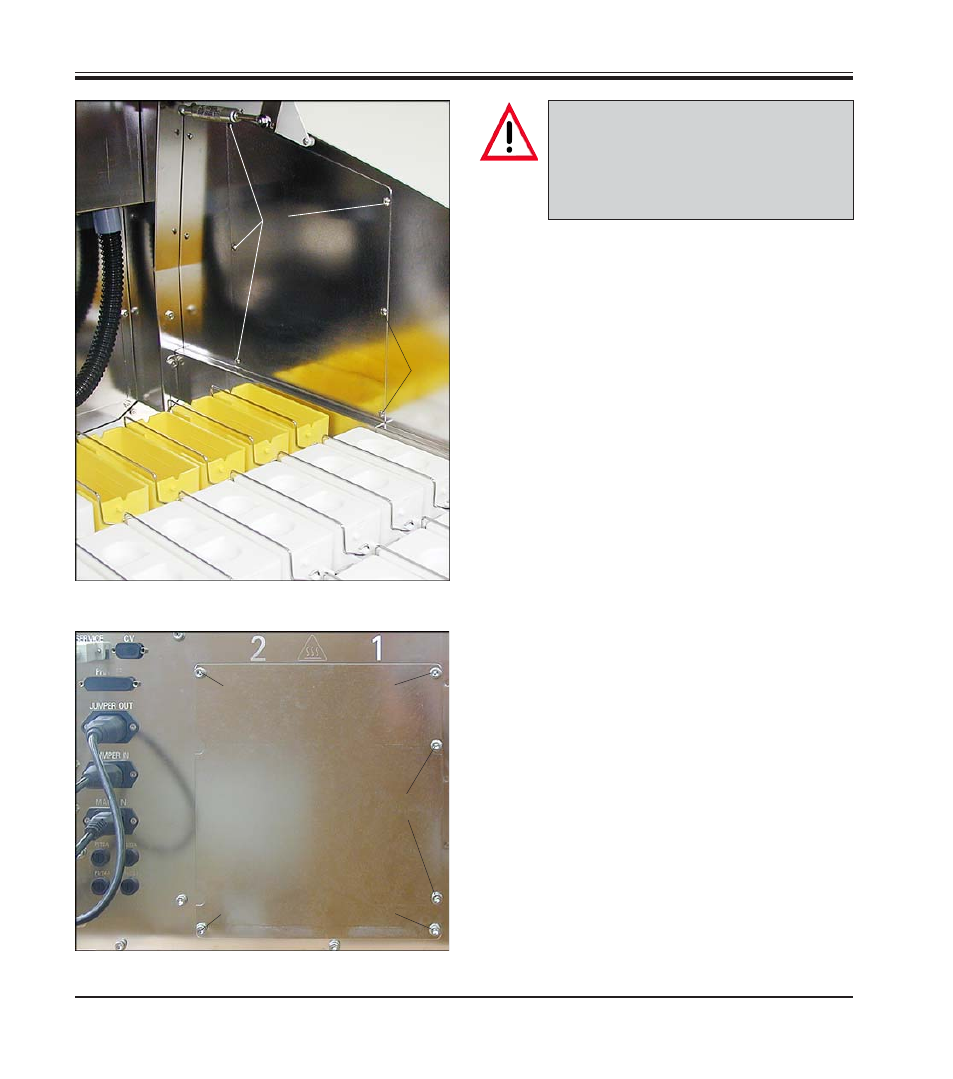

Cover panel (26) must be removed from the
right inner wall of the instrument, so that the
transfer arm can access the oven stations.
•
To do so, remove six screws (27) (Allen key,
size 2.5) and remove cover panel (26).
•
Store screws and cover panel in safe place
for further use.
Important!
Prior to taking any further installa-
tion steps, switch the instrument off
and unplug from mains.
•
Remove cover panel (28) located to the right
of the electrical connections at the rear wall
of the instrument.
•
To remove panel (28), only remove screws
(29).
Do not loosen the two screws (30)!
•
Once the oven is installed, attach cover
panel (part of oven kit delivery) (17
in Fig. 10
)
with four screws (29) in such a way that the
voltage selected is visible from the outside.
Fig. 12
Fig. 13
26
27
27
28
29
29
29
29
30
